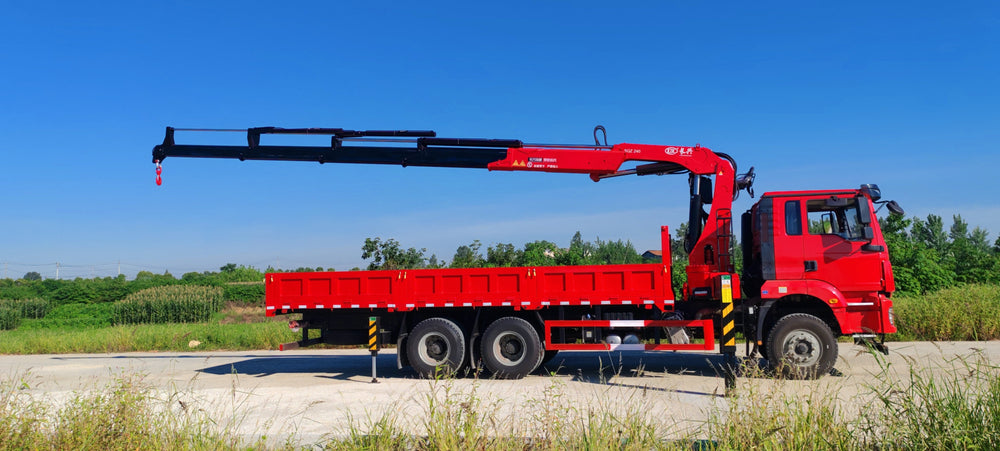

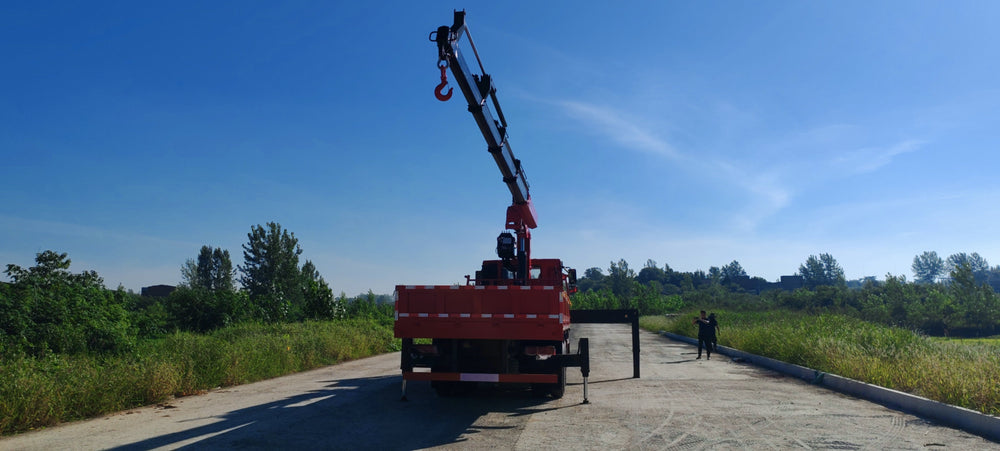

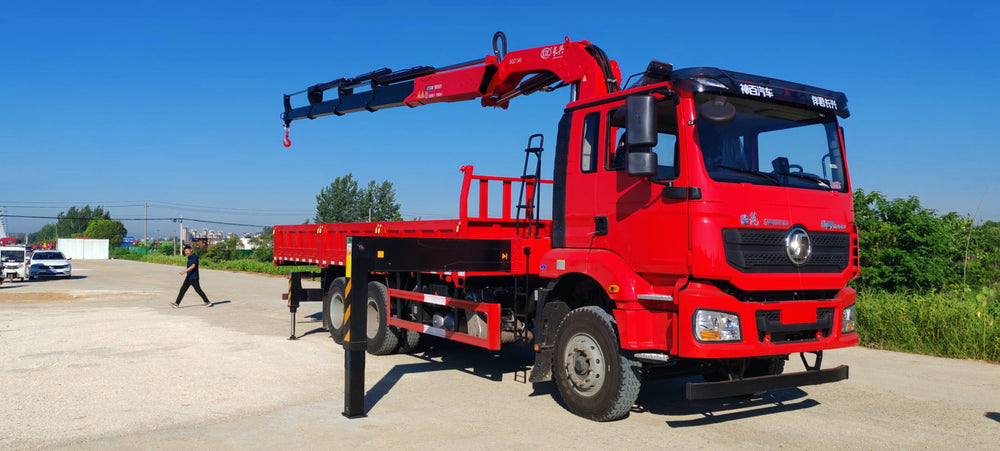

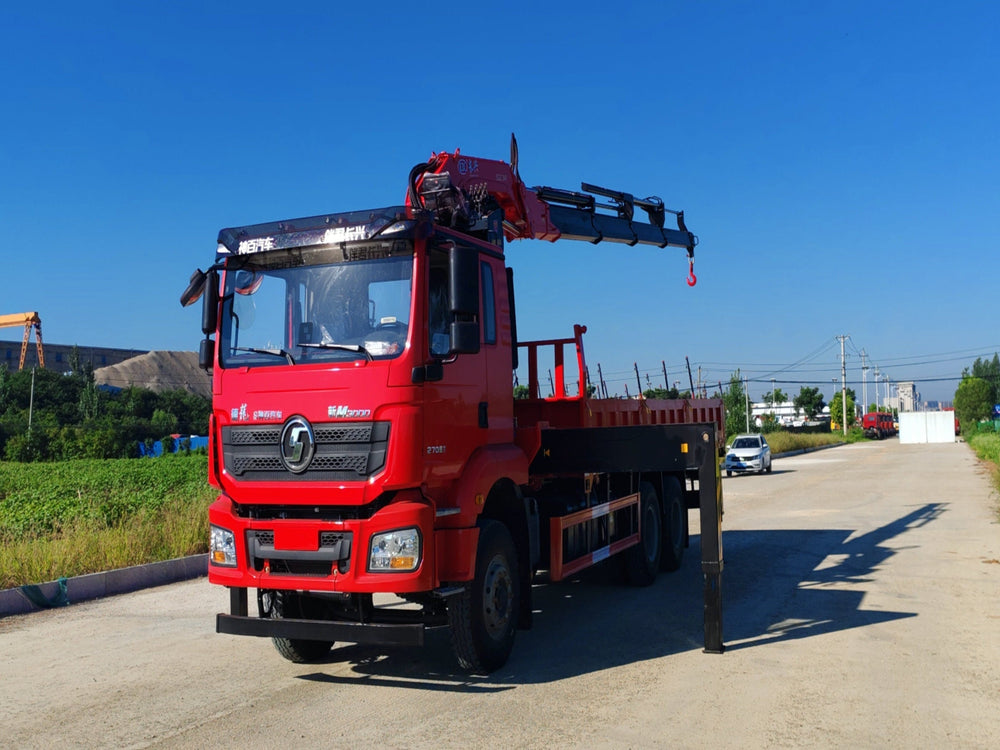

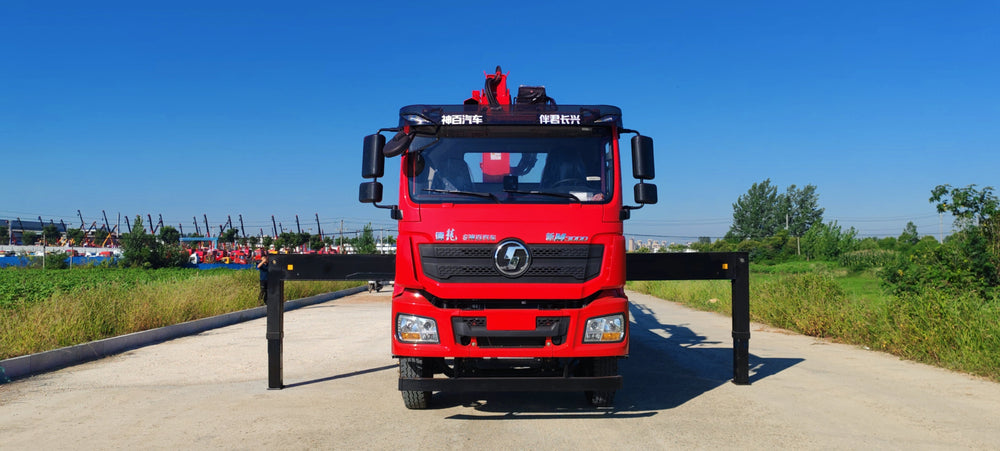

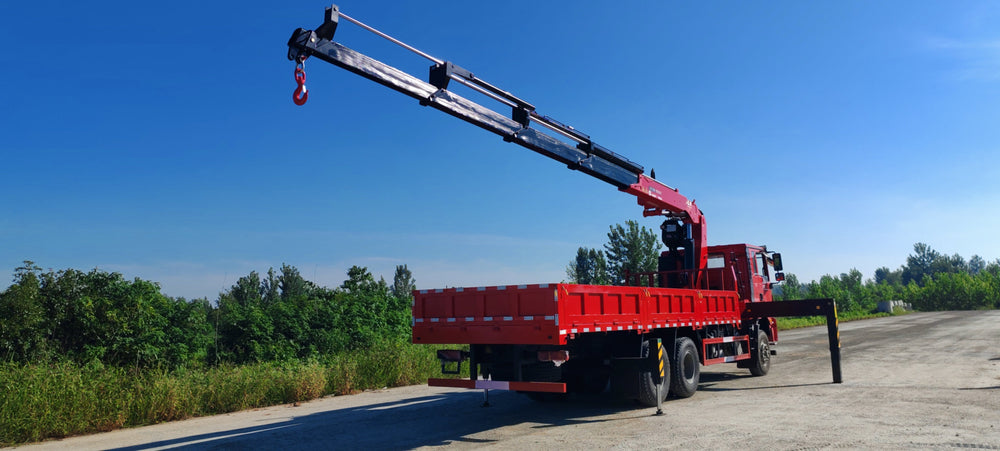

SHACMAN 6×4 12T Knuckle Boom Crane
| Item | Specification |
|---|---|
| Basic Vehicle Information | |
| Chassis Model | SX1259MB4F1 |
| Gross Vehicle Weight (GVW) | 25000kg |
| Kerb Weight | 16500kg / 17000kg / 17600kg / 18000kg / 18800kg / 19500kg |
| Max Travel Speed | 89km/h (Economy Version, Speed Limited to 89km/h) |
| Powertrain System | |
| Engine | Weichai WP7H270E68, 270HP, National VI Emission Standard |
| Transmission | Fast 9JS119T B 9-speed Gearbox, with Synchronizer, High/Low Range, Iron Housing, QHG50 |
| Clutch | Domestic Heavy-duty Clutch |
| Front & Rear Axle | 5.5T Front Axle / 11.5T Rear Axle, Hande Maintenance-free, Drum Brake for Both Steer & Drive Axles |
| Final Drive Ratio | 4.111 |
| Chassis & Running Gear | |
| Wheelbase | 5775+1400mm |
| Tyre Specification | 11.00R20 Radial Heavy-duty Tyre |
| Chassis Frame | 866×308(8+5+8) Reinforced Frame |
| Front Suspension | Multi-leaf Spring Suspension |
| Rear Suspension | Multi-leaf Spring Suspension with 2 U-bolts |
| Fuel Tank | 300L Iron Fuel Tank |
| Steering System | Domestic Steering Gear, Standard Steering Wheel |
| Cooling & Intake | Aluminum Radiator, DC Air Filter |
| Exhaust System | Standard Heavy-duty Exhaust System |
| Cab & Comfort Configuration | |
| Cab Body | New M3000 Standard Cab (without Wind Deflector), Manual Hydraulic Tilt |
| Driver Seat | Air Suspension Main Driver Seat |
| Sleeping Berth | Single Sleeper Berth |
| Climate Control | Electric Air Conditioner |
| Convenience Features | Electric Window Lifter, Central Door Lock with Remote Control, 2-step Entry Pedal |
| Vision & Lighting | Rod-type Rearview Mirrors, Halogen Main Headlights |
| Exterior Fittings | Engineering Vehicle Front Bumper |
| Safety & Auxiliary Equipment | |
| Braking Safety | Anti-lock Braking System (ABS) |
| Electrical System | Maintenance-free Battery, Tianxingjian Smart Elegant On-board Terminal |
| Traction Fittings | Left Front Traction Pin + Rear Traction Seat |
