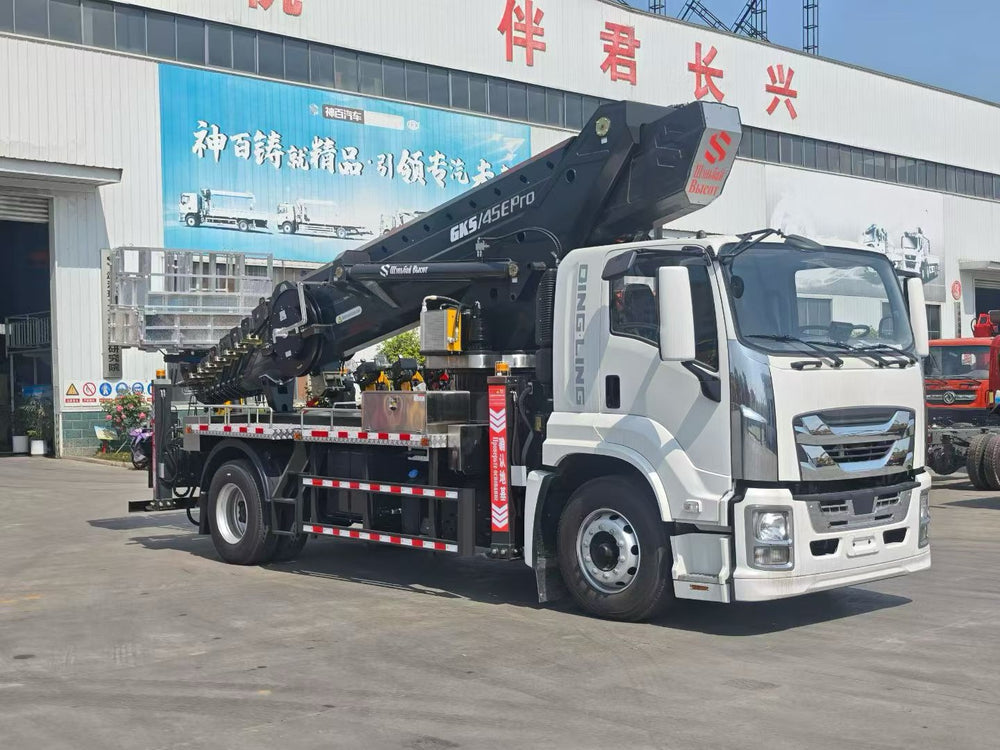

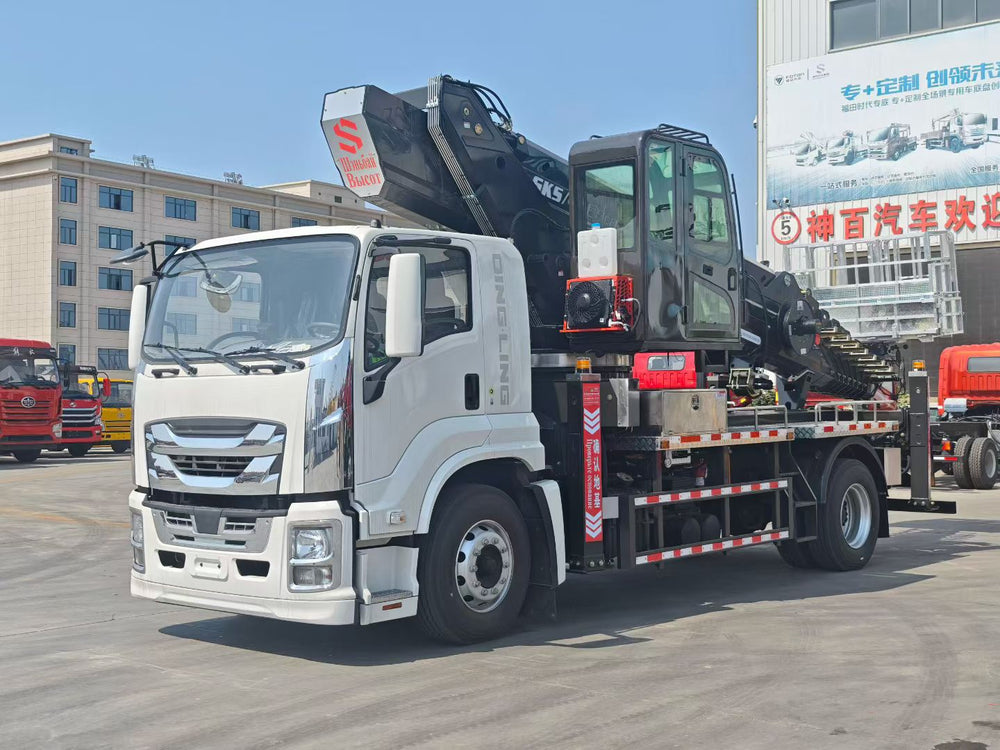

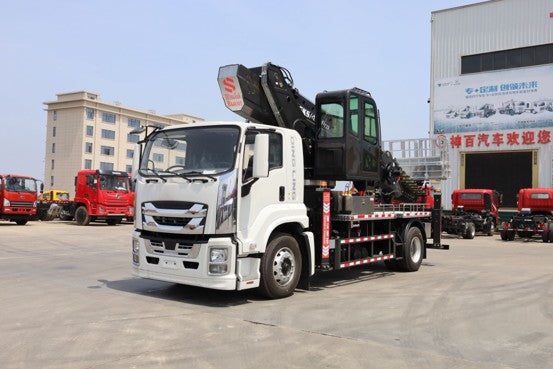

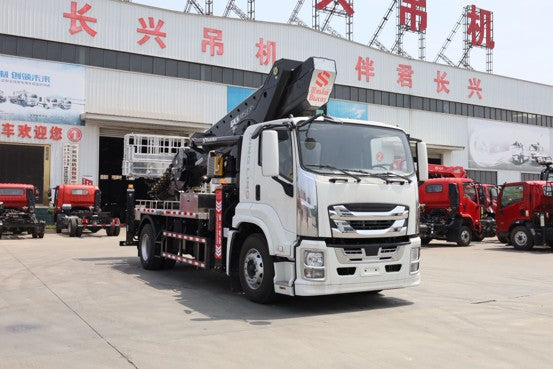

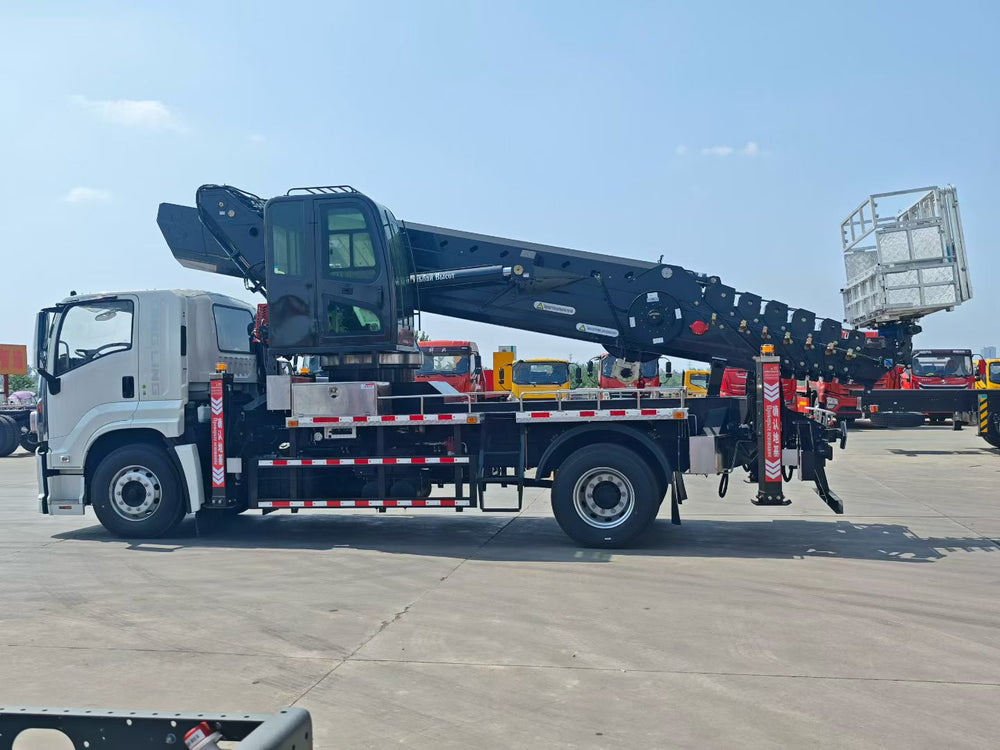

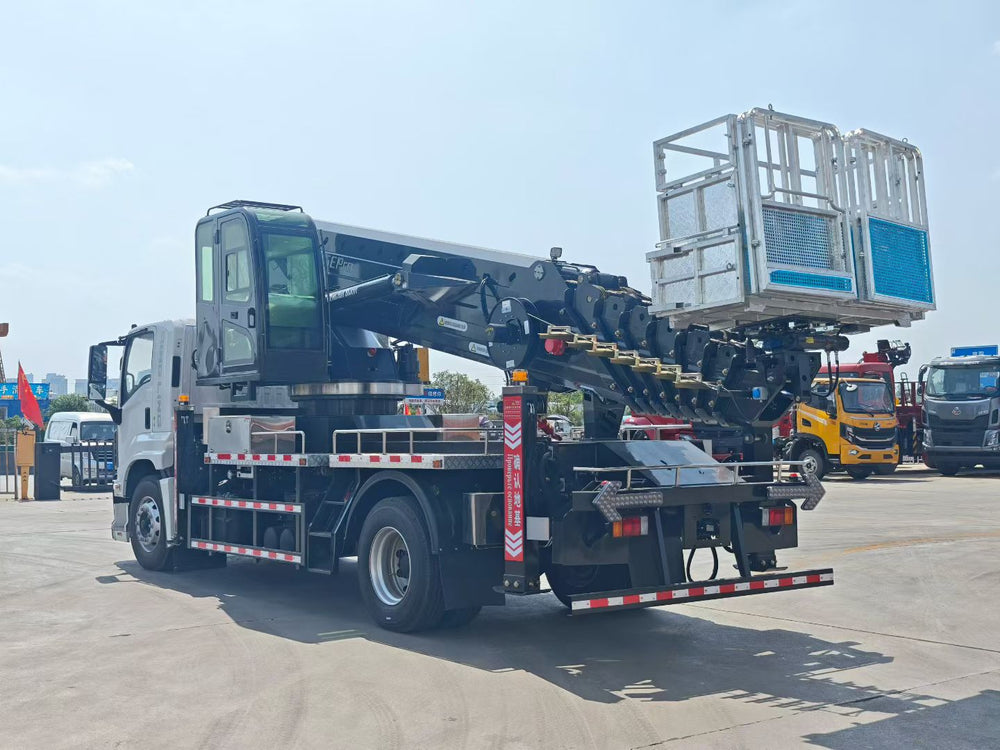

Isuzu 45M Aerial Work Truck

2.Basic parameters of vehicle

Truck Brand

Isuzu

Drive Type

Left Hand Drive（4x2）

Vehicle Size(mm)

9820×2590×3950mm

GVW

18000KG

Curb Weight

17200KG

Engine Model

4HK1-TC60

Engine power

151KW/205HP

Engine capacity

5.19L

Emission Standard

Euro 6

Wheelbases

4500mm

Transmission

6-Speed

Tires

295/80R22.518PR

Front/Rear Axle

6.3T/13T

Brake

Air brake

3. Upper Configuration

Maximum working height

45meters

Maximum working radius

25meters

Platform rated load

200KG

Boom slewing angle

360 degrees

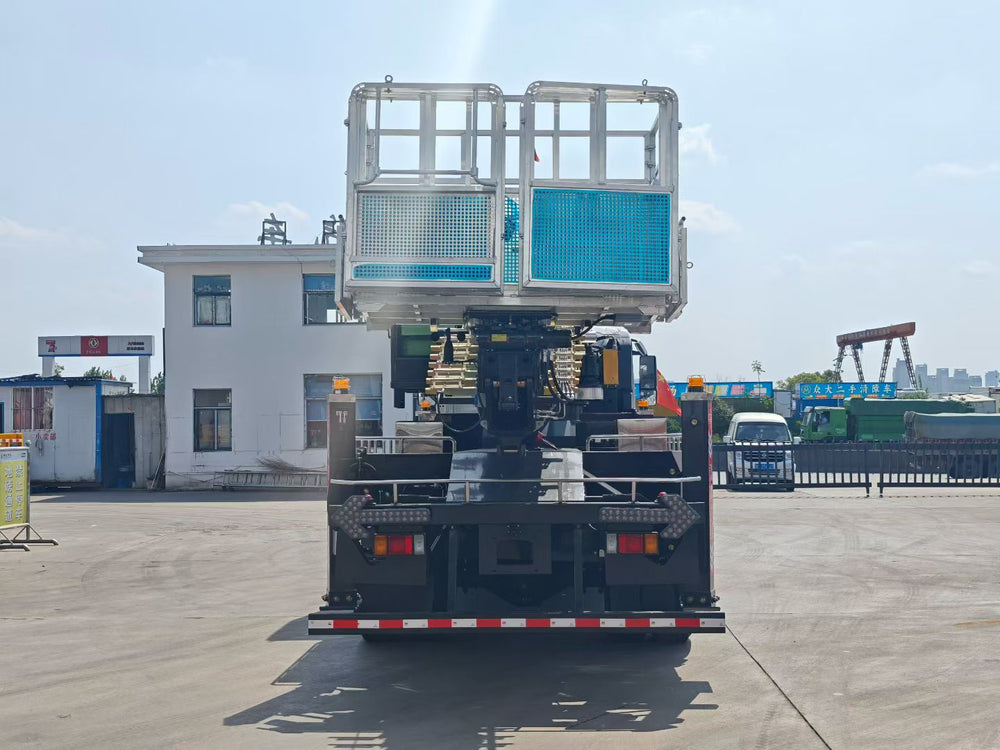

Platform size

3200mm*1000mm*1100mm

Platform Slewing Range

Infinite 360 degree rotation

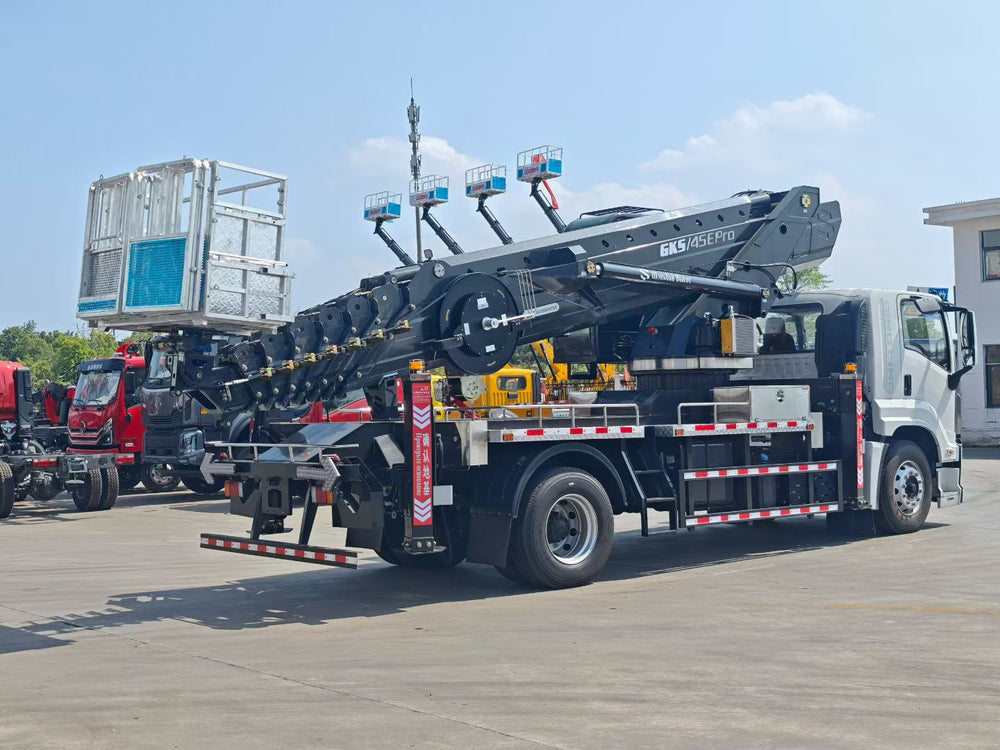

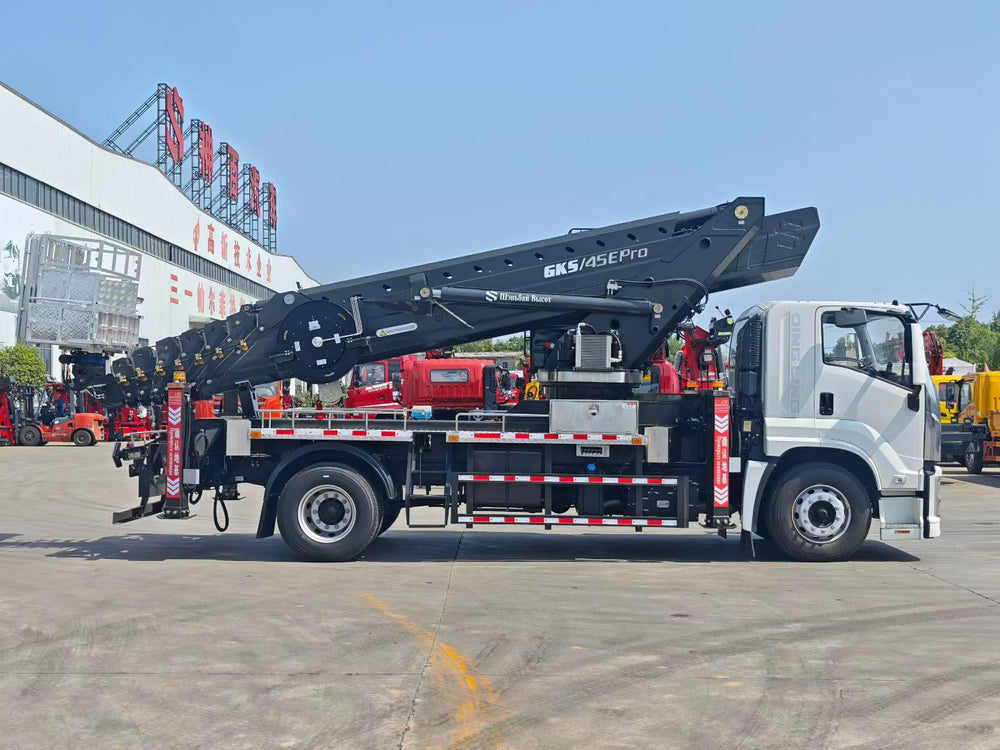

Maximal arm

8-section boom, 7-section synchronized extension

Operating system

Features a renowned domestic electronic control system, equipped with a wireless remote control and a central control panel with a display screen.

Hydraulic system

Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source

Hydraulic outriggers

X-legs, 4 three-section outriggers, individually adjustable

Aisle plate

Aluminum Alloy Anti-slip Walkway Plate

Safety device

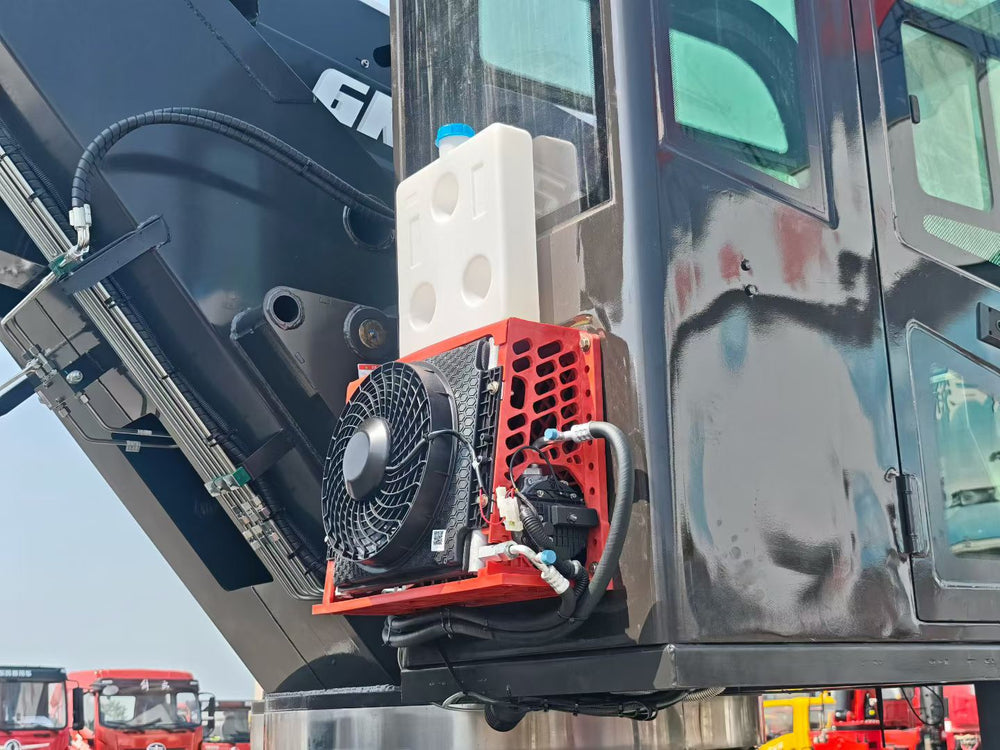

Entry/Exit Interlock, Emergency Power Source, Bi-directional Hydraulic Balance Valve, Outrigger Protection, Radiator, 220V External Power Supply

Other Configurations

Gravity Sensor, Anemometer, Air Conditioner, Space Heater.
