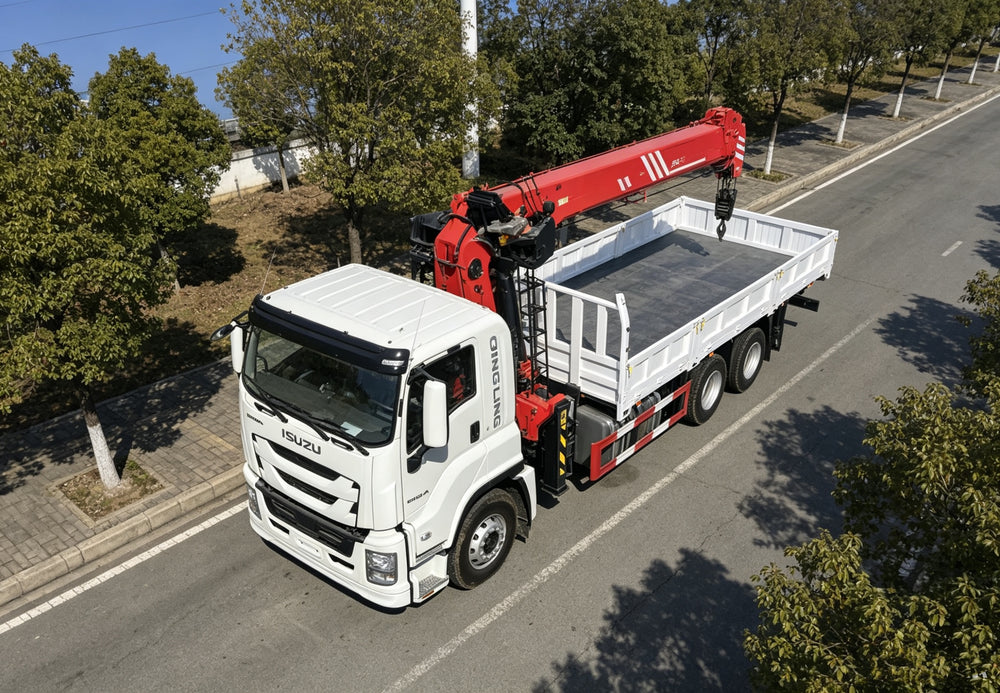

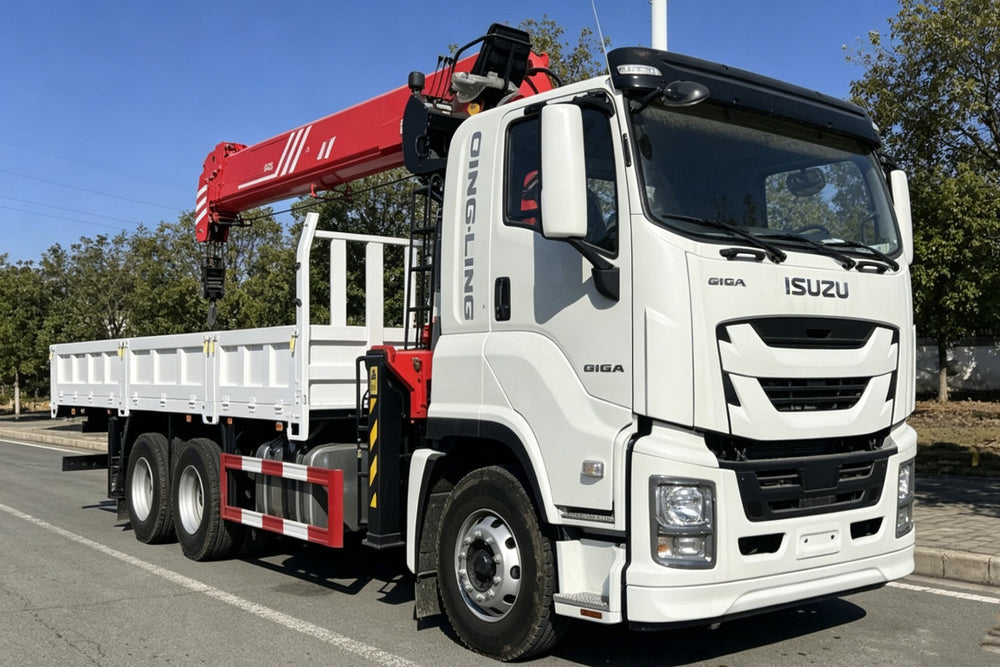

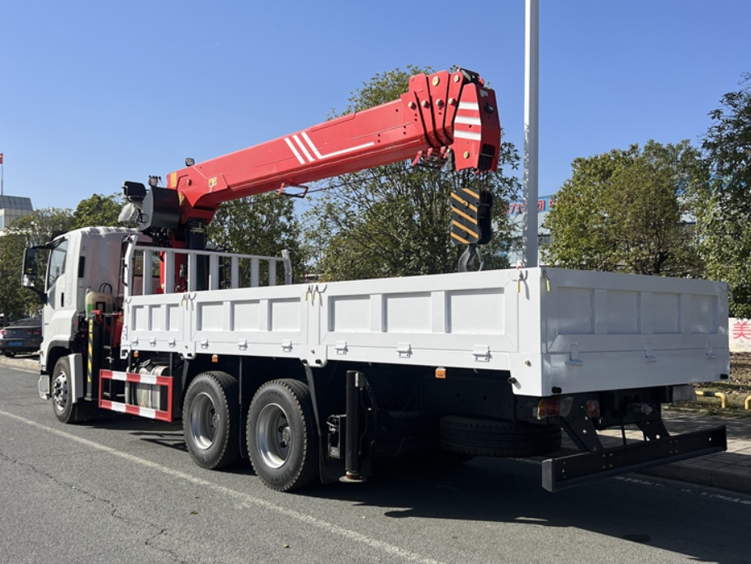

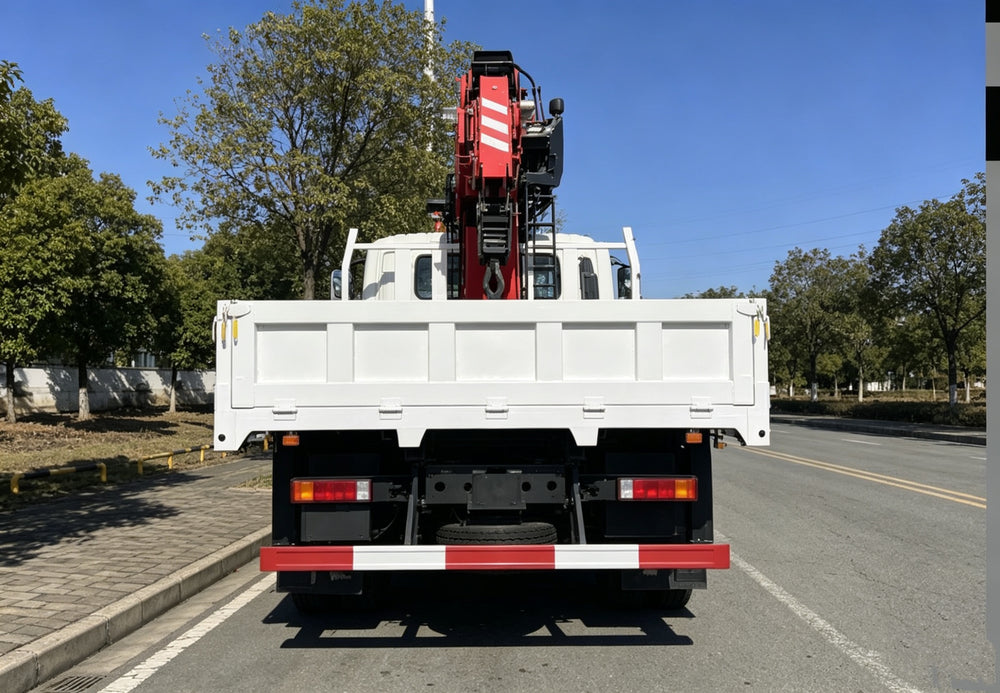

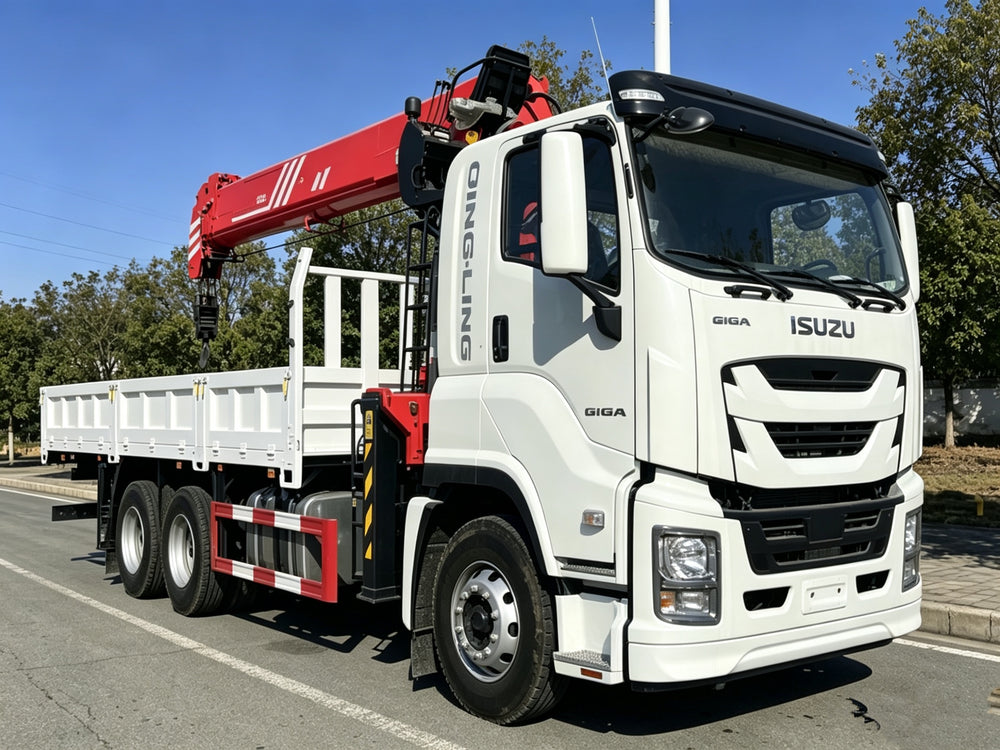

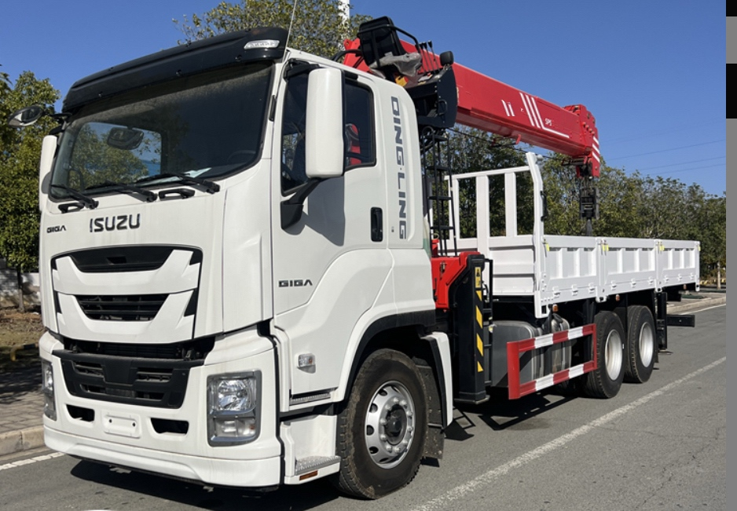

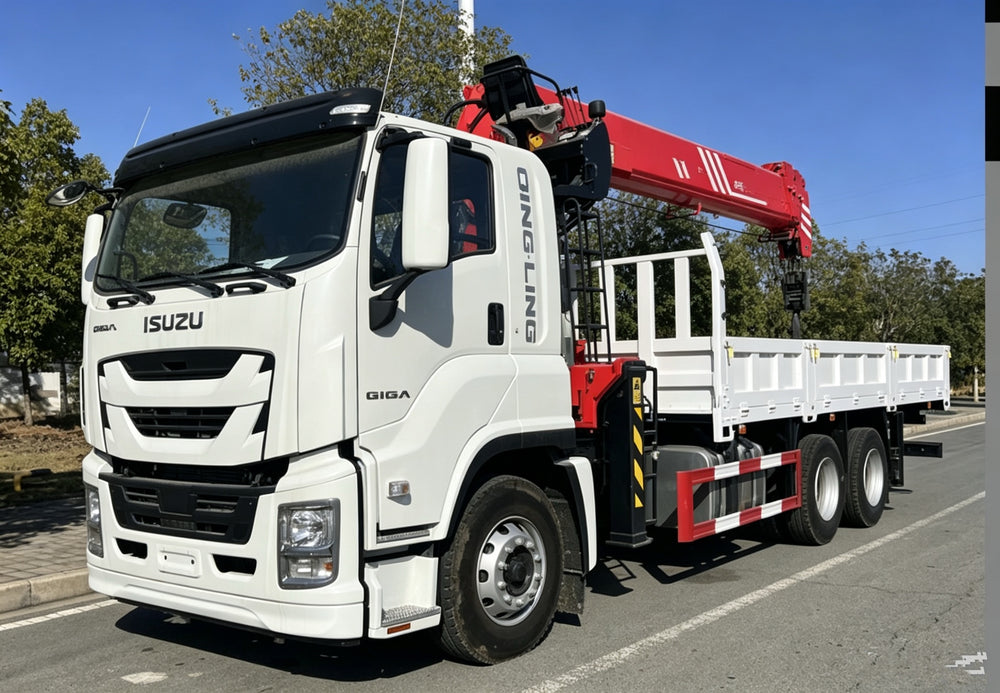

Isuzu 14T Truck Mounted Crane
|
2.Basic parameters of vehicle |
|
|
Chassis Brand |
Isuzu |
|
Drive Type |
Left Hand Drive |
|
Vehicle Size(mm) |
12000X2500X3850 |
|
Total Mass(Kg) |
25000 |
|
Engine Model |
6HK1-TCG60 |
|
Engine power |
300HP/221kw |
|
Engine capacity |
7.79L |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
5700mm+1370mm |
|
Cab Capacity |
2 |
|
Transmission |
Fast 9 speed gearbox |
|
Front/Rear Axle |
7T/1Double 10T |
|
Tyre Size |
295/80R22.5 |
|
Oil Tank |
400L |
|
Container Size |
8500× 2450 × 550mm |
|
Working angle |
Full hydraulic, 360 ° Full rotation |
|
Crane Brand |
CX/SQS350 |
|
Maximum lifting height |
17.5M |
|
Maximum lifting weight |
14T |
|
Quantity of telescopic arm |
4-section |
|
Working radius |
15.7M |
|
Rear outriggers |
Hydraulic single-chamber rear outriggers |
|
Cab configuration |
Air conditioning (heating and cooling), power steering, central locking, power windows and doors, multi-function steering wheel, multi-function LCD instrument panel, ABS, air brakes, and additional independent heating for the driver's cab |
