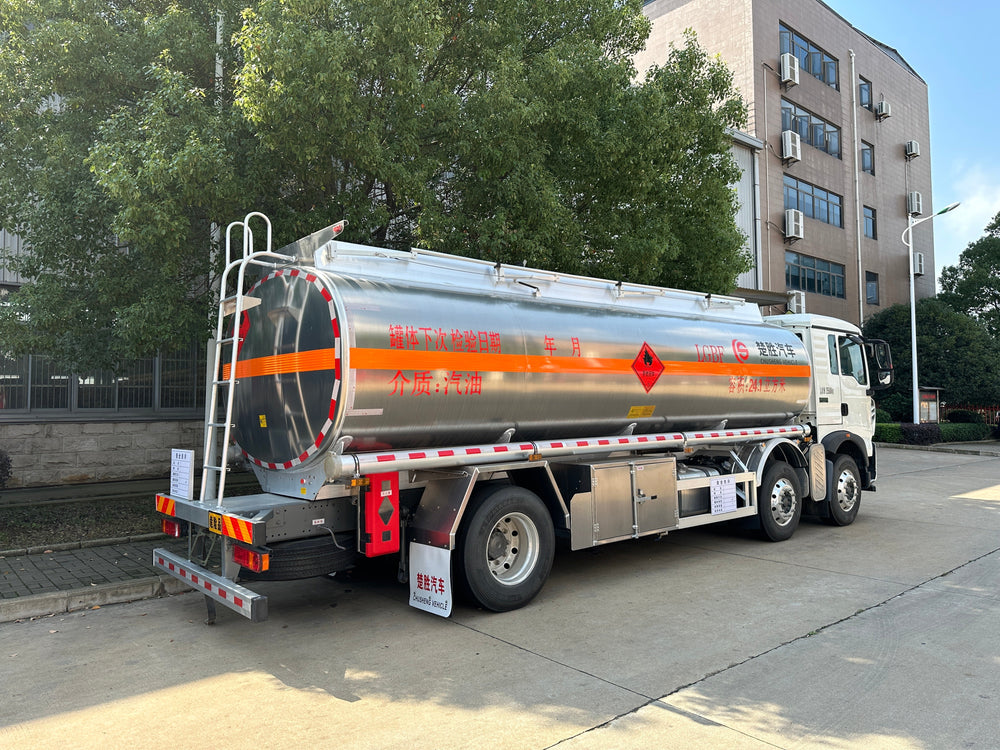

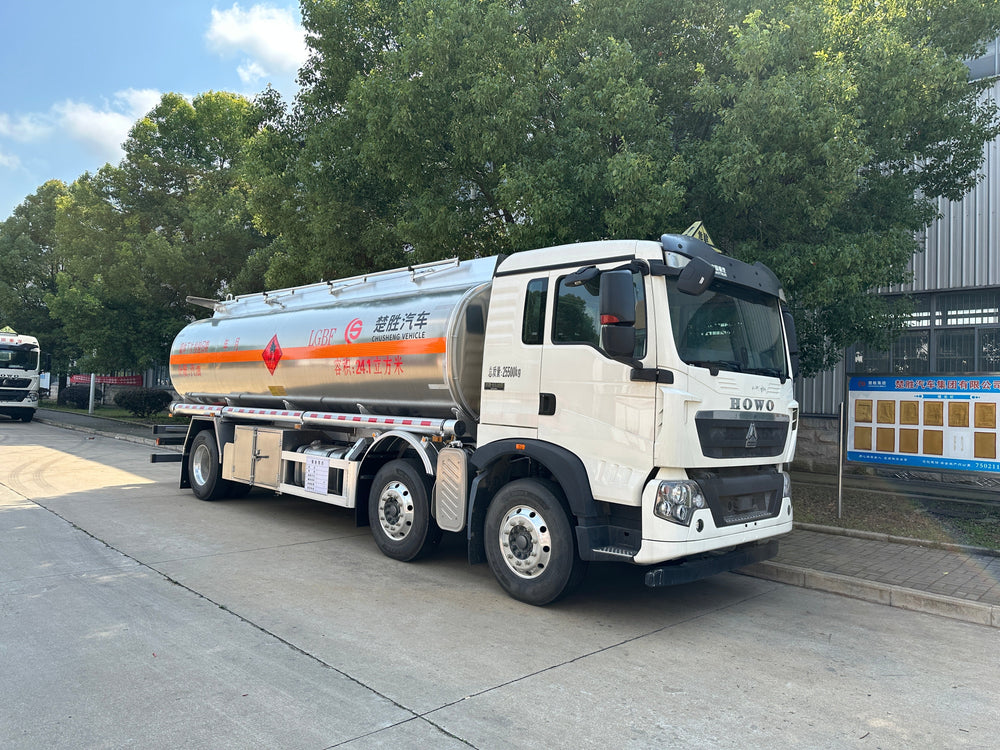

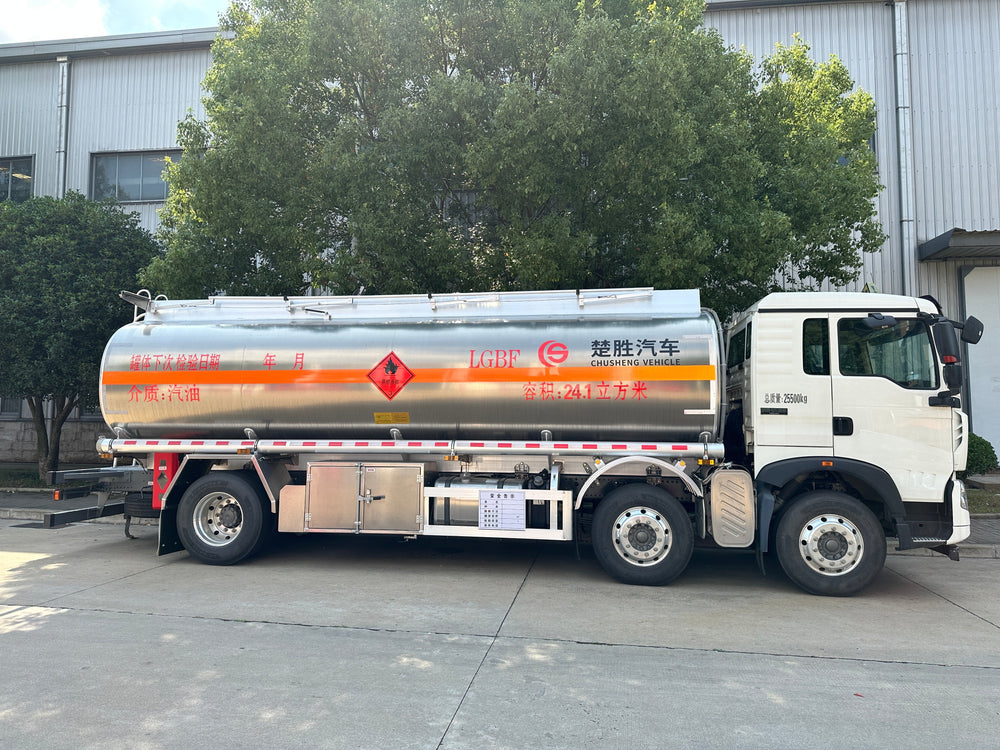

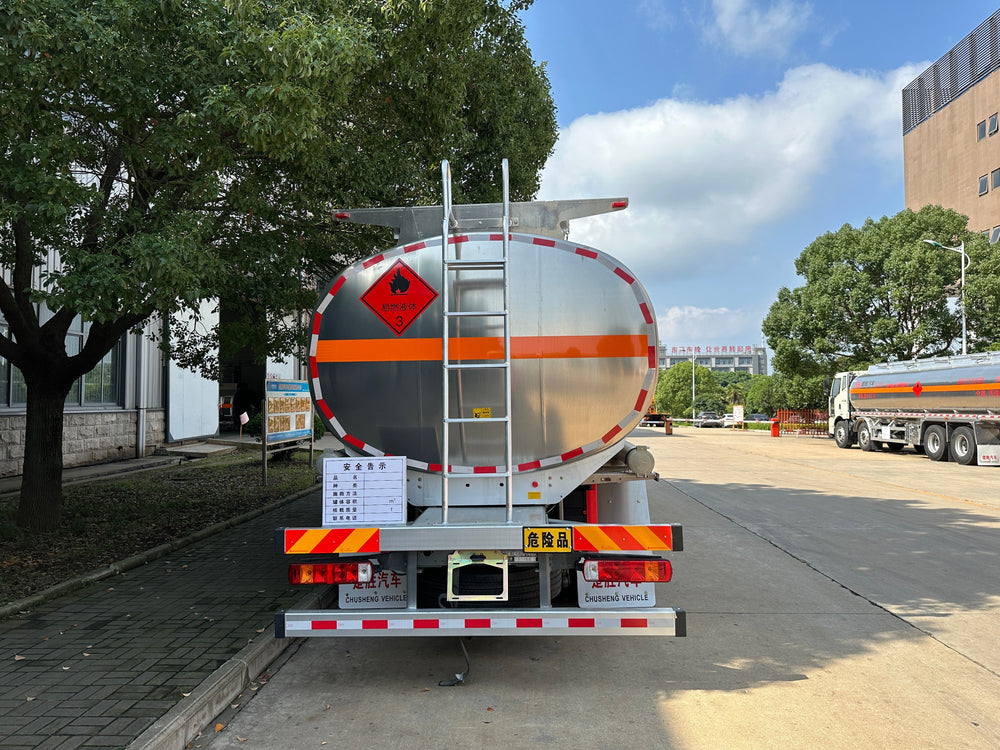

HOWO 6×2 Aluminum Alloy Oil Tank Truck
1. Chassis Configuration (Howo TX5)
| Parameter | Value |
|---|---|
| Vehicle Category | Special Purpose Vehicle |
| Cab Type | TX-K Cab |
| Seat Configuration | Main Airbag Seat + Auxiliary Simple Seat |
| Engine Model | MC07.25-60 |
| Transmission | HW95508STC Gearbox + HW45ZC French PTO |
| Front Axle | VPD75D Disc Brake Front Axle |
| Rear Axle | MCY11BES Single Rear Axle (Disc Brake) |
| Final Drive Ratio | 4.63 |
| Frame Specification | Double-Layer Frame (8+4 / 280mm) |
| Suspension System | Front & Rear Air Suspension (3/3 / –) |
| Steering Gear | 8198 Steering Gear |
| Exhaust System | Front-Mounted Exhaust System |
| Brake & Stability System | EBS (Electronic Braking System) + ESC (Electronic Stability Control) |
| Bumper | Mid-Position Non-Metal Bumper |
| Wheel Type | Domestic Aluminum Alloy Wheels |
| Tire Specification | 295/80R22.5 |
| Cab Lift | Electro-Hydraulic Integrated Electric Lift |
| Fuel Tank | 300L Fuel Tank |
| Advanced Safety Systems | LDWS (Lane Departure Warning System) + FCWS (Forward Collision Warning System) with Radar |
| Power Take-Off | Rotary PTO |
| Emergency Safety Device | Steering Wheel Tire Burst Emergency Device |
2. Tank Body (Upper Structure) Configuration
| Parameter | Value |
|---|---|
| Manufacturing Standard | Strictly per official announcement dimensions |
| Effective Tank Volume | Approx. 24.1 m³ |
| Tank Material | 5182 Aluminum Alloy |
| Transport Medium | Gasoline |
| Compartment Layout | Single Compartment |
| Tank Body Thickness | 6 mm (≥ 5.5 mm) |
| Tank Head Thickness | 6 mm |
| Baffle Thickness | 5.5 mm |
| Pump System | Equipped with pump |
| European Standard Manholes | 2 units |
| Bottom Valve | 1 unit with automatic closing system |
| Bottom Loading System | Equipped |
| Vapor Recovery System | Equipped |
| Anti-Overflow System | Anti-overflow probe and socket |
| Toolbox | 1 unit |
| Static Grounding Reel | Equipped |
| Folding Guardrail | Equipped |
| Fire Cap | 1 unit |
| Fire Extinguisher | 2 units × 8 kg |
| Tank Body Color | Aluminum Alloy Natural Color |
| Safety Markings | Reflective strips, reflective tape, "Flammable Liquid 3" hazard label and safety warning signs |
