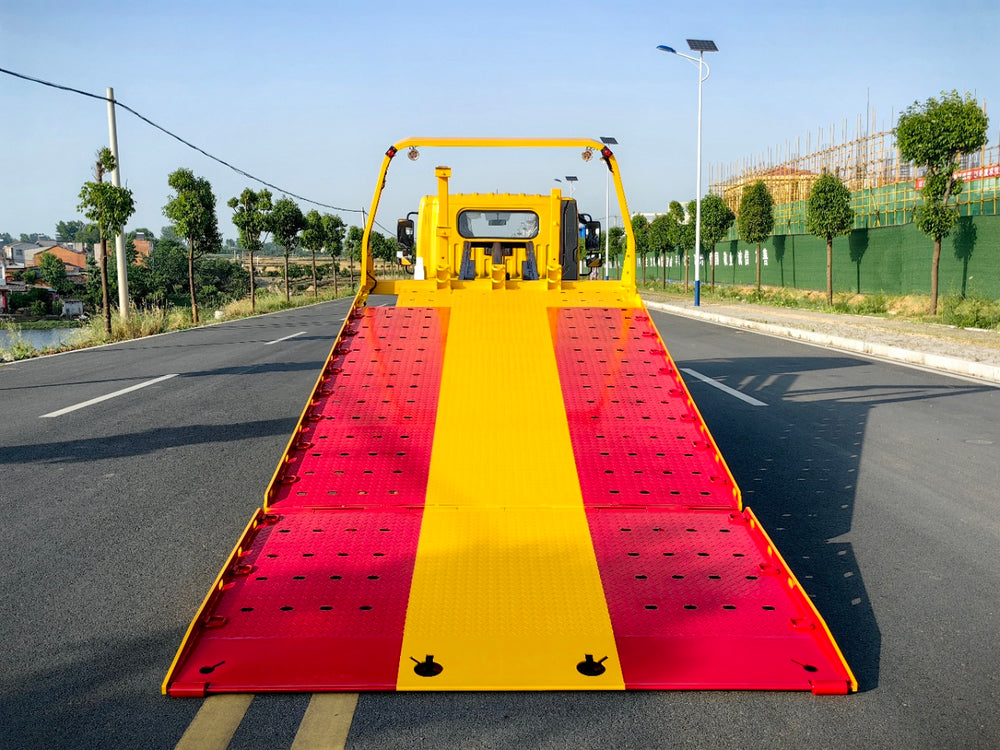

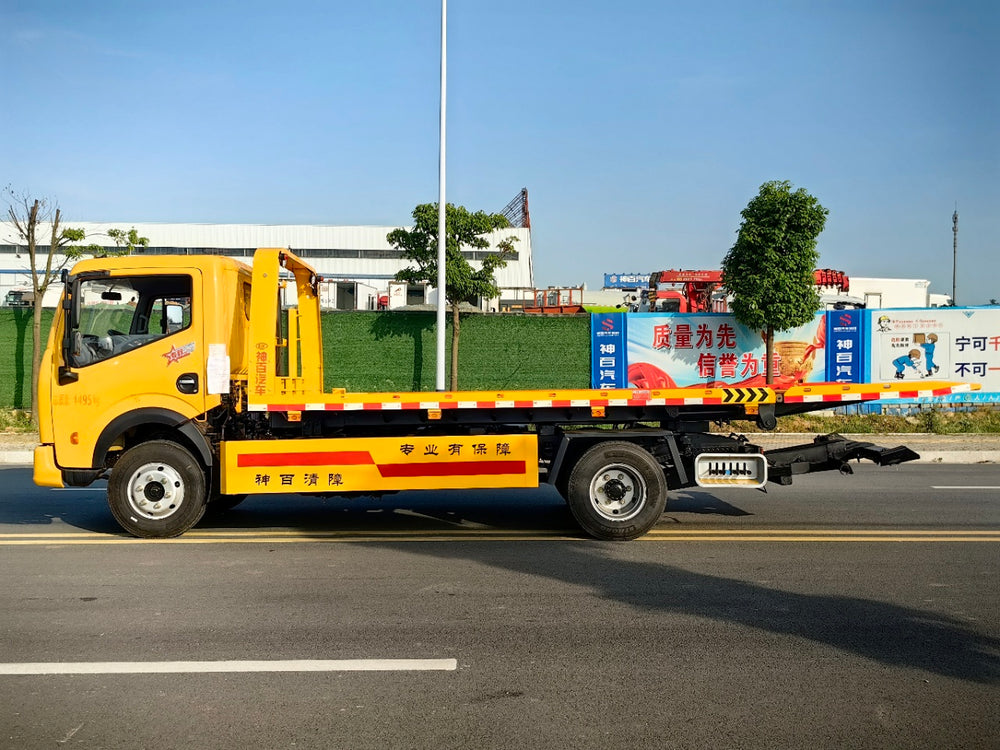

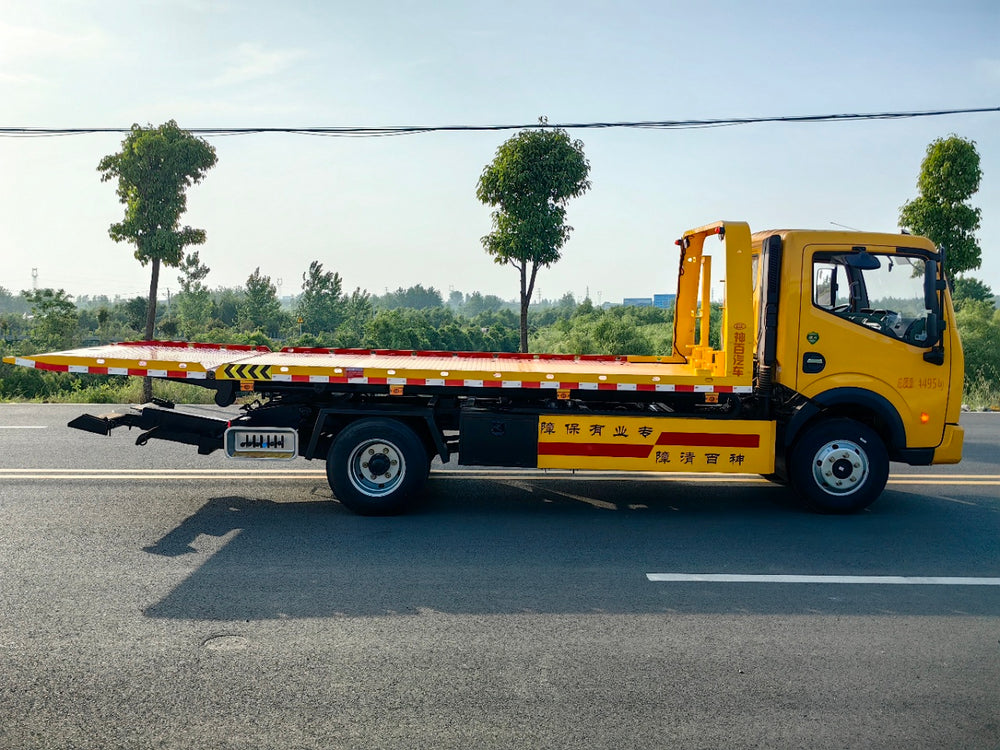

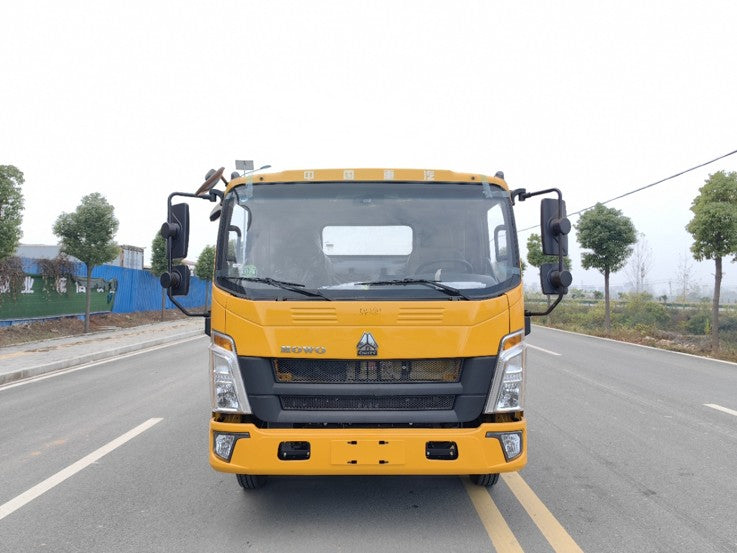

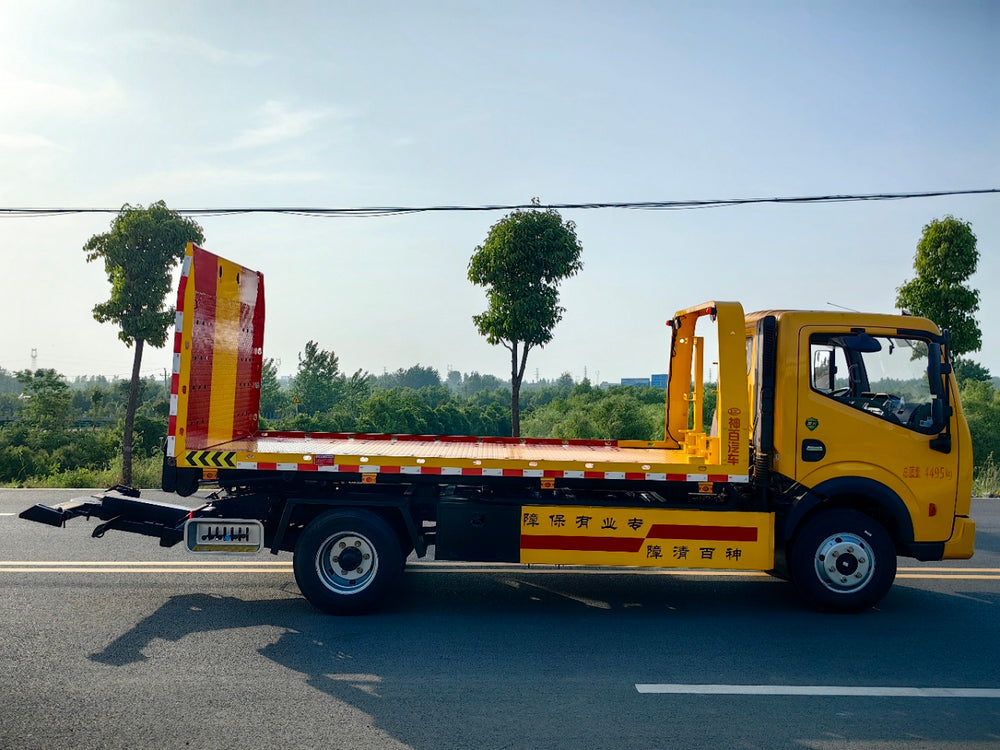

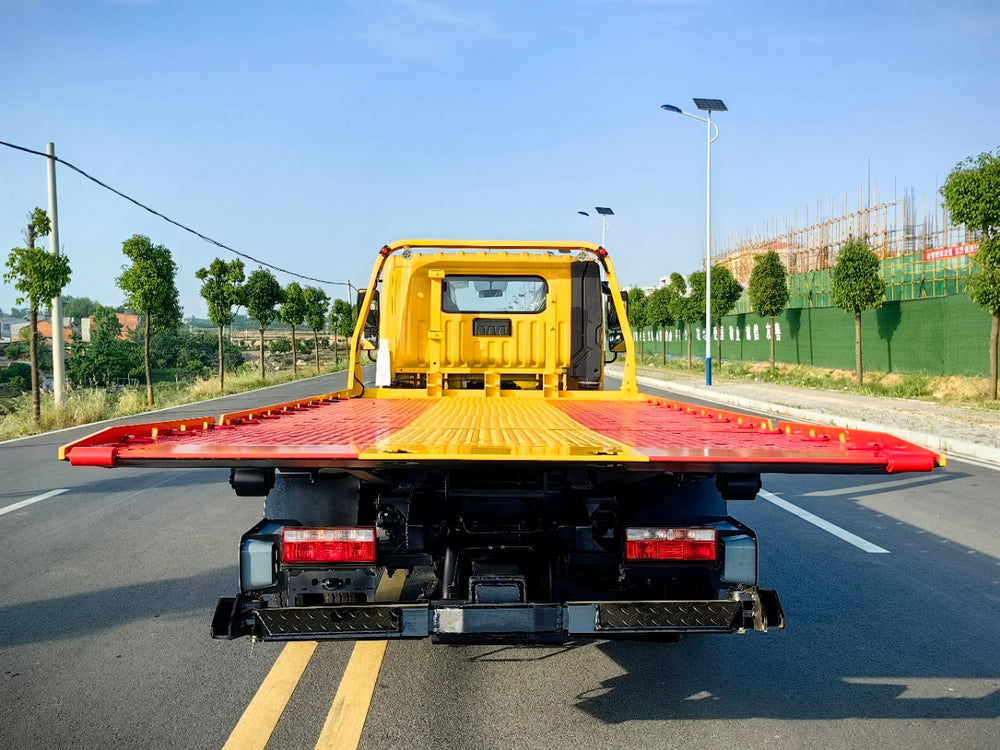

HOWO 4x2 Wrecker Truck

2.Basic parameters of vehicle

Truck Brand

HOWO

Drive Type

Left Hand Drive

Vehicle Size(mm)

5995x2300x2260

G.V.W (kg)

4495

Net Weight(kg)

2865

Engine Model

WP2.5NQ150E61

Engine power

150HP(110kw)

Engine displacements

2.49L(4-cylinder)

Emission Standard

Euro 6

Wheelbase

3600mm

Cab Capacity

2

Transmission

6 speed transmission

Front/Rear Axle

3T/6T

Tyre Size

700R16 steel wire tires

Container Size

5600x2400

Other configurations

Power windows and doors, remote key, multi-function steering wheel, cruise control, original cold and warm air-conditioning, air-break brake, headlight adjustment.

Upper Configuration

The hydraulic cylinders are from the Haideruiwo brand: the main cylinder is a type 110, and the lifting cylinder is also a type 110. This brand of hydraulic cylinders is renowned for its superior performance, high stability, high reliability, and low failure rate. The pallet has a load capacity of 7 tons and can slide up and down. The pallet dimensions are 5.6 meters long and 2.4 meters wide. The base plate is made of 5mm wear-resistant patterned steel plate, and the frame is made of 14mm solid steel plate. The steel plates are perforated, the base plate has a grid structure, and is equipped with reinforced triangular supports. The rear features a through-shaft hydraulic tilting hinge, a 4-ton winch, and a 4-ton rear support arm (for supporting the main beam). 4 tonnes of winch (21 m wire rope), 4 tonnes of rear support arm The hydraulic system is operated by double-side linkage system, and Zhongmei hydraulic multi-way valves.
