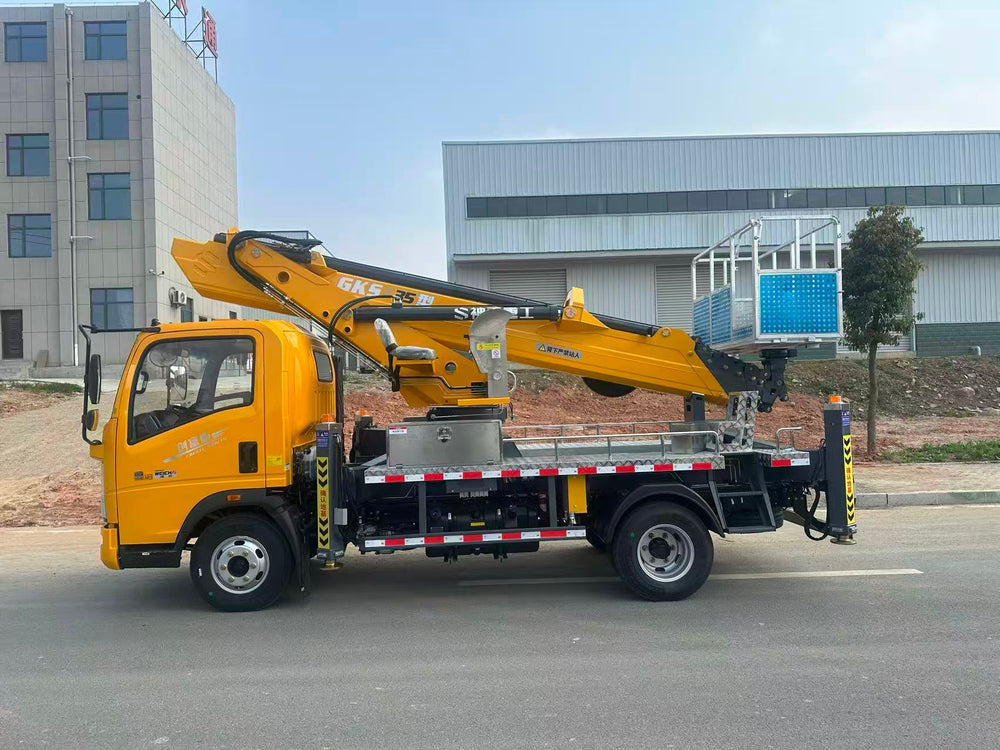

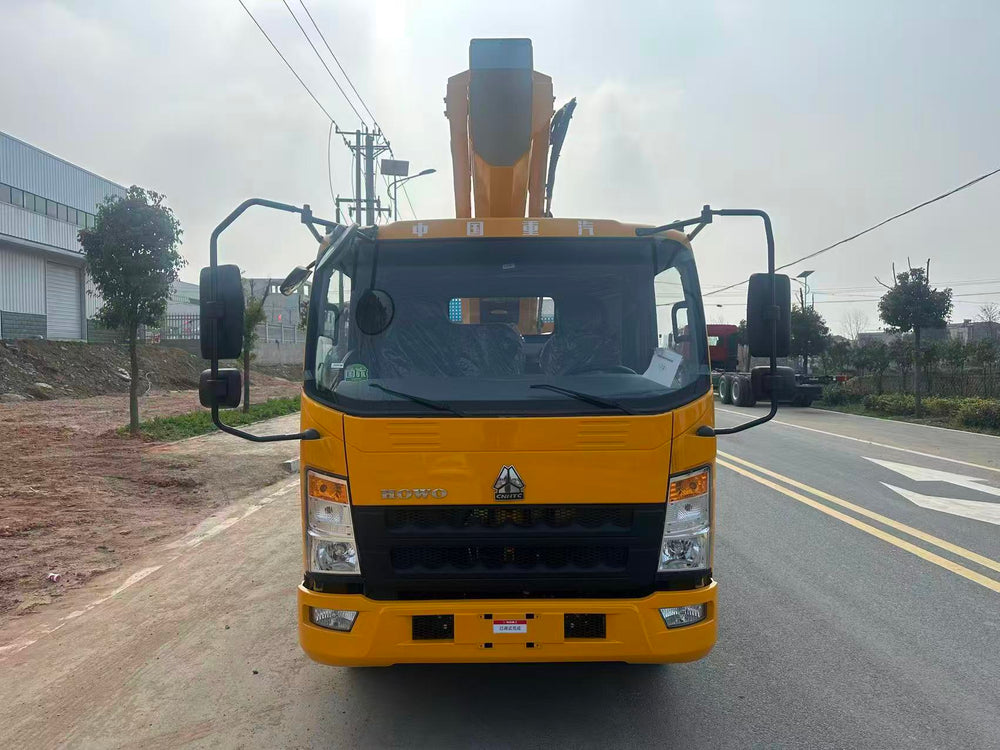

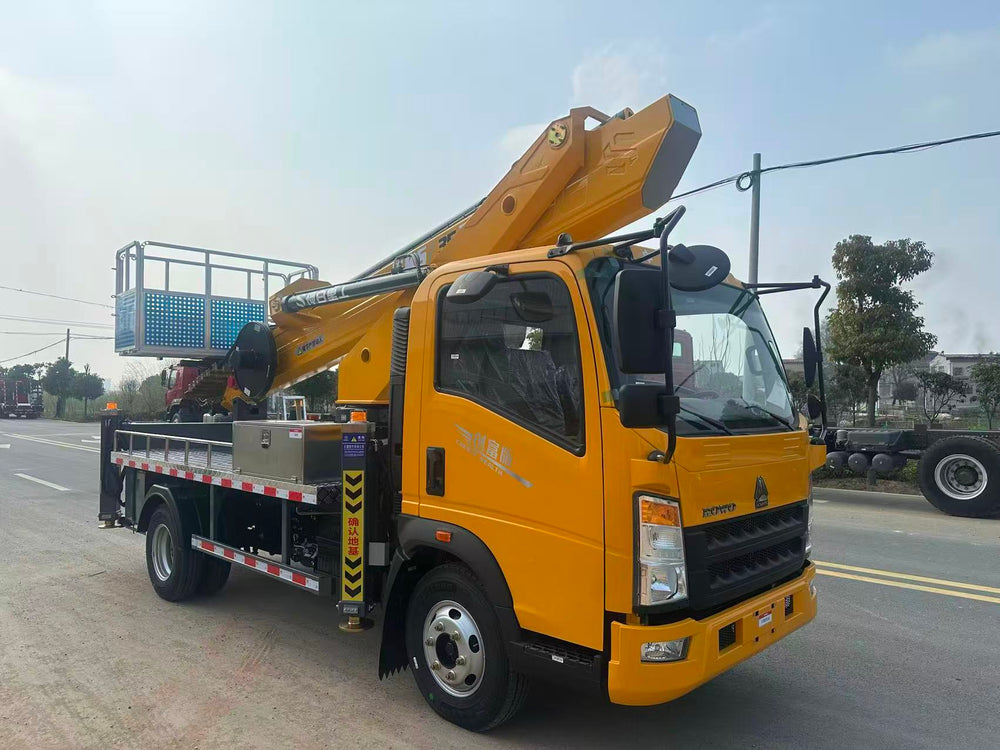

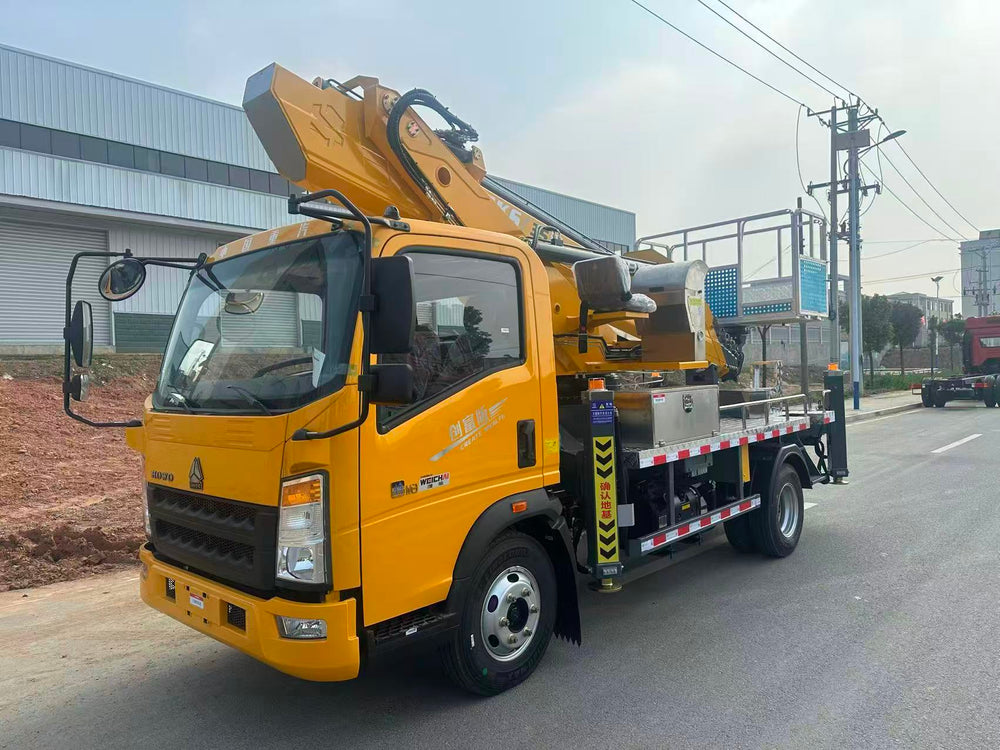

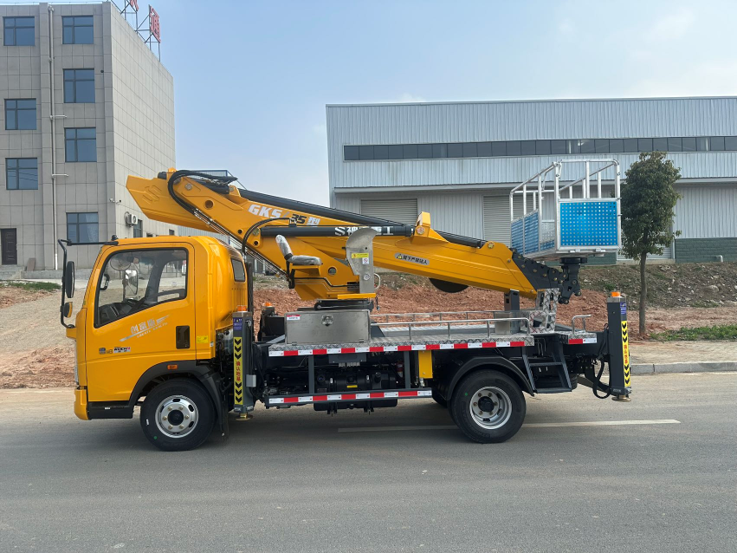

HOWO 4X2 GK35 aerial work vehicle
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
HOWO |
|
Drive Type |
Left Hand Drive |
|
G.V.W |
4495KG |
|
Curb Weight |
4365KG |
|
Engine model |
YN4102QBZL |
|
Engine power |
116HP(85kw) |
|
Transmission |
Wanliyang 5-speed |
|
Wheelbases |
3800mm |
|
Overall dimensions |
5995mm*2200mm*3150mm |
|
Tires |
7.50R16 |
|
Brake |
Air brake |
|
3. Upper Configuration |
|
|
Maximum working height |
35meters |
|
Maximum working radius |
16.5 meters |
|
Platform rated load |
200KG |
|
Boom slewing angle |
360 degrees |
|

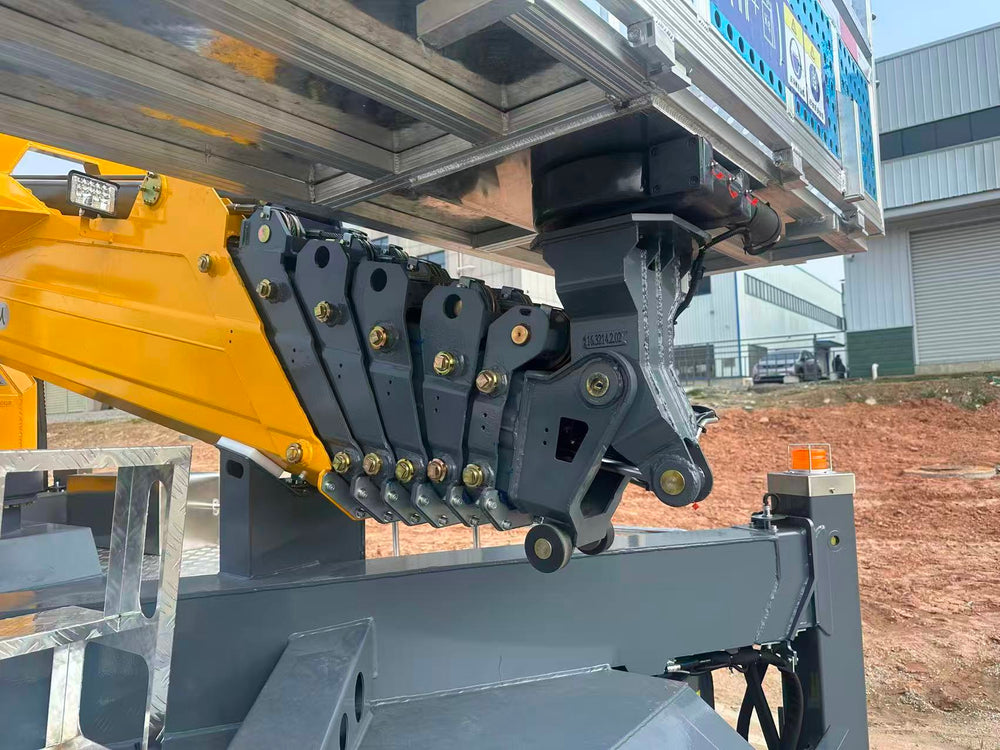

Platform size |
1800mm*700mm*1000mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
Maximal arm |
7-section arm, 6-section synchronised telescopic |
|
Operating system |
Domestically renowned electronic control system, equipped with wireless remote control and central operation display |
|
Hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle plate |
Steel non-slip walkway. |
|
Safety device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
