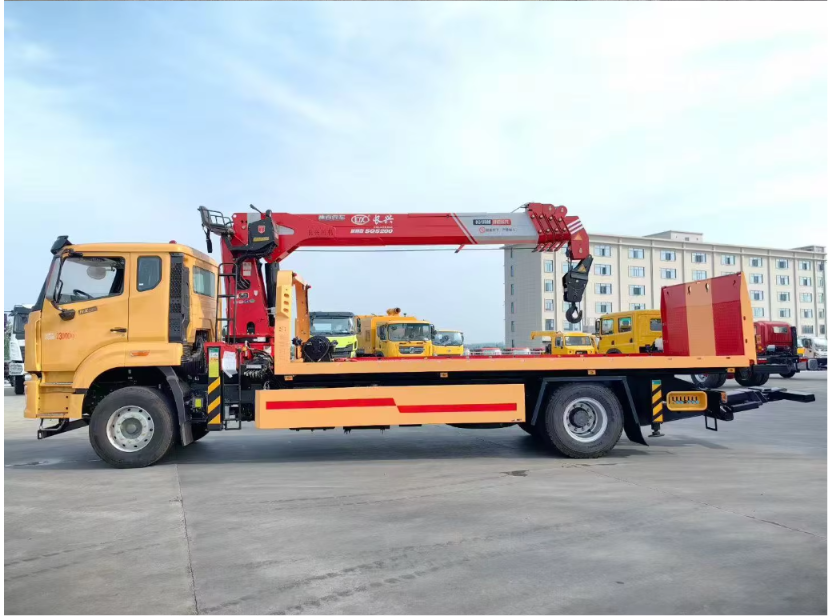

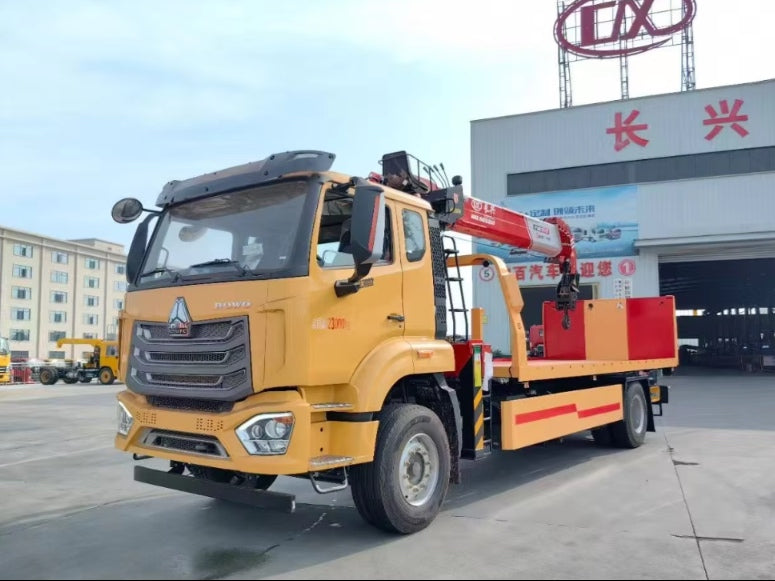

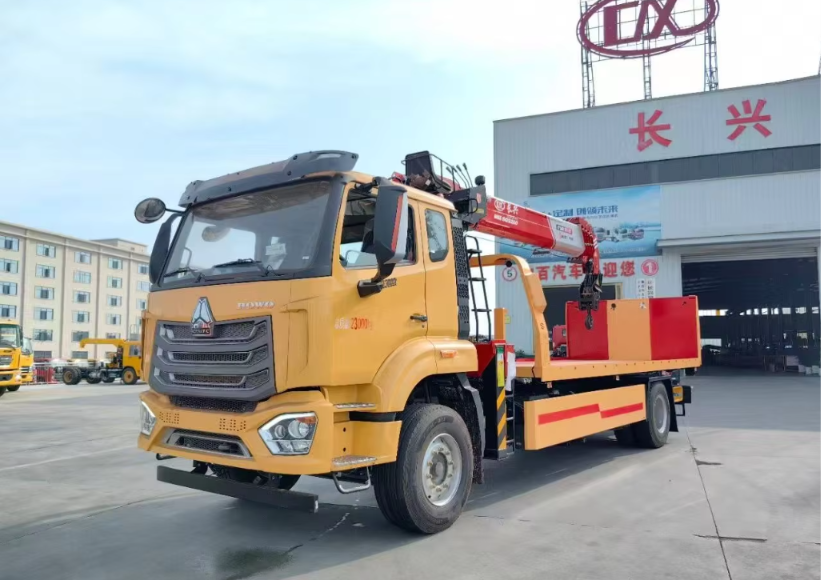

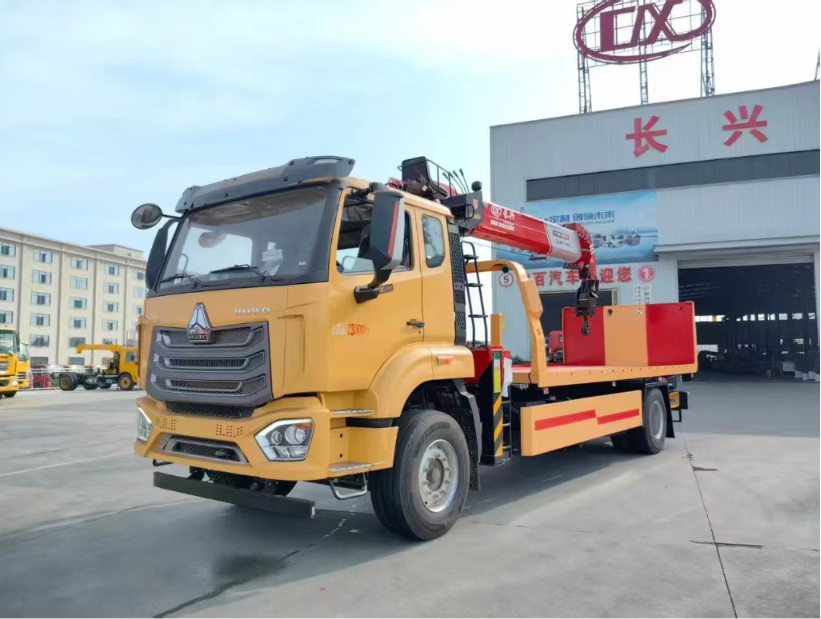

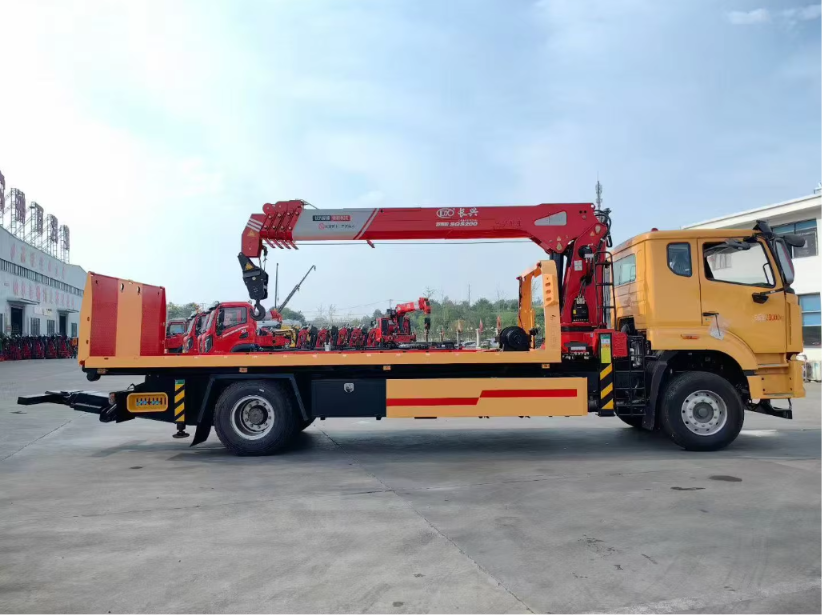

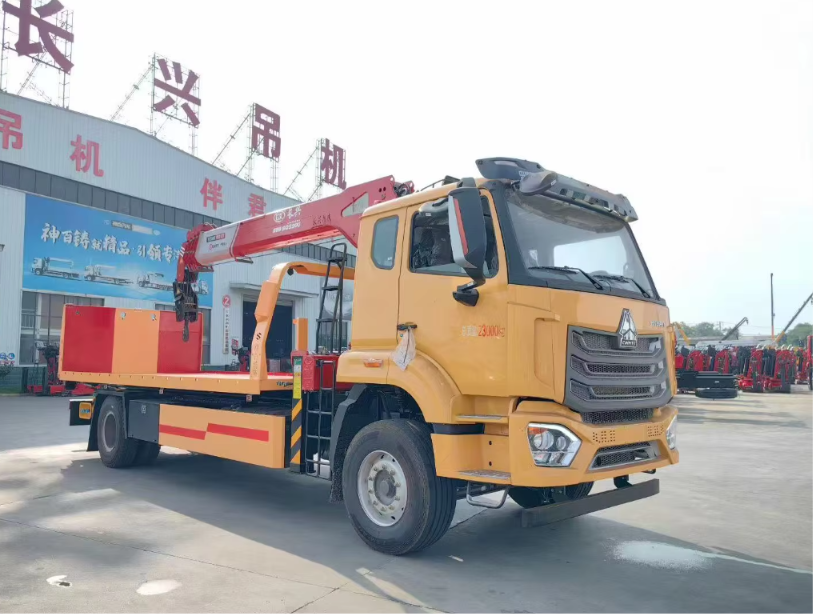

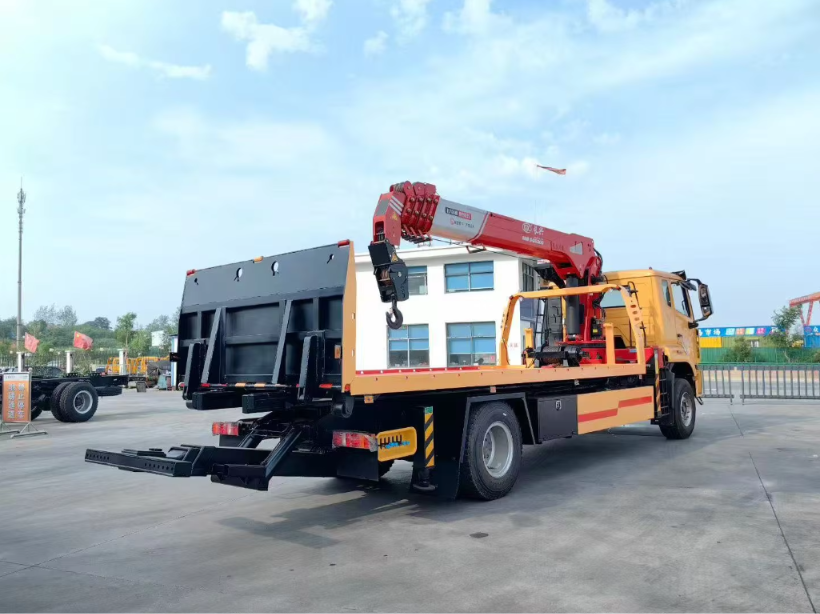

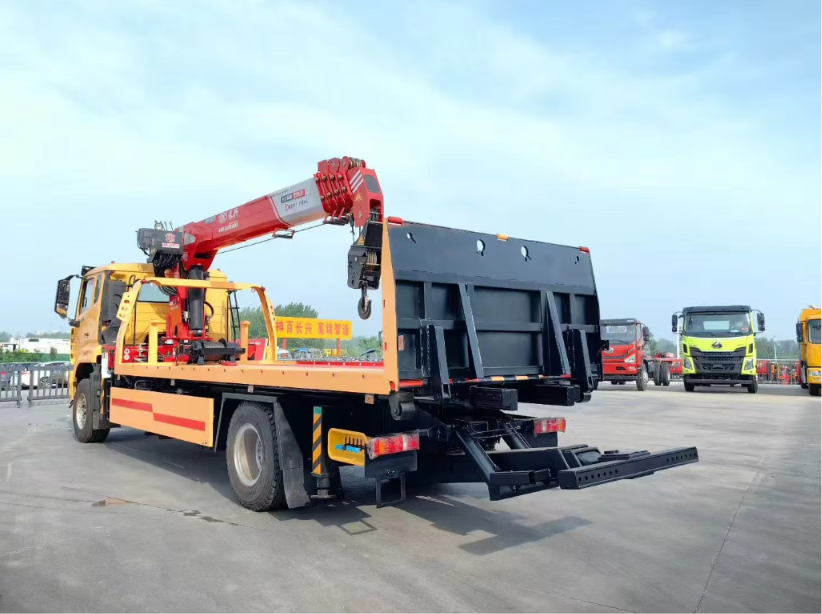

HOWO 4x2 8 Ton Flatbed Wrecker Truck Mounted Crane

2.Basic parameters of vehicle

Truck Brand

HOWO

Drive Type

Left Hand Drive(4X2)

G.V.W(kg)

25000

Net Weight(kg)

16200

Engine Model

WP4.6NQ240E62

Engine power

176KW/240HP

Emission Standard

Euro 6

Wheelbase

6000mm

Cab Capacity

2

Transmission

9-speed gearbox

Front/Rear Axle

7.5T/13T

Tyre Size

11.00R20

Vehicle Size

10100*2550*3950mm

Working angle

Full hydraulic, 360 ° Full rotation

Crane Brand

CX/SQS200

Maximum lifting height

15.5M

Maximum lifting weight

8T

Quantity of telescopic arm

4-section

Working radius

13.5M

Rear outriggers

Hydraulic  rear outriggers

Bodywork configuration

The superstructure features a 5.9-meter-long and 2.55-meter-wide recovery flatbed platform with a rated load capacity of 10 tons. The deck base is constructed from 6mm thick high-strength, wear-resistant checkered steel plate, while the supporting frame is fabricated from 16mm thick solid steel plate. The platform adopts a recessed flush-mount design to lower the overall vehicle center of gravity. High-density grid reinforcement and closely spaced triangular bracings are welded underneath the flatbed to boost structural rigidity, enhance durability and extend service lifespan. The recovery flatbed is fully equipped with double-layer thickened manganese steel slide rails, a 10-ton hydraulic winch, a 10-ton three-section rear outrigger boom, and hydraulic multi-way valves imported from Italy Hydrocontrol

Vehicle accessories

A pair of auxiliary pulleys, a pair of triangular tire guards, six high-quality straps, a pair of tow fork mounts, three pairs of tow forks (one pair each of high, medium, and low) and a crowbar
