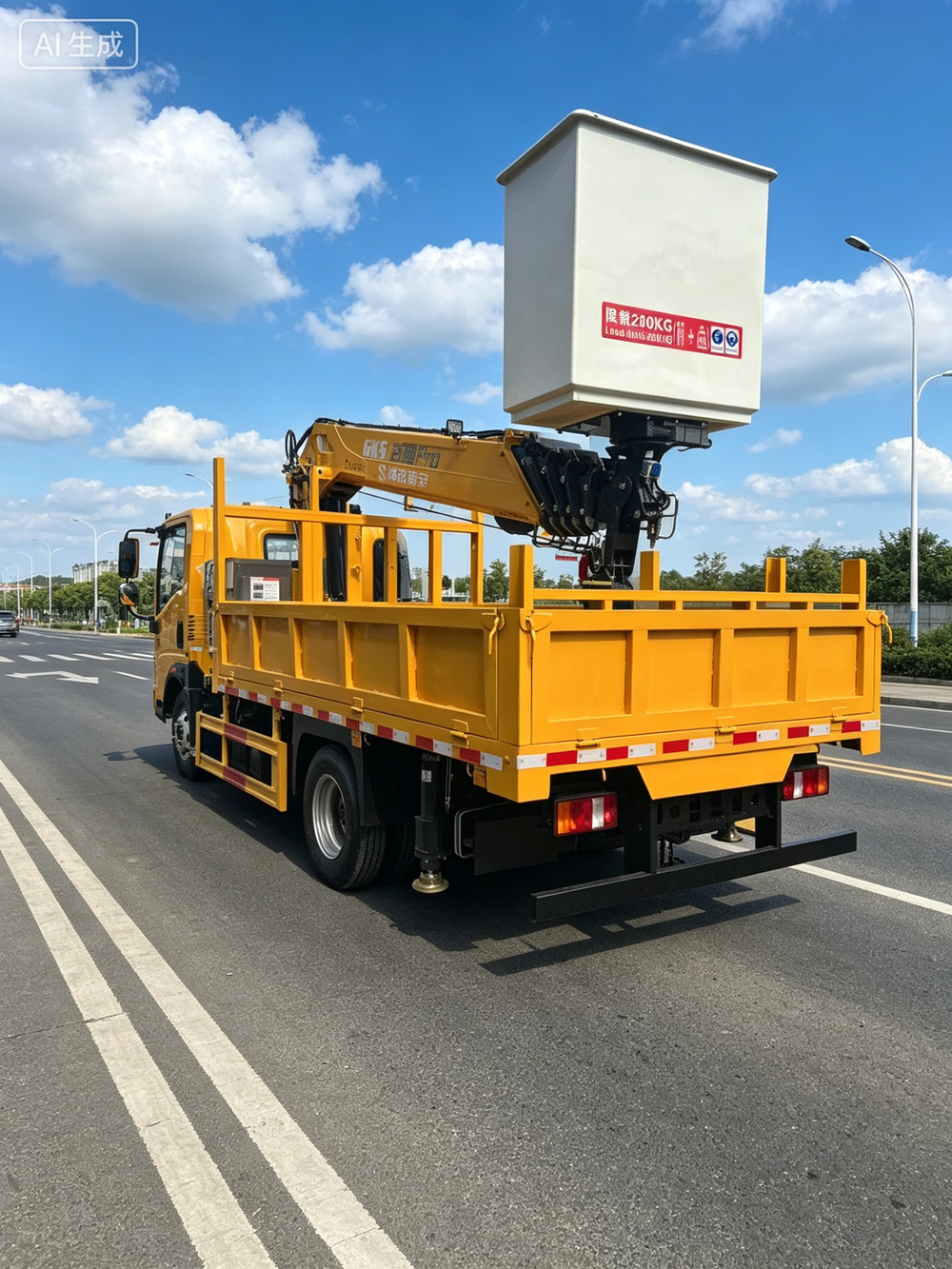

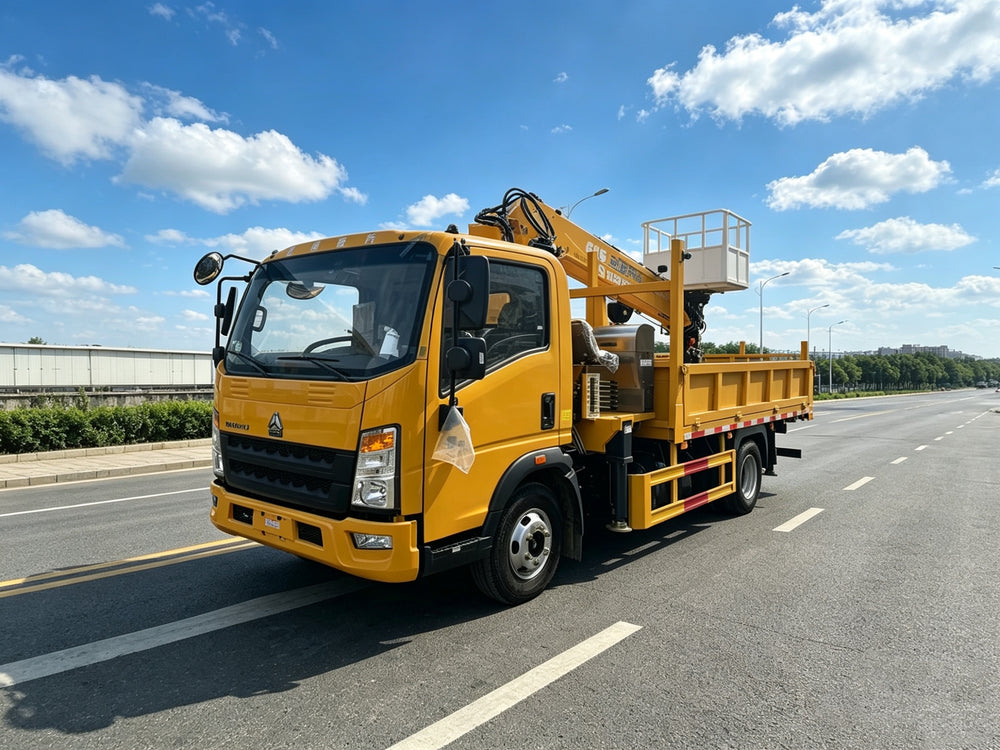

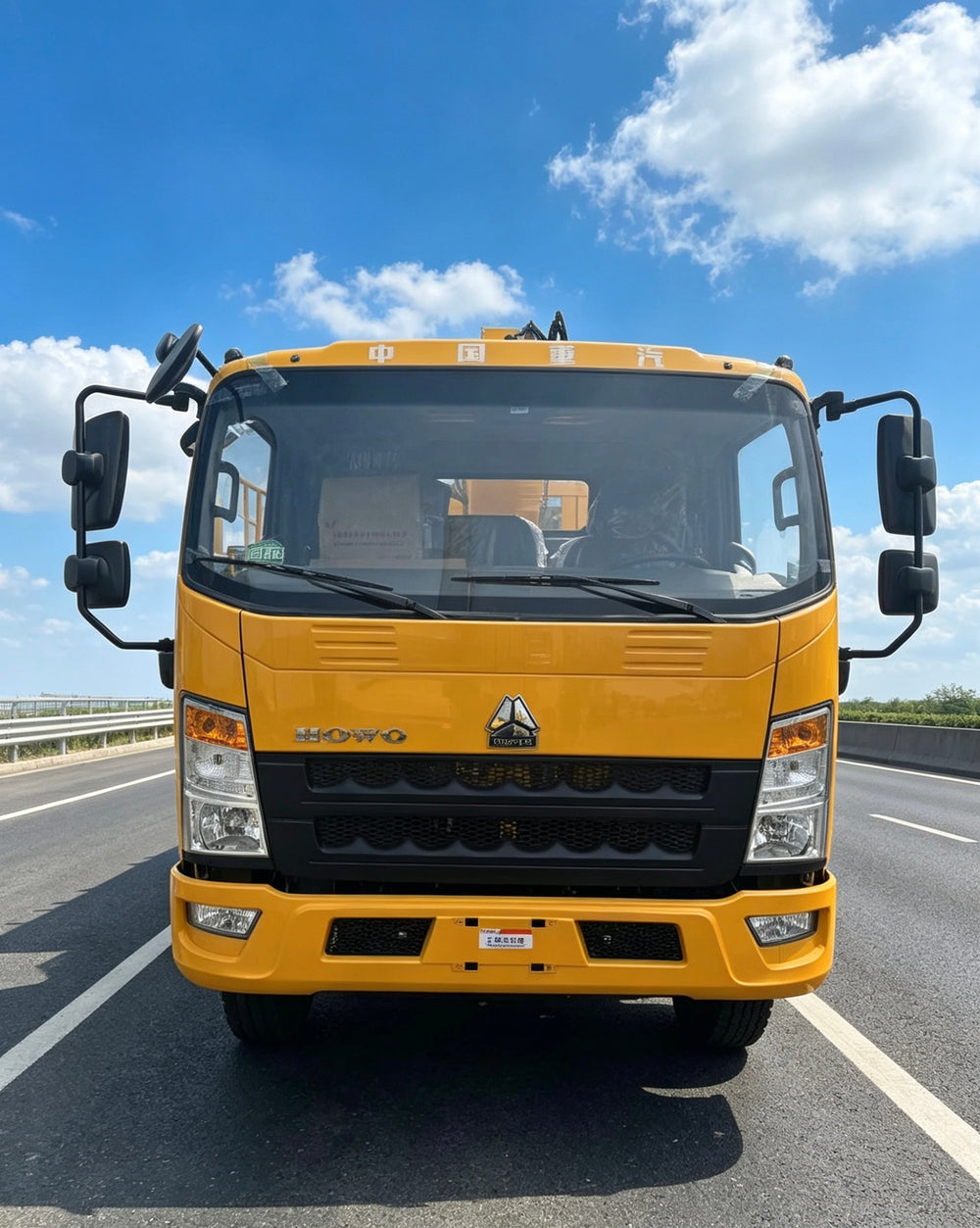

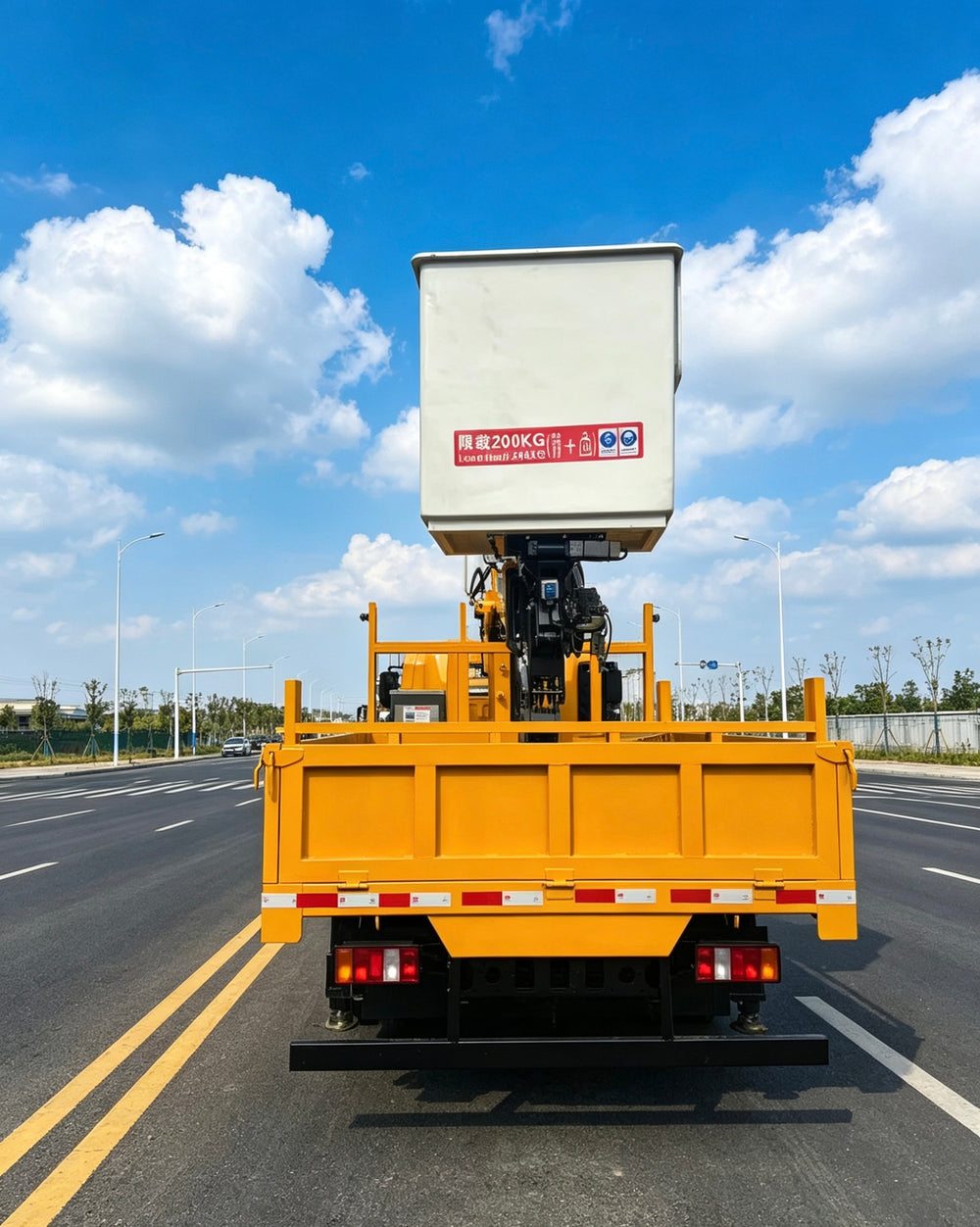

HOWO 20m 3-in-1Aerial Worker
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
HOWO |
|
Drive Type |
Left Hand Drive |
|
Vehicle Size(mm) |
5995X2200X2980 |
|
Net Weight(kg) |
4365kg |
|
Engine Model |
YN4102QBZL |
|
Engine power |
116HP(85kw) |
|
Engine displacements |
3.76L |
|
Emission Standard |
Euro 2 |
|
Wheelbase |
3360mm |
|
Cab Capacity |
2 |
|
Transmission |
6-speed transmission |
|
Front/Rear Axle |
2.7T/7.2T |
|
Tyre Size |
7.50R16 16PR |
|
Container Size |
3300 × 2200 × 550mm |
|
Working angle |
360-degree rotation at will |
|
Crane Brand |
GKS/20 |
|
Maximum lifting height |
20M |
|
Maximum lifting weight |
5T |
|
Working radius |
12M |
|
Platform load rating |
200KG |
|
Platform size |
1500mmx700mmx1100mm |
|
Quantity of telescopic arm |
6-section arm 5-section synchronised telescopic |
|
Operating system |
Renowned electronic control system with wireless remote control |
|
Hydraulic system |
Electro-hydraulic proportional valve with infinitely variable speed control |
|
Hydraulic outriggers |
H-type legs, 4 telescopic legs, individually adjustable |
|
safety device |
Up and down interlock, limit protection, bi-directional hydraulic counterbalance valve |
|
Lateral span of front and rear outriggers |
5150mm/4500mm |
|
Longitudinal span of front and rear outriggers |
3400mm |
|
operating method |
Centre-operated, intelligent remote control |
|
Maximum lifting capacity |
5000kg |
|
winch |
5T |
