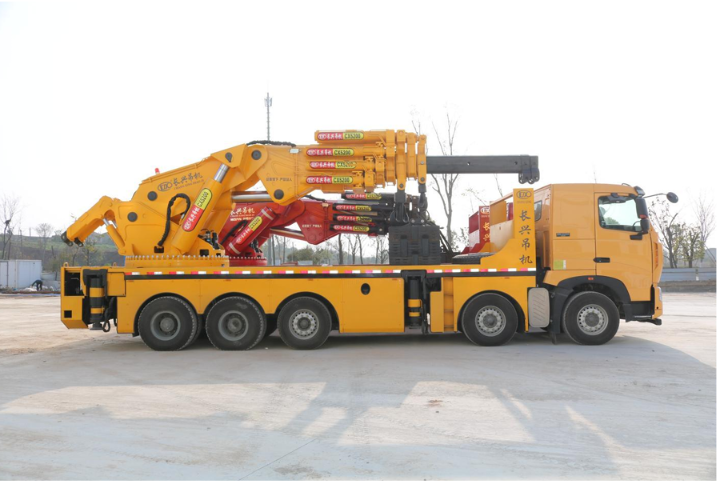

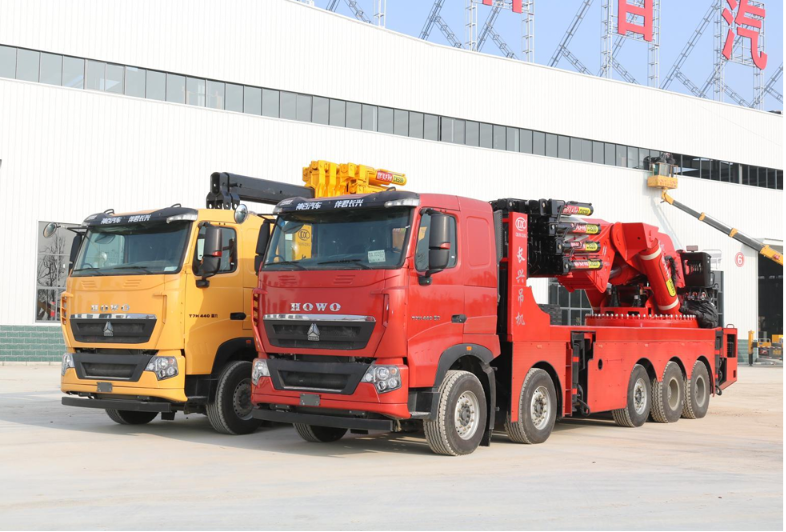

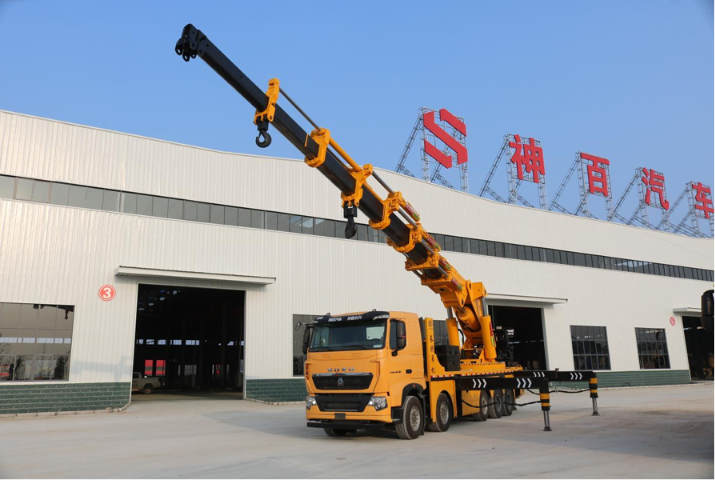

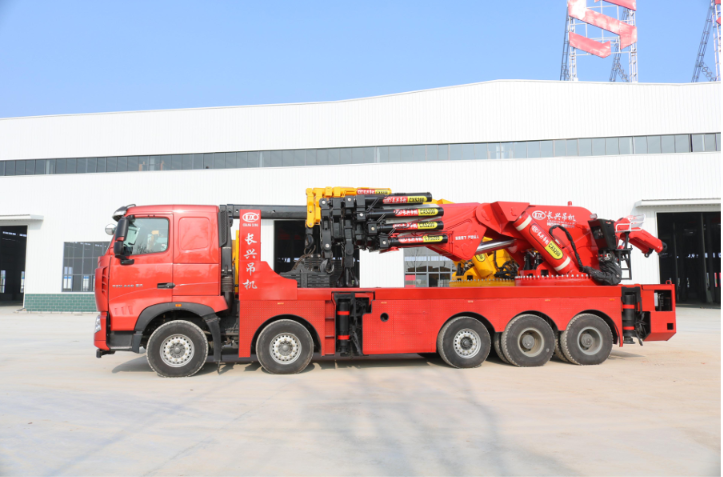

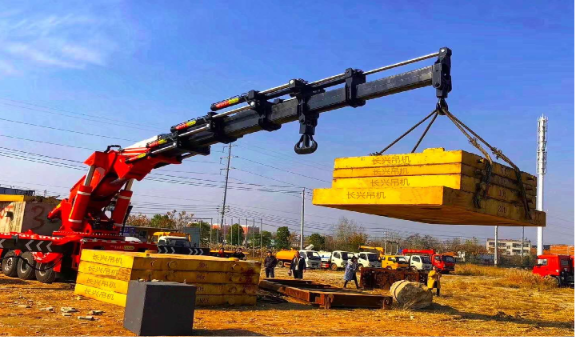

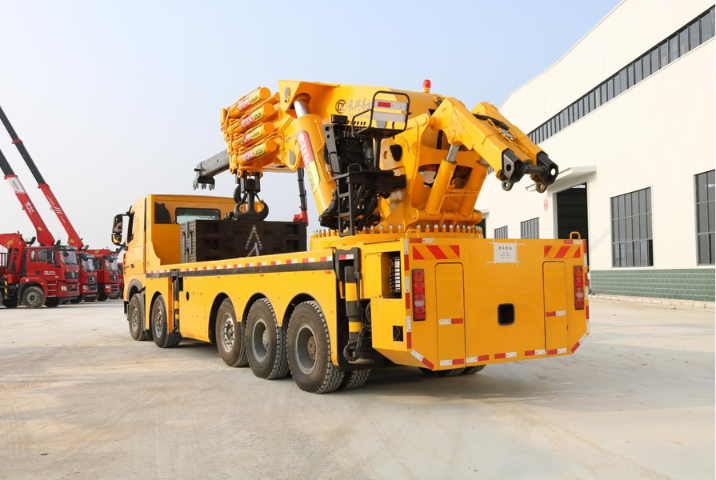

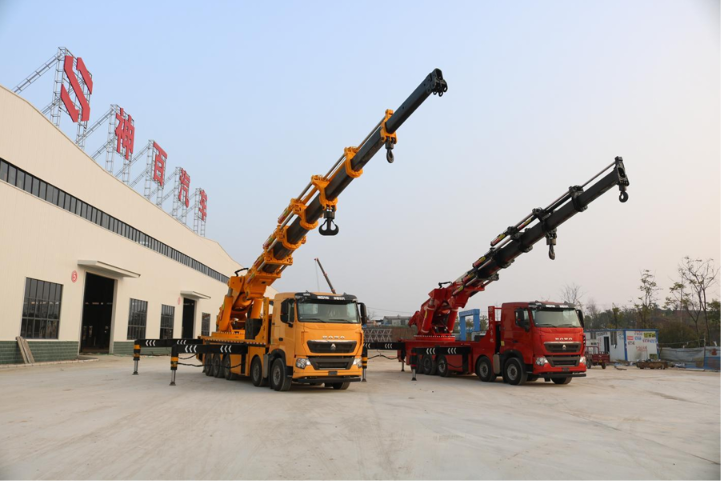

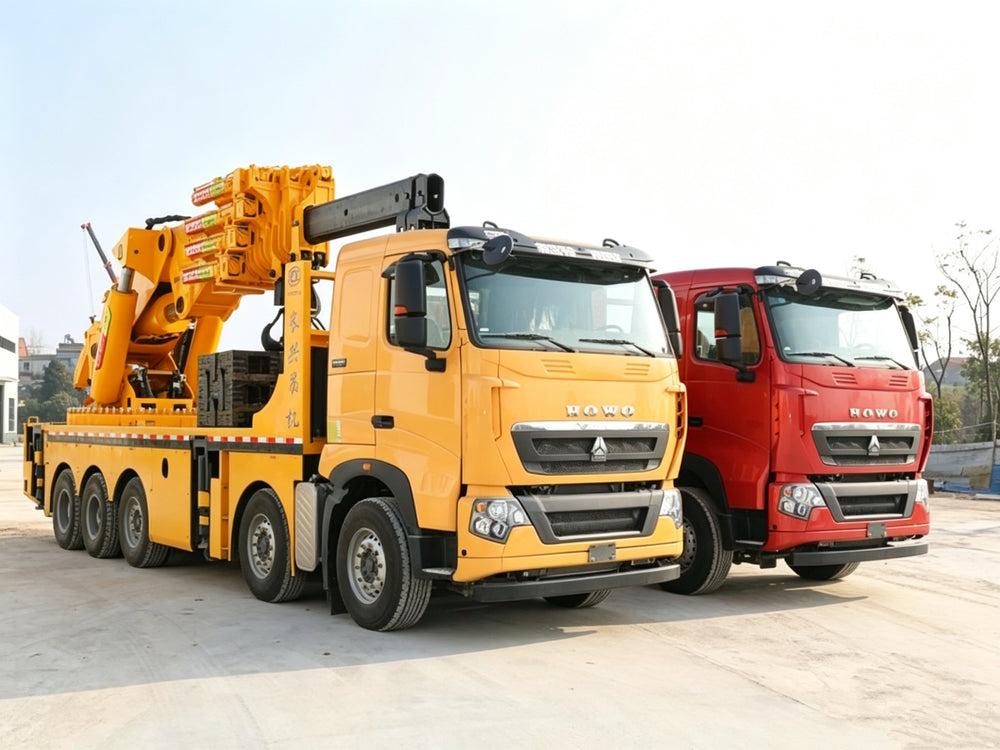

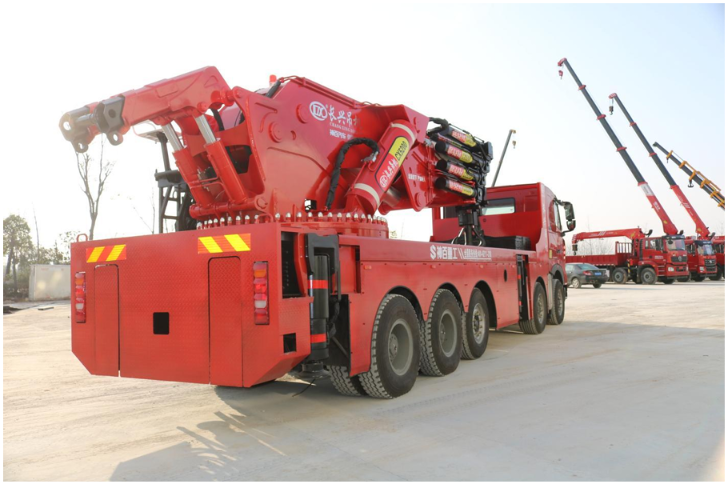

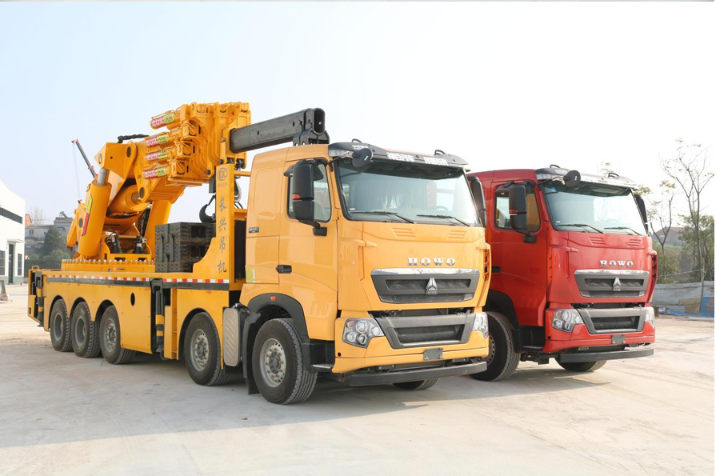

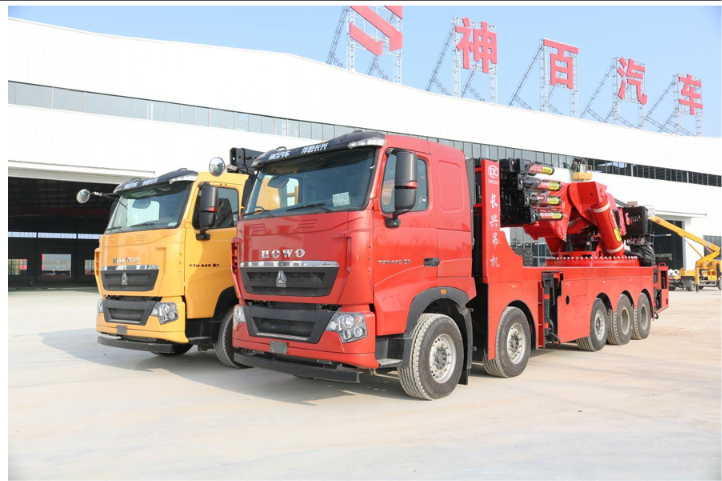

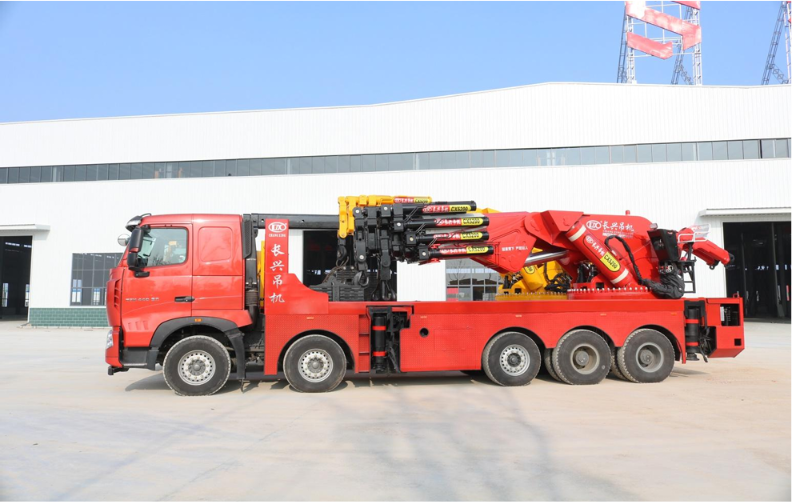

HOWO 10X4 130-ton heavy-duty knuckle boom crane
| Product Specifications | |||
| Vehicle Name | Changxing SQZ5200 Heavy Crane | ||
| Chassis Configuration | |||
| Engine | Sinotruk MAN National VI 440 HP | Gearbox | Sinotruk 12-speed Transmission |

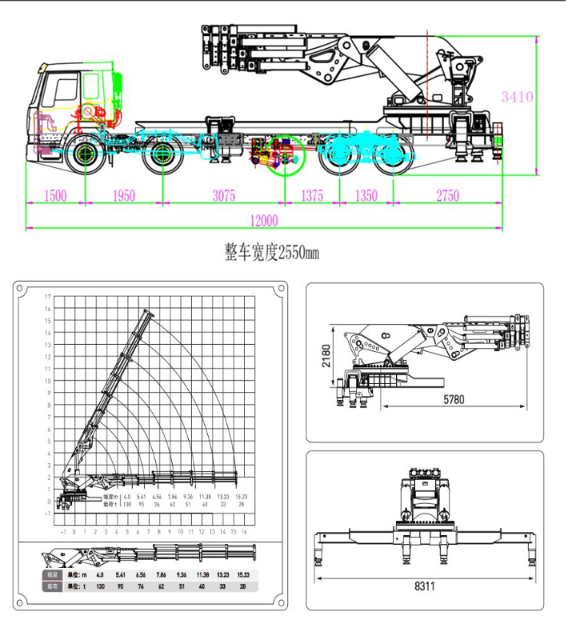

| Overall Dimension | 12000×2550×3480 mm | Gross Mass | 53000 Kg |
| Curb Mass | 52870 Kg | Main Beam Layer | Three-layer Main Beam (8+6+16) mm |
| Axle Quantity | 5 Axles (10×4) | Vehicle Wheelbase | 1950+3625+1375+1350 (mm) |
| Front Axle Capacity | 9 tons | Rear Axle Capacity | MAN 16-ton Wheel Reducer Axle |
| Anti-lock Braking System | ABS | Fuel Tank Capacity | 500L All-aluminum Fuel Tank |
| Tire Quantity | 12+1 | Tire Specification | Drive Wheel: 12.00R20; Non-drive Wheel: 385/65R22.5 |
| Crane Configuration | |||
| Max. Lifting Load | 130 tons at 4m Radius | Working Radius | 15.2 M |
| Outrigger Extension Stroke | 7900 / 8311 mm | Hydraulic Pump Displacement | 108cc/r |
| Hydraulic Pump Pressure | 30MPa | Slewing Angle | 360° |
| Steel Plate Material | HG785 | Welding Wire | ER80-G |
| Oil Cylinder | Precisely machined by top domestic cylinder manufacturer, imported combined oil seal | Oil Pipe | 45MPa National Standard Seamless Tube & Hose |
| Valve Block | Imported Valves & Locks from Italy | Piston Pump | Imported 108 Bent Pump from Italy |
| Slewing Motor | Dual 13500 N·M | Optional Configuration | Remote Control, Auxiliary Jib, Hoist, Counterweight |
