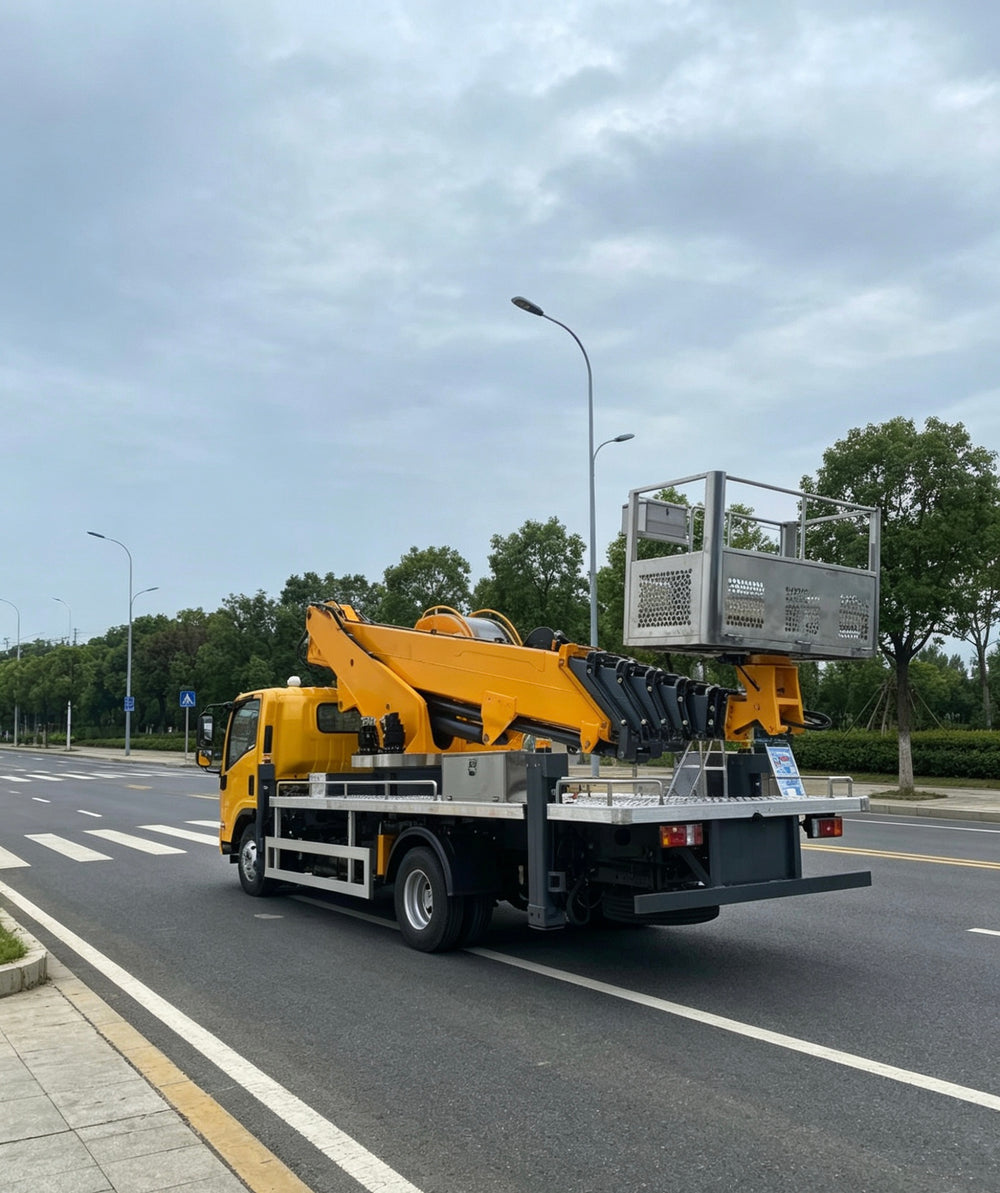

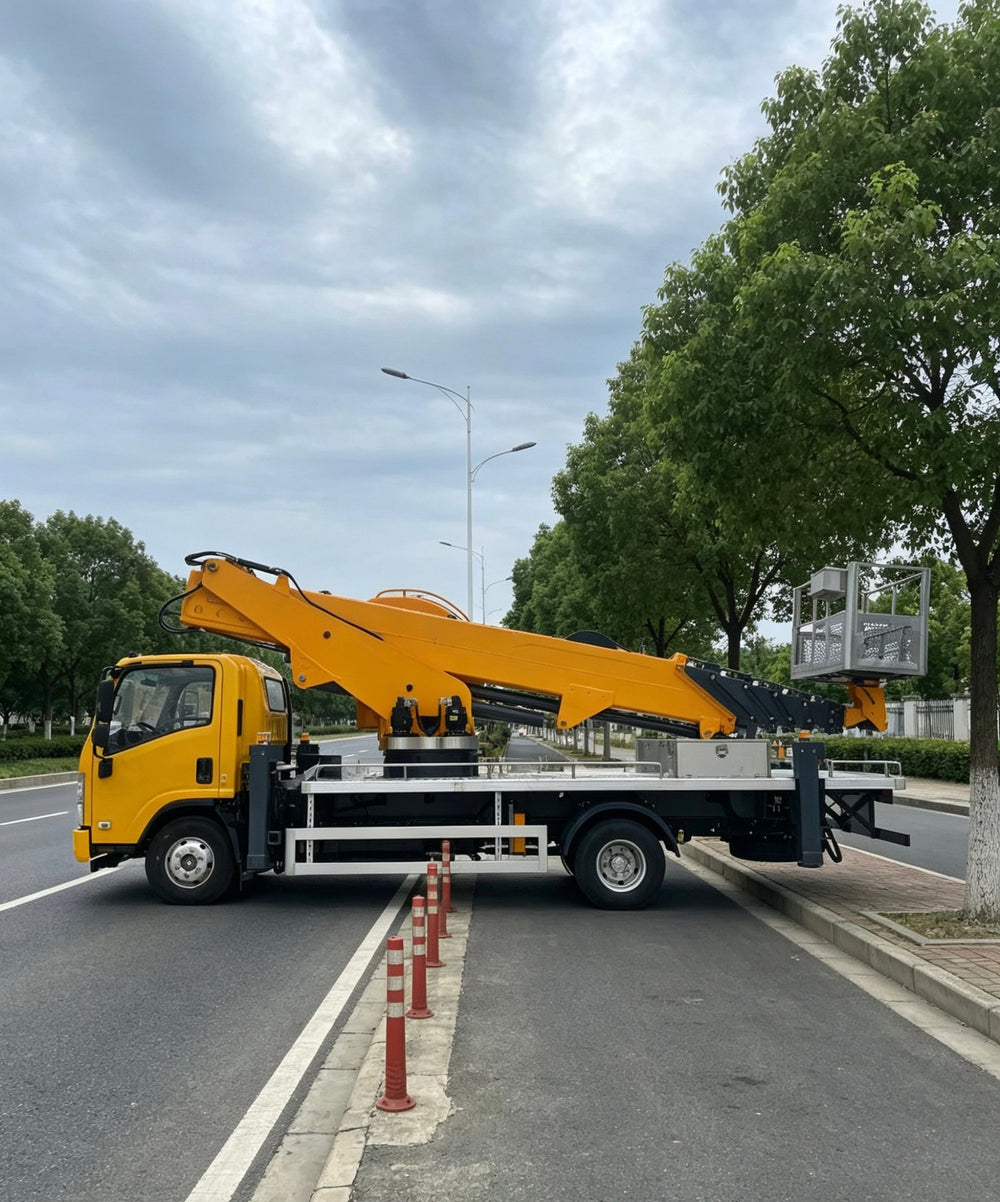

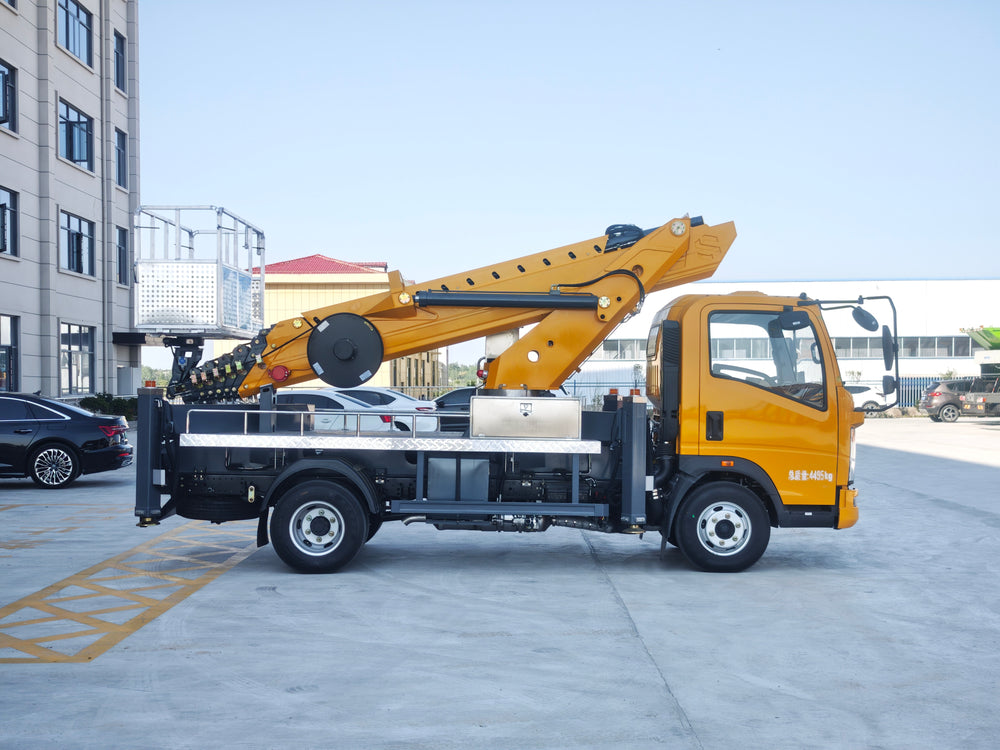

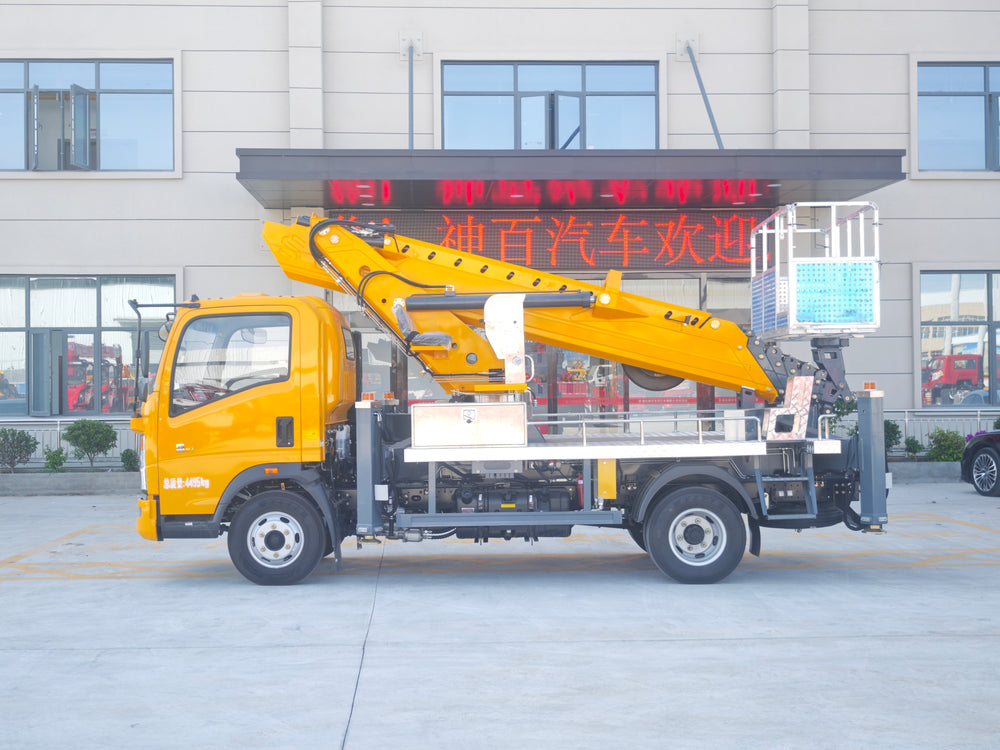

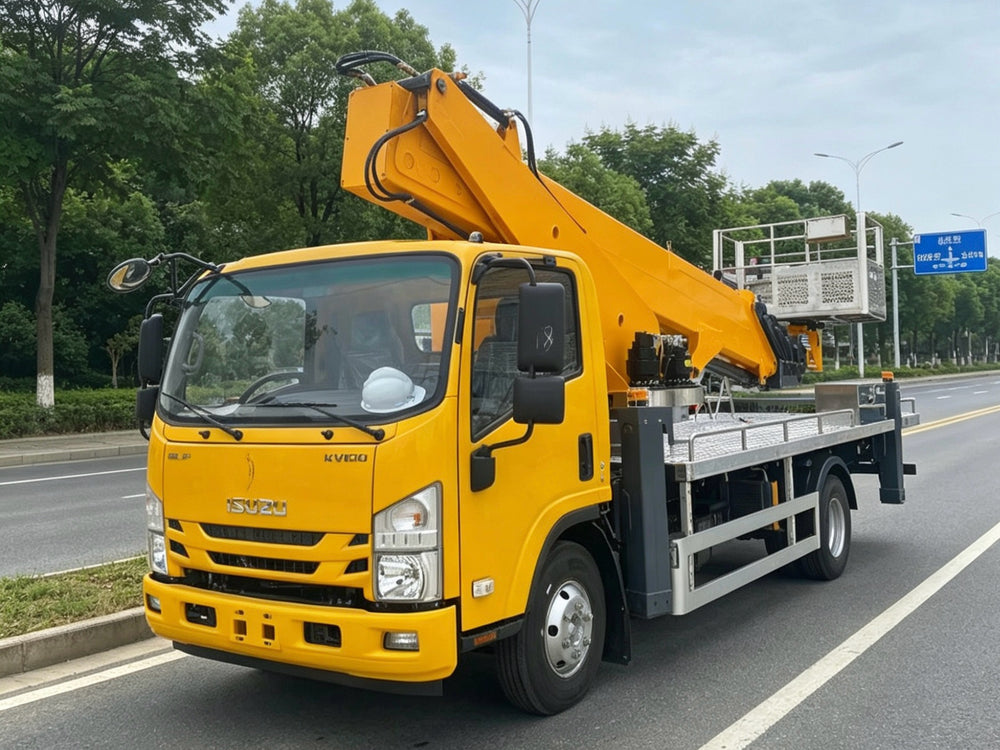

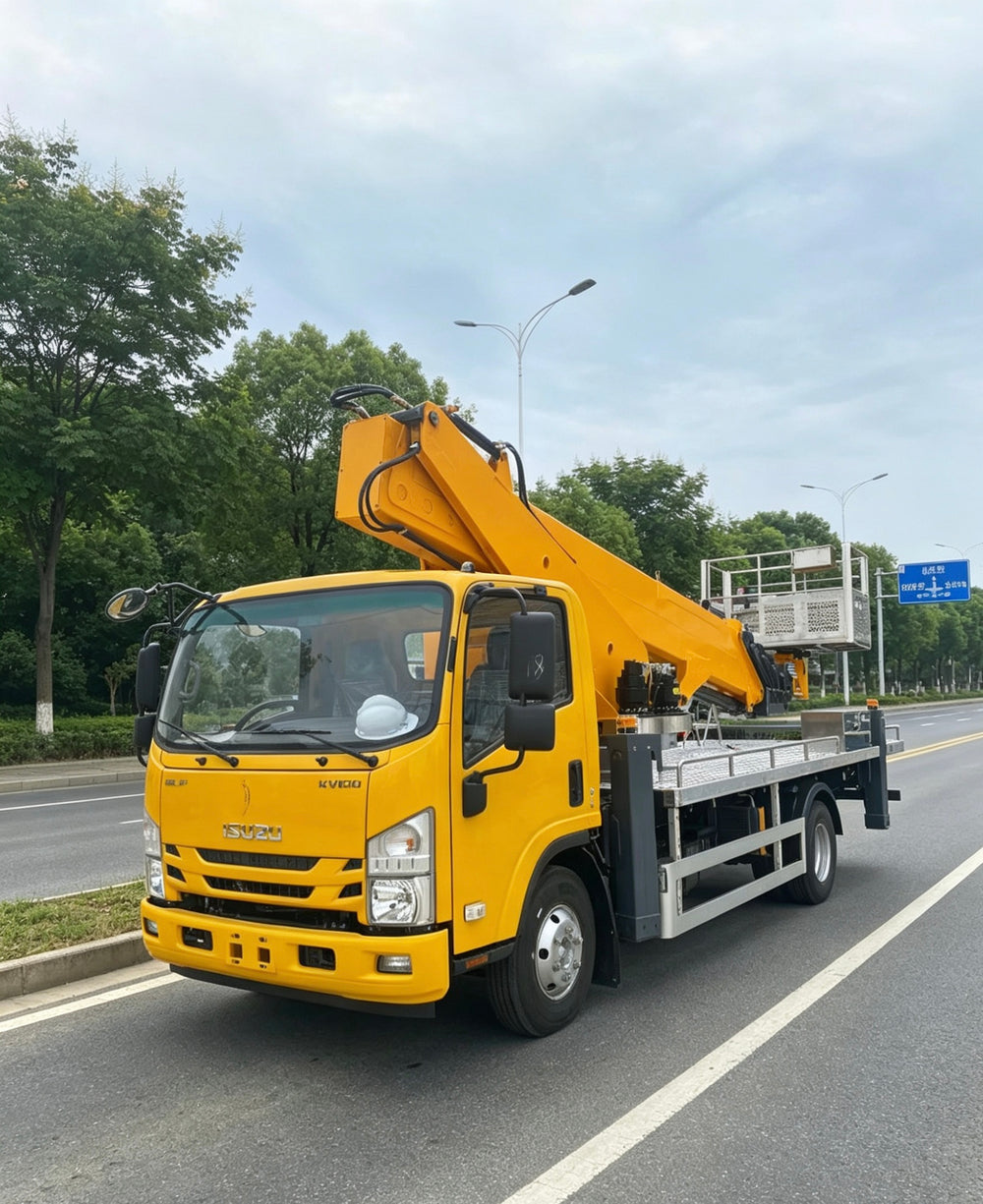

GK35 aerial work vehicle Isuzu
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
ISUZU |
|
Drive Type |
Left Hand Drive |
|
G.V.W |
4495KG |
|
Curb Weight |
4365KG |
|
Emission standards |
Euro 6 |
|
Engine Model |
4KB1-TCG60 |
|
Engine power |
130HP(96kw) |
|
Displacement |
2.5L |
|
Transmission |
Isuzu 5-speed gearbox |
|
Wheelbases |
3360mm |
|
Overall dimensions |
5990mm*2200mm*2900mm |
|
Tires |
700R16 |
|
Front/Rear Axle |
3T/5T |
|
Brake |
Air brake |
|
Other configurations |
Automatic doors and windows, air conditioning，Central control lock |
|
3. Upper Configuration |
|
|
Maximum working height |
33.8meters |
|
Maximum working radius |
16.5meters |
|
Platform rated load |
200KG |
|
Boom slewing angle |
360 degrees |
|
Platform size |
1800mm*700mm*100mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
Maximal arm |
7-section arm, 6-section synchronised telescopic |
|
Operating system |
The operating system adopts a well-known domestic electronic control system and is equipped with wireless remote control and central operation. |
|
Hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle plate |
Steel non-slip walkway. |
|
Safety device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
