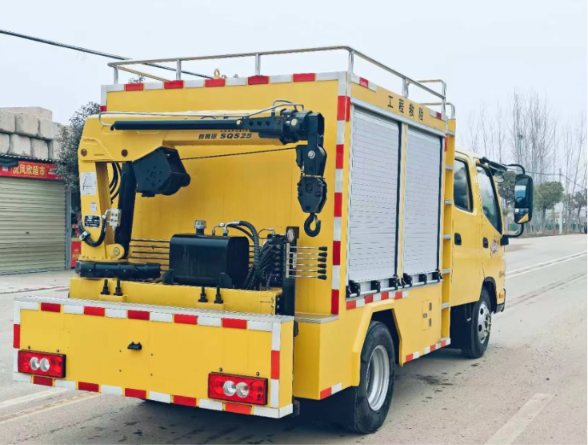

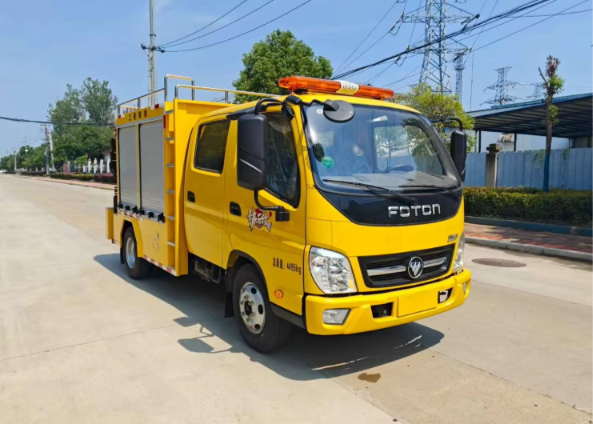

Foton 4X2 Engineering rescue vehicle
|
2.Main parameters of the whole vehicle |
|
|
brand |
Foton |
|
Drive type |
Left hand drive (4X2) |
|
Outer dimensions（mm） |
5960×1960×2660 |
|
Maximum gross mass |
4495kg |
|
curb weight |
4170kg |
|
Top speed |
105km/h |
|
Front/Rear Suspension（mm） |
1110/1490 |
|
Axle load（kg） |
1575/2920 |
|
Number of drivers and passengers (persons) |
2+3 |
|
Chassis main parameters |
|
|
Engine Model |
YN25AL (Yunnei 145 horsepower) |
|
Engine power |
107kw |
|
Displacement |
2.499L |
|
wheelbase |
3360 mm |
|
Fuel types |
diesel fuel |
|
Tire specifications |
7.00R16LT 8PR/7.00R16LT 10PR |
|
Gearbox type |
Manual |
|
Box structure |
|
|
The main frame structure is made of high-quality steel profiles and welded structure, the exterior decorative panels are made of carbon steel plates and welded, and the interior frame is made of aluminum plate skin. |
|
|

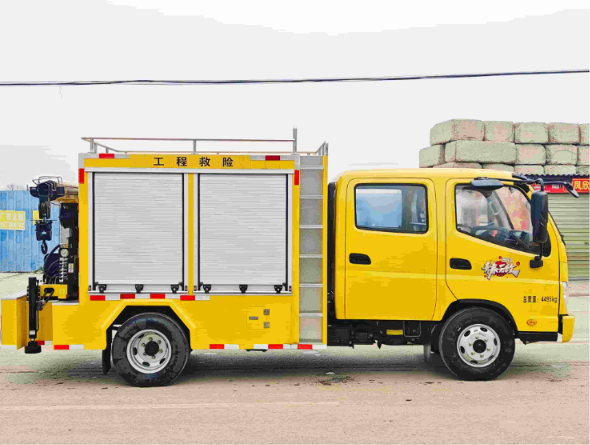

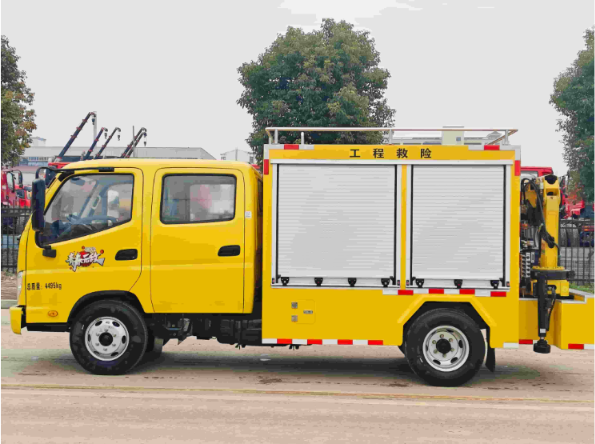

Box layout |
|
|
The enclosure is located at the rear of the passenger compartment, with upward-opening roller shutters on both sides for easy opening. The top of the enclosure is sealed and cannot be opened. It is equipped with guardrails and a ladder, with the ladder to the top located on the passenger side. The equipment compartment can be equipped with storage boxes, generators, control cabinets, submersible pumps, water pumps, cable reels, and drainage hoses as needed. |
|
|

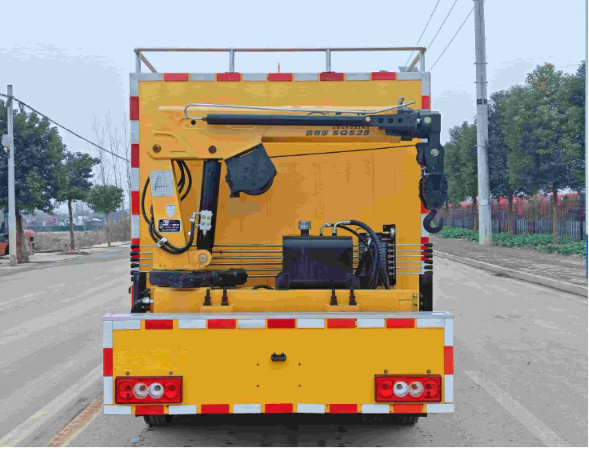

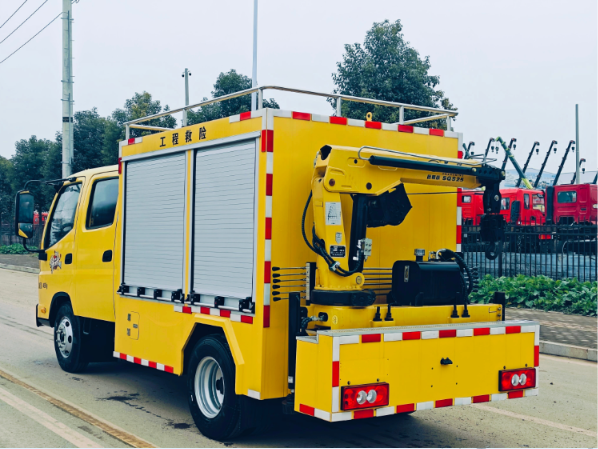

crane |
|
|
The rear of the housing is fixed to the main beam with U-bolts. It has a three-section boom plus a one-section hand arm, and telescopic fixed outriggers on both sides. Operation method: remote control from the ground or manual operation. |
|
|
Overall layout |
|
|
The vehicle consists of two main parts: the cab and the body. The front of the body is the crew compartment, and the rear is the box body and the truck-mounted crane. |
|
|
Truck-mounted crane parameters |
|
|
Crane Model |
SQS25-4 |
|
Maximum lifting torque |
27 kN.m |
|
Maximum lifting mass |
1600Kg |
|
Maximum reach arm length |
4.8m |
|
Maximum lifting height |
6m |
|
Hydraulic system rated flow |
25L/min |
|
fuel tank capacity |
40L |
|
Hydraulic system rated pressure |
18MPa |
|
Recommended power |
15Kw |
|
boom cross-section |
hexagon |
|
outrigger structure |
Single-cavity nested square support leg |
