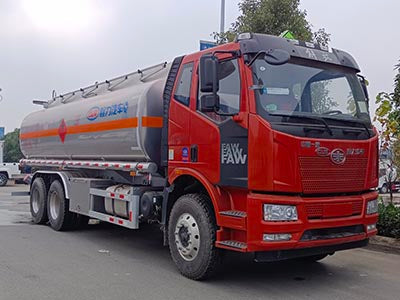

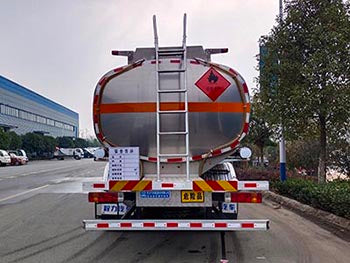

FAW J6P 6×4 LPG
| Category | Item | Detailed Specification | Additional Notes |
|---|---|---|---|
| Chassis Parameters | Chassis Brand & Model | FAW J6P 6×4 Hazardous Goods Special Chassis | 6x4 layout: 1 steering front axle + double rear drive axles |
| Engine | Xichai CA6DM2 series diesel engine, 420HP / 460HP | Euro 5 / Euro 6 emission standards optional | |
| Gearbox | 12-speed manual synchronized transmission | Heavy-load matching, stable long-distance transport | |
| Wheelbase | 3800+1400mm | Standard factory wheelbase | |
| Tire Model | 12R22.5 heavy-duty radial tires, total 10 pcs | Wear-resistant for intercity gas delivery | |
| Cab | J6P double sleeper dangerous goods dedicated cab | With A/C, electric windows, central door lock, explosion-proof interior circuit | |
| Brake System | Dual-circuit air brake, ABS, ASR, exhaust auxiliary brake | Fully compliant with hazardous chemical transport safety codes | |
| Steering System | Hydraulic power-assisted steering | Light operation under full load | |
| LPG Pressure Tank Body | Tank Material | Q345R special pressure vessel steel | National standard boiler plate, anti-pressure & anti-corrosion |
| Design Working Pressure | 1.77MPa | Special for liquefied petroleum gas storage & transit | |
| Tank Volume | 20–25 cubic meters | Single integral pressure tank compartment | |
| Transport Medium | Liquefied Petroleum Gas (LPG), propane, butane | Class 2 flammable gas dangerous goods | |
| Tank Internal Structure | Cylindrical pressure vessel, built-in reinforced anti-wave baffles | Reduce liquid sloshing during driving, improve stability | |
| Top Platform Fittings | Anti-slip safety walkway, aluminum climbing ladder, multi-function manhole assembly | Equipped with safety relief valve, pressure gauge, liquid level indicator | |
| Loading & Unloading Assembly | LPG dedicated stainless steel pipeline, emergency bottom cut-off valve, gas transfer pump, quick disconnect couplings | Fast filling & discharge, automatic emergency shut-off function | |
| Full Vehicle Explosion-Proof & Safety Configuration | Hazard Warning Marks | Class 2 flammable gas diamond warning sticker, "Dangerous Goods" rear sign, full perimeter reflective strips | Meet UN & GB dangerous goods transport marking standards |
| Anti-static & Explosion-proof Parts | Full vehicle explosion-proof electrical components, exhaust spark arrester, static grounding chain | Eliminate static spark fire risks | |
| Emergency Safety Gear | 2 sets of 4kg ABC dry powder fire extinguishers, emergency pressure relief device, dedicated maintenance toolbox | Standard for gas tanker emergency disposal | |
| Crash Protection Devices | Rear anti-under-running crash beam, side anti-collision guardrails, front buffer baffle | Prevent secondary damage in traffic accidents | |
| Standard Cab Interior Equipment | Control & Comfort Parts | Multi-functional steering wheel, constant temperature air conditioner, adjustable shock-absorbing seats, storage cabinet, hazard alarm system | Factory standard matching |
| Full Lighting System | LED composite headlights, side marker lights, rear brake & warning lights, clearance outline lamps | Comply with international road lighting regulations | |
| Optional Upgrade Customization Items | Tank Body Upgrade | Thermal insulation coating, multi-compartment separated tank, anti-corrosion lining | For mixed transport of multiple gas media |
| Transfer System Upgrade | High-flow LPG pump, digital flow meter, automatic hose reel, remote operation controller | Boost loading/unloading efficiency | |
| Driving Safety Upgrade | TPMS tire pressure monitoring, LDWS lane departure warning, reversing visual camera, forward collision warning | For overseas high-standard safety certification | |
| Export Global Customization | Right-hand drive (RHD) refit, overseas emission calibration, customized tank capacity, full set of export inspection documents | Supports export to Middle East, Africa, Southeast Asia gas stations & energy projects |
