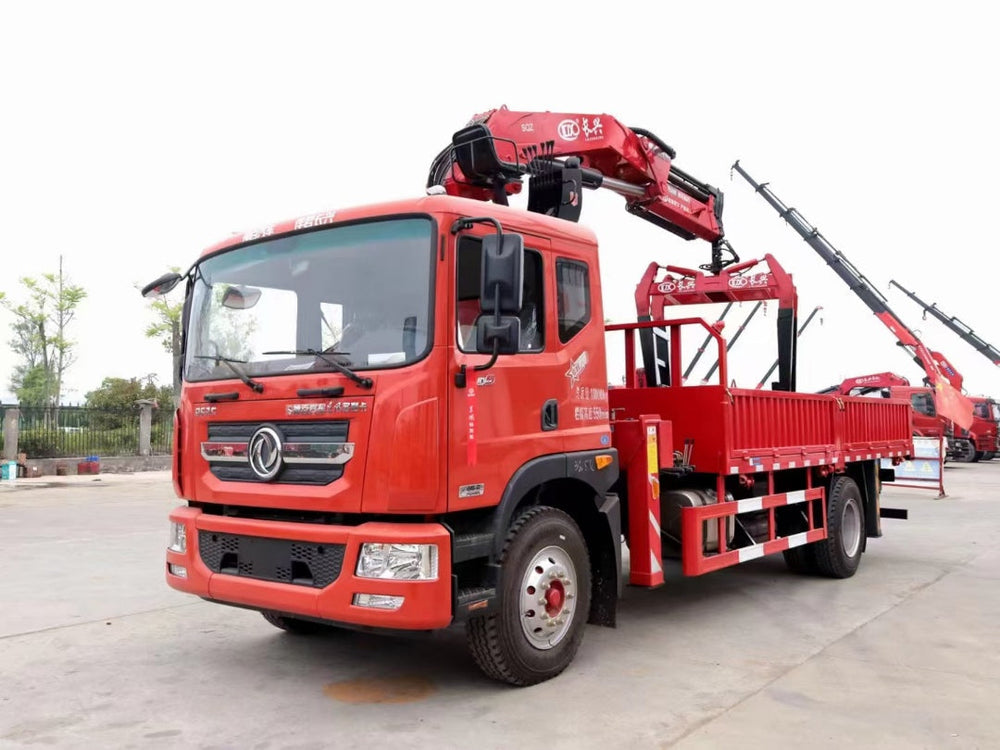

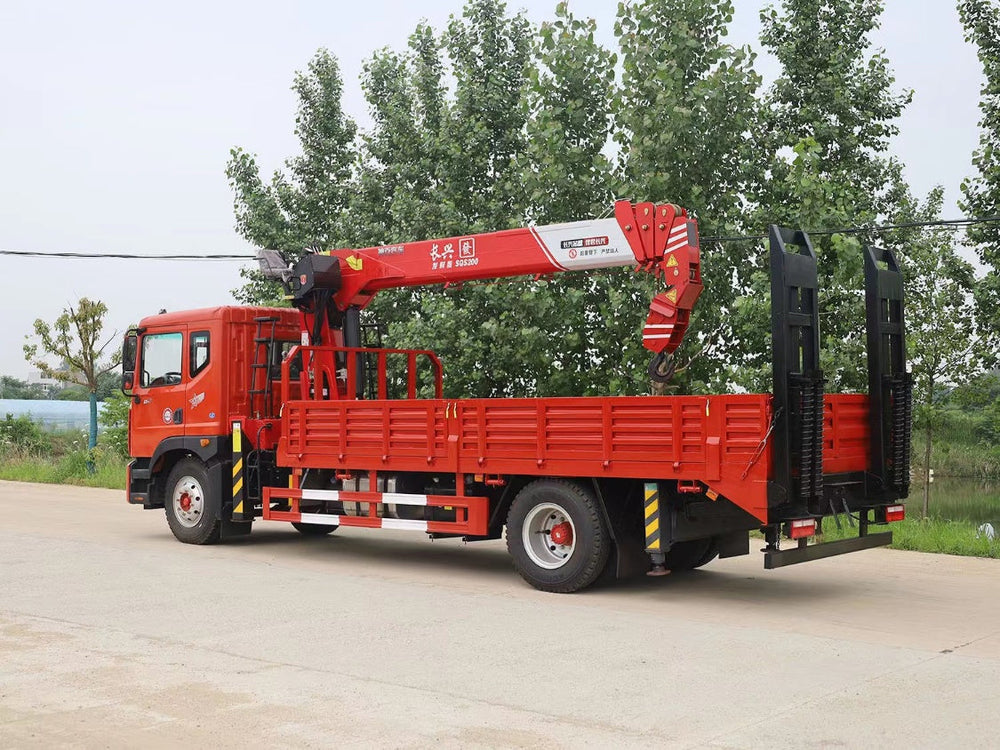

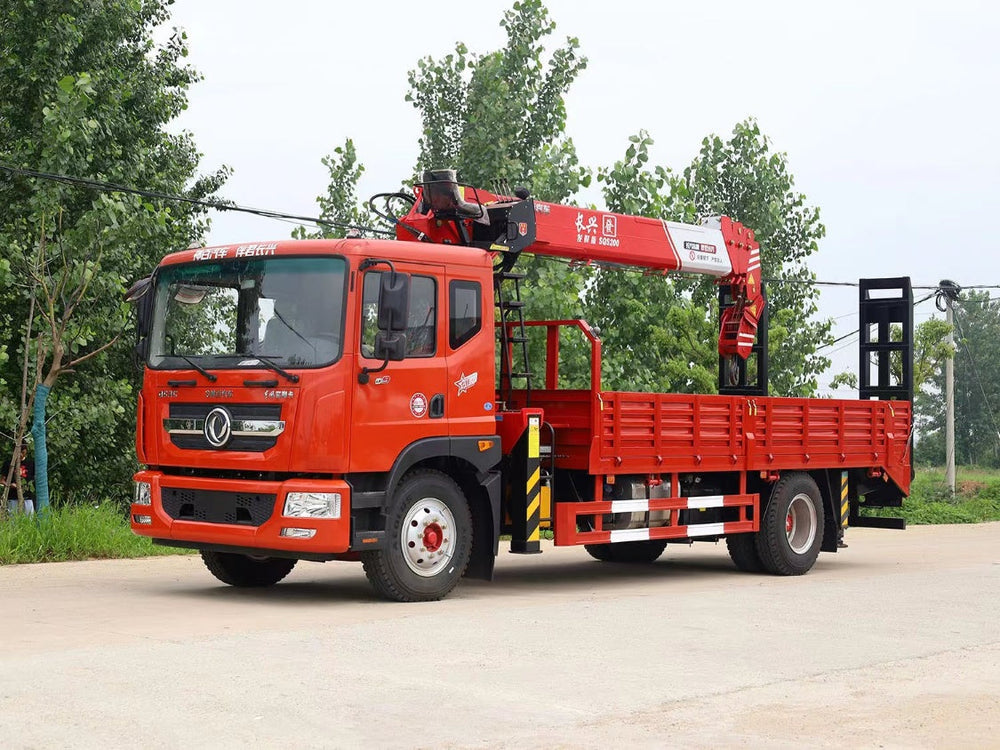

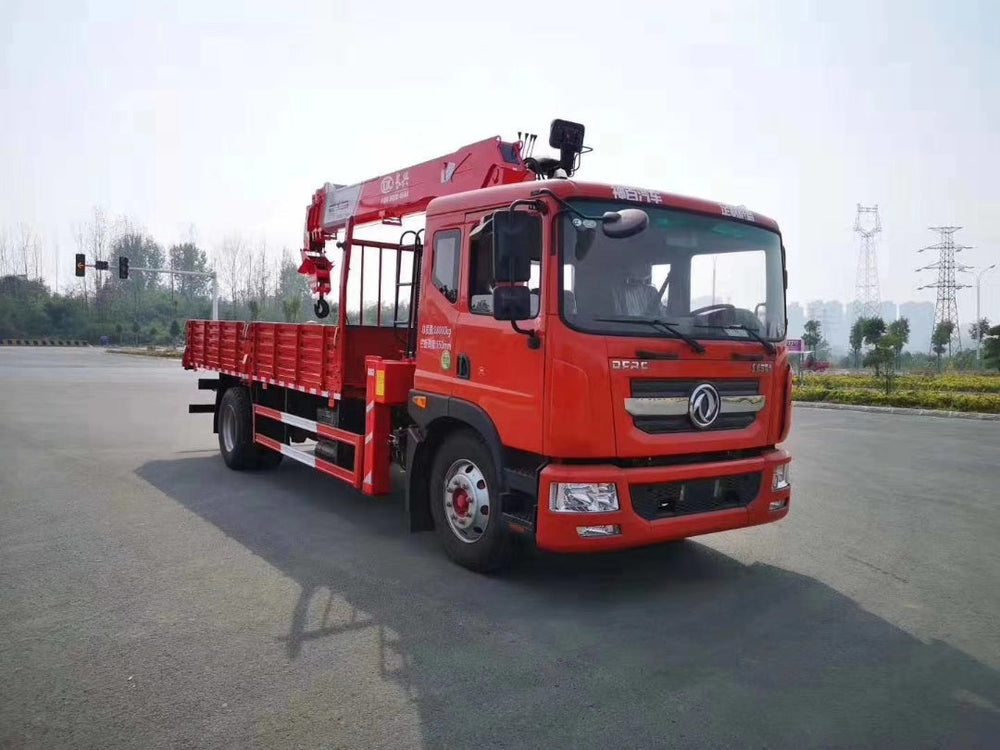

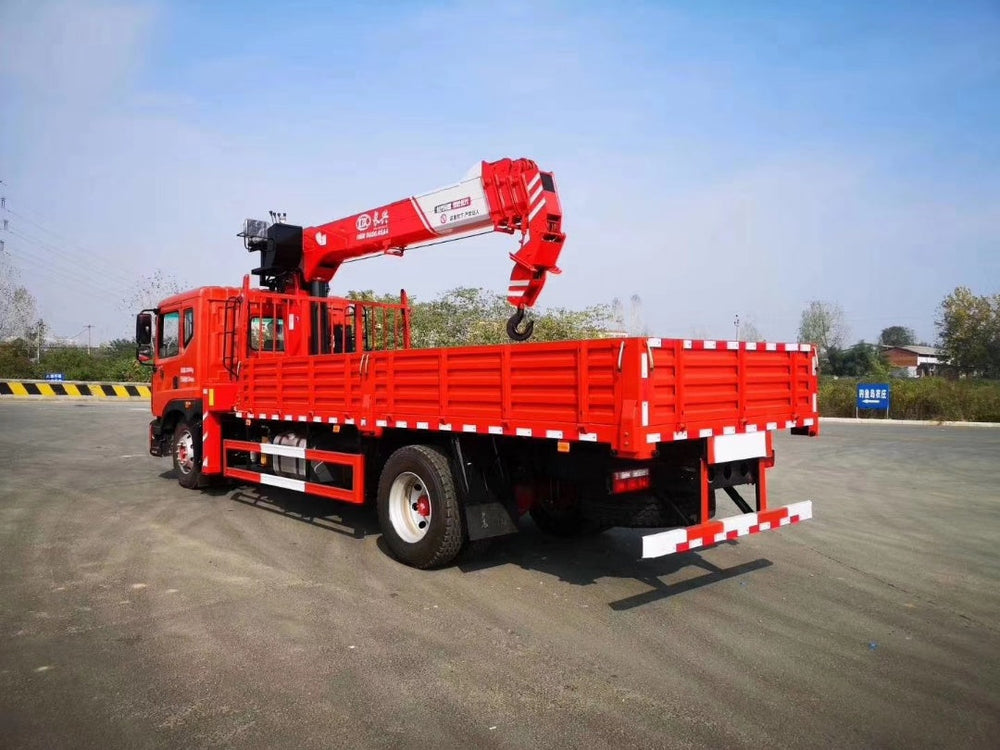

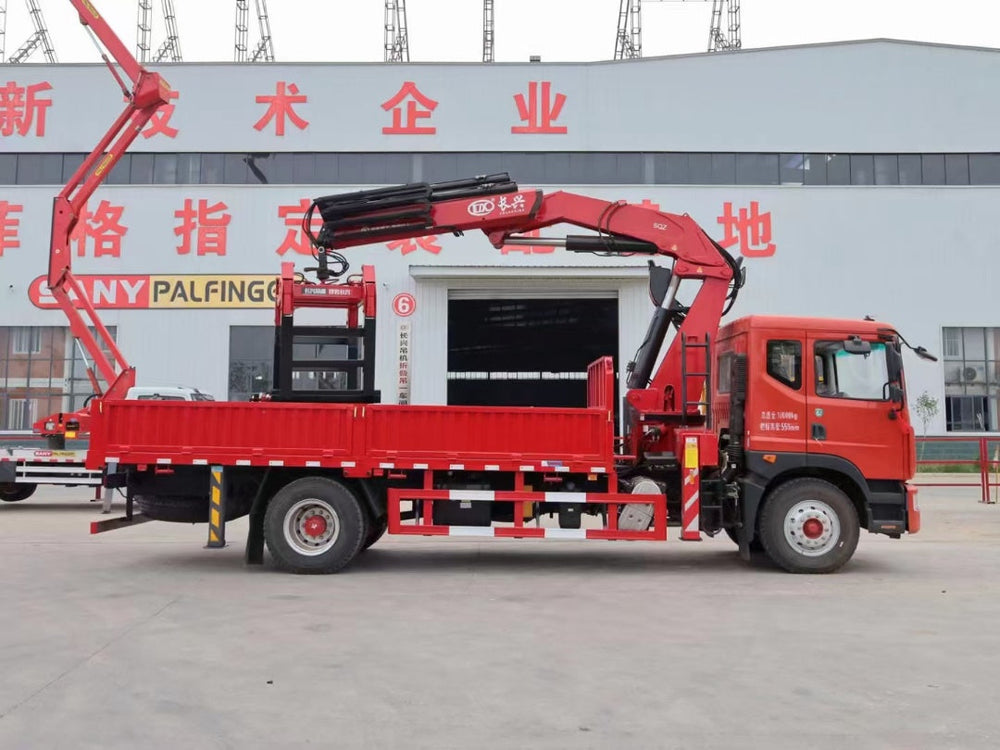

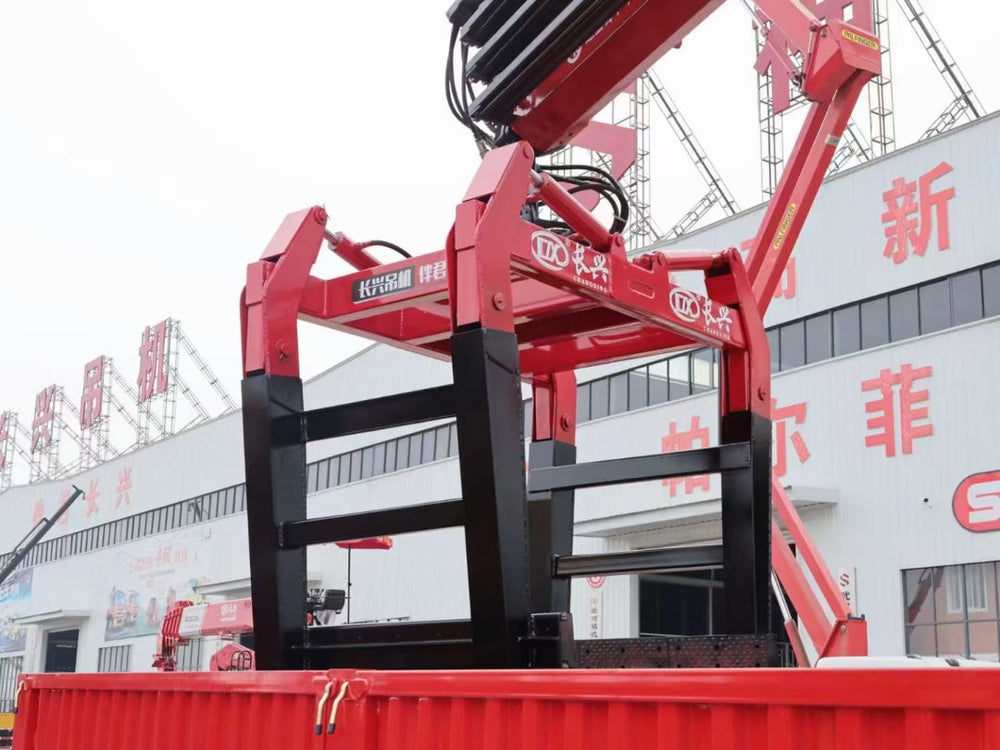

DongFeng E6 200HP Knuckle Boom Crane
| Item | Parameter |
|---|---|
| Chassis Origin & Warranty | Dongfeng Motor Co., Ltd. OEM chassis; 3-year / 500,000 km warranty, quality guaranteed |
| Announcement Model | ABC5180JSQE6 |
| Chassis Model | EQ1185LJ9CDE |
| Engine | Guangxi Yuchai Machinery Co., Ltd. YCS04200-68, 200HP, 4156mL displacement |
| Gearbox | Fast 8-speed manual with high-low range |
| Front/Rear Axle | Front 3.9T / Rear 9T, Dongfeng OEM Dana axles |
| Tire | 10.00R20 steel wire radial tire |
| Wheelbase | 5300mm / 4500mm |
| Fuel Tank | 280L aluminum alloy |
| Overall Vehicle Dimension | 9000×2500/2550×3600/3700/3900mm |
| Cargo Box Dimension | 5800/5600/5600 × 2400/2450 × 550/600mm |
| Gross Vehicle Weight (GVW) | 18000kg |
| Kerb Weight | 11500kg / 11000kg |
| Rated Payload | 7305kg / 6805kg |
| Chassis Frame | 300mm high-strength 3-layer through-type girder, enhanced load capacity |
| Power Take-Off (PTO) | OEM factory PTO, reliable quality |
| Compliance | Whole vehicle weight regulation-compliant, nationwide registration guaranteed |
| Price Advantage | Most cost-effective model in the same class |
| Standard Configurations | Multi-function steering wheel, OEM air conditioning, airbag suspension driver seat, central door lock, electric power windows, ABS, exhaust brake, engine brake, LED headlamp |
