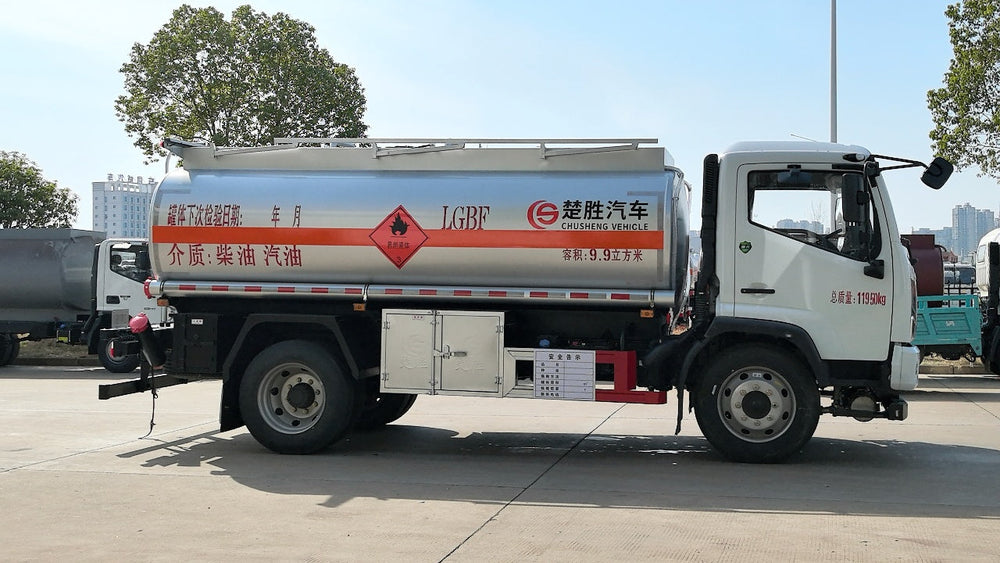

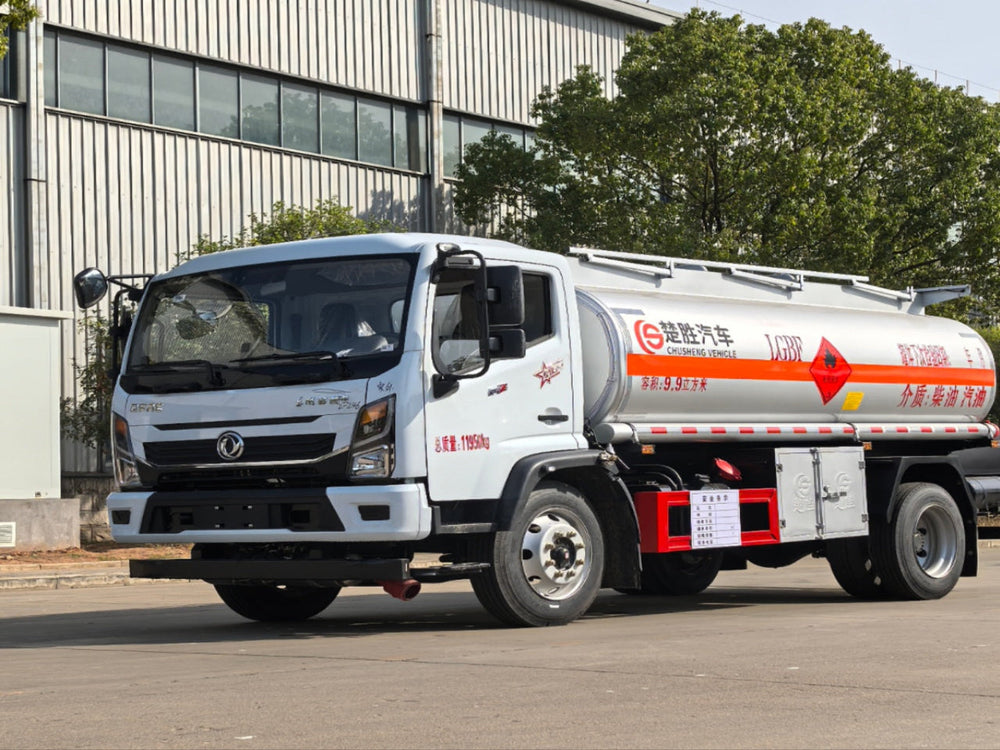

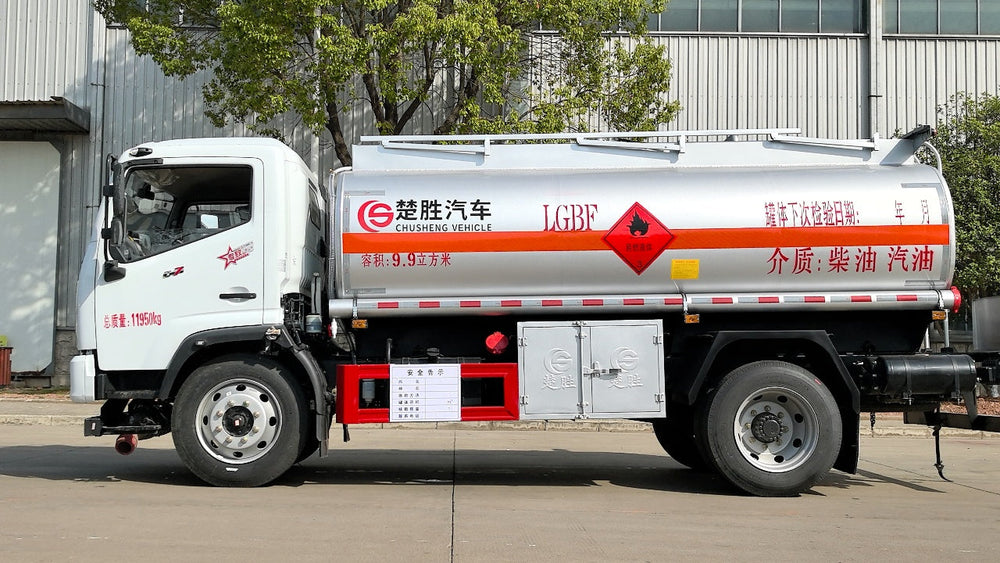

DongFeng 9.9m³ Oil Tank Truck
1. Chassis Configuration
| Parameter | Value |
|---|---|
| Cab Type | New T17L Luxury 2100mm Wide-Body Cab |
| Wheelbase | 3800 mm |
| Engine Power | Yuchai 170 HP |
| Transmission | Fast 8-speed Gearbox with Synchronizer |
| Final Drive Ratio | 4.875 |
| Front Axle Rated Load | 3.5 Tons |
| Rear Axle Rated Load | 7.5 Tons |

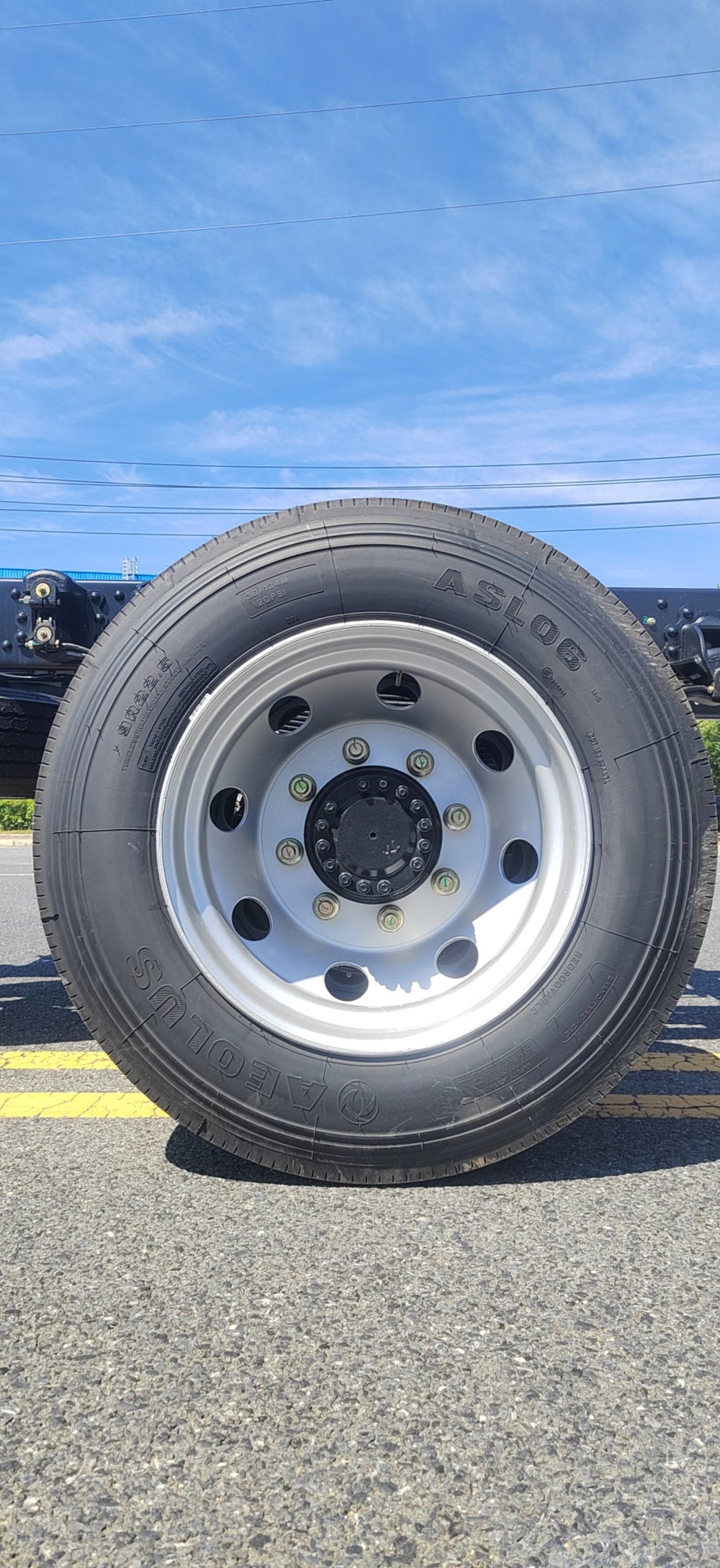

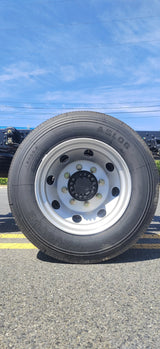

| Tire Specification | 9R22.5 Vacuum Explosion-Proof Tires |
| Maximum Torque | 550 N·m |
| Frame Specification | 192mm Double-Layer Frame |
| Instrument Panel | LCD Digital Instrument Cluster |
| Steering System | Power Steering |
| Clutch System | Clutch Booster |
| Brake System | Exhaust Brake + Air Brake |

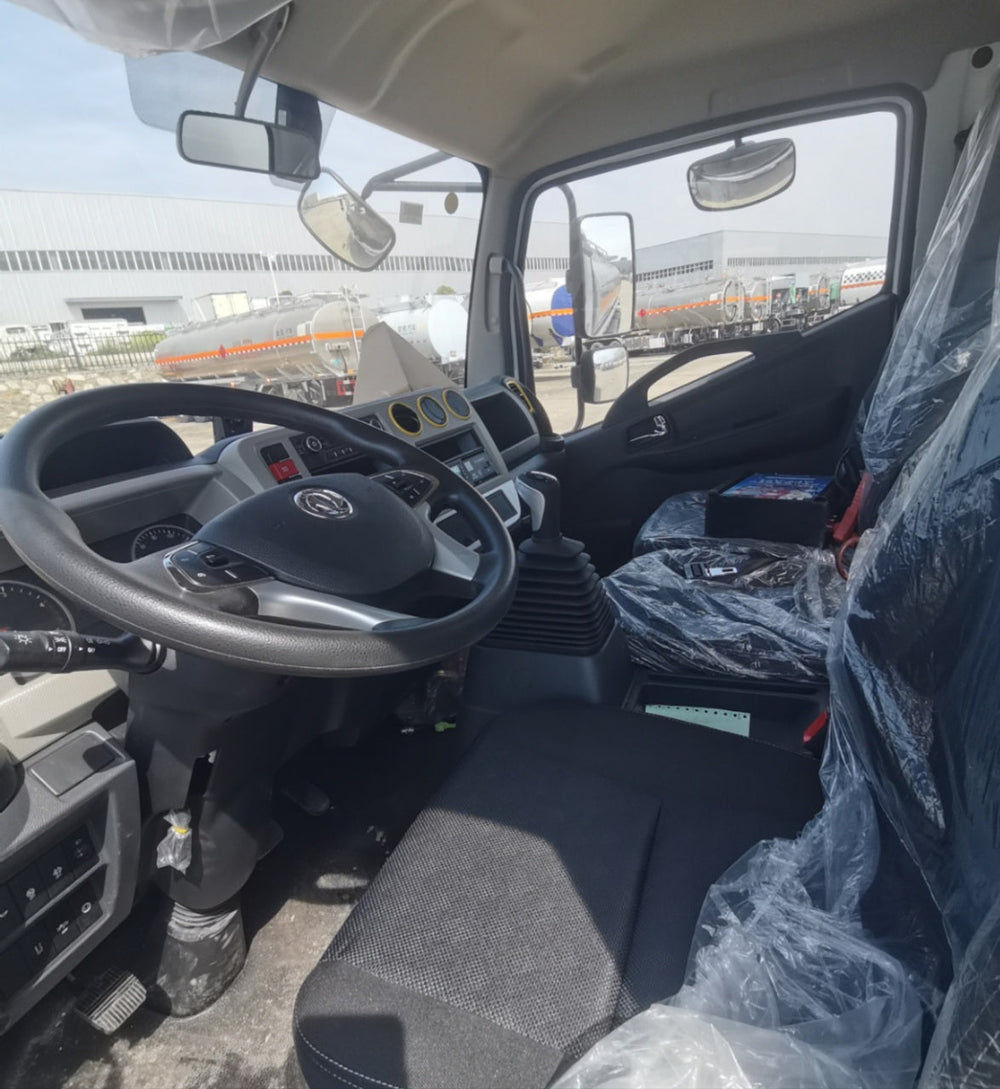

| Cab Interior | Original Factory Air Conditioner, Multifunctional Steering Wheel, Electric Windows, Central Door Locking |
| Driving Assistance | Cruise Control, LED Daytime Running Lights, Driving Video Recorder |
| Safety System | ABS Anti-Lock Braking System |
| Exhaust System | Front-Mounted Exhaust Pipe |
| Electrical System | Main Power Switch, ECU Speed Limiter |
| National VI Safety Features | Lane Departure Warning System, Forward Collision Warning System |
| Licensing Status | Ready for Immediate Vehicle Registration |
2. Tank Body Configuration
| Parameter | Value |
|---|---|
| Tank Material | High-Quality Carbon Steel |
| Tank Announced Volume | 9.9 m³ |
| Tank Compartments | Single Compartment |

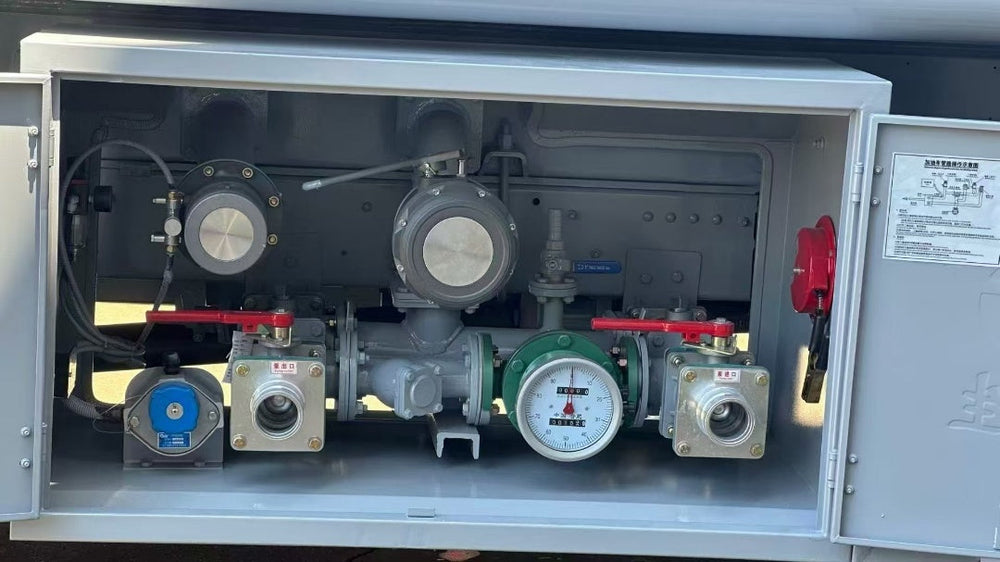

| Pump System | Built-in pump with both suction and discharge capability |
| Anti-Surge Baffles | Built-in Wave-Type Anti-Surge Baffles |
| Emergency Shut-Off Valve | Equipped |
| Bottom Valve | Equipped with bottom valve closing reminder device |
| Tank Filling Port | European Standard Manhole Cover |
| European Standard Accessories | Full set: bottom loading system, vapor recovery system, anti-overflow alarm device |
| Fuel Dispenser | Large-Flow Tax-Controlled Fuel Dispenser |
| Dispenser Hose | 15m Automatic Retractable Hose with Fuel Nozzle |
| Toolbox | 1 Unit |
| Folding Guardrail | 1 Unit |
| Static Grounding Reel | Equipped |
| Static Grounding Terminal | Equipped |
| Oil Delivery Pipes | 2 pipes equal to tank length |
| Fire Extinguisher | 2 Units |
| Climbing Ladder | 1 Unit |
| Tank Body Color | Silver |
| Supplier Documents | Vehicle registration invoice, complete vehicle certificate, chassis certificate, and national professional tank body inspection report |
