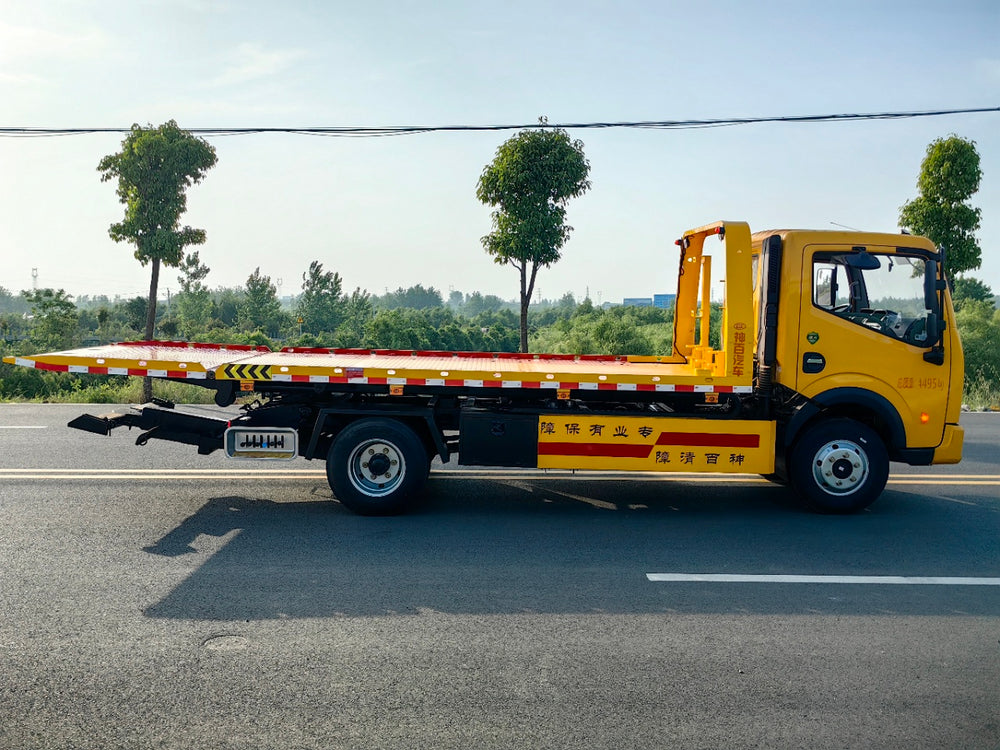

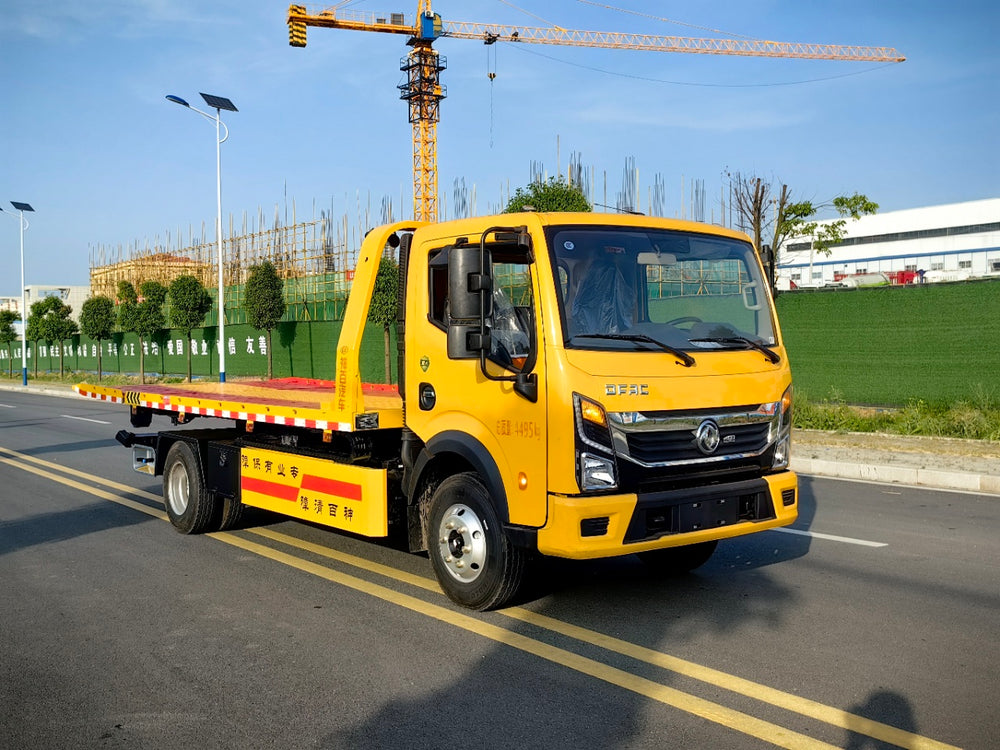

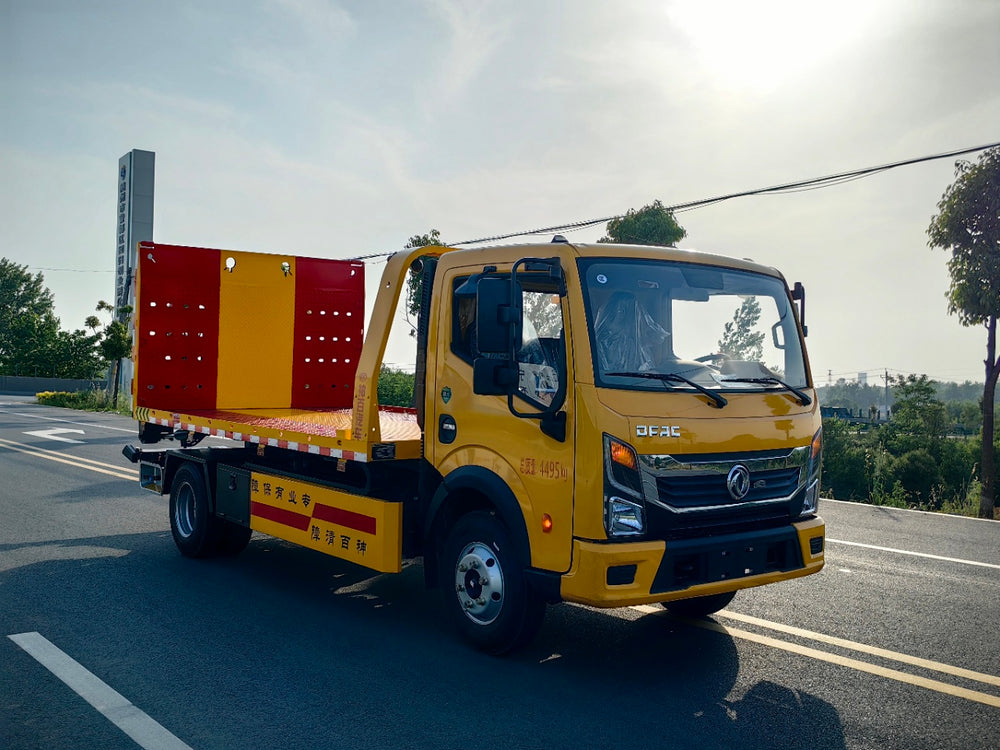

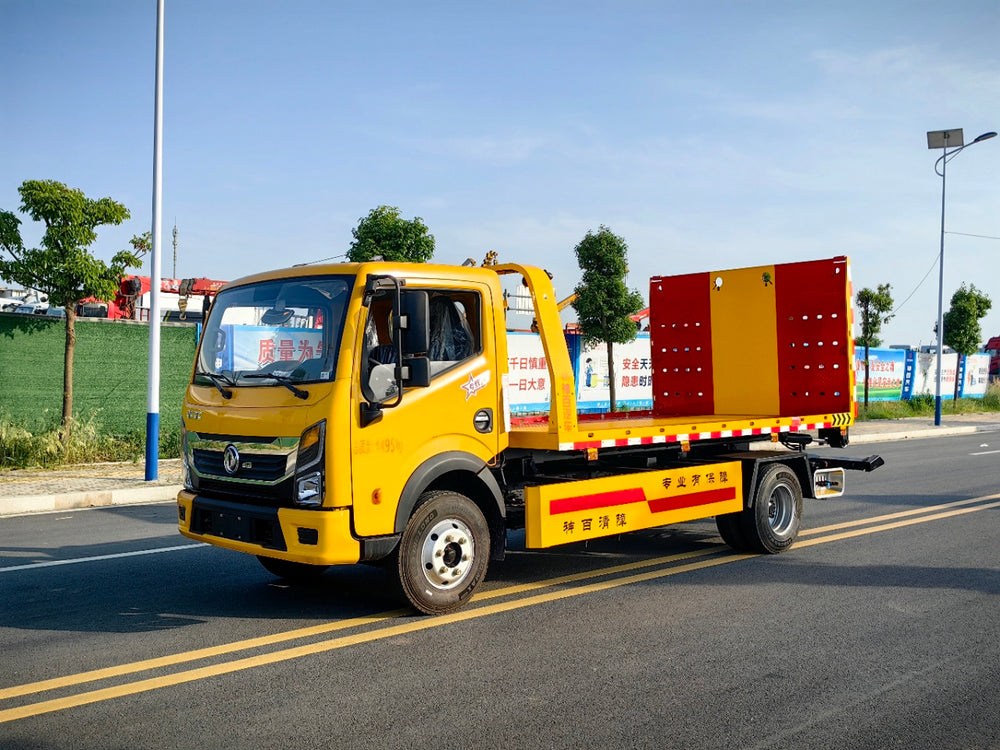

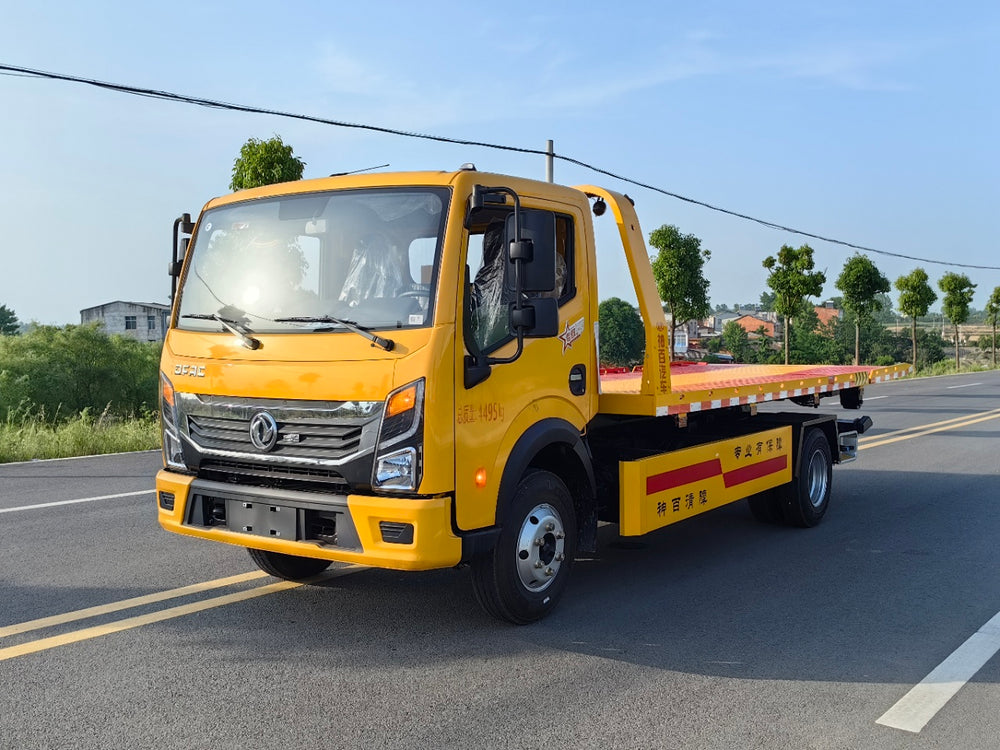

Dongfeng 4x2 Wrecker Truck
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive |
|
Vehicle Size(mm) |
5995x2300x2260 |
|
G.V.W (kg) |
4495 |
|
Net Weight(kg) |
2865 |
|
Engine Model |
YN25PLUS160B |
|
Engine power |
160HP(118kw) |
|
Engine displacements |
2.5L(4-cylinder) |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
3600mm |
|
Cab Capacity |
2 |
|
Transmission |
8-speed transmission |
|
Front/Rear Axle |
3T/6T |
|
Tyre Size |
700 wire tyres |
|
Container Size |
5600x2300 |
|
Other configurations |
Power windows and doors, remote key, multi-function steering wheel, cruise control, original cold and warm air-conditioning, air-break brake, headlight adjustment. |
|
Upper Configuration |

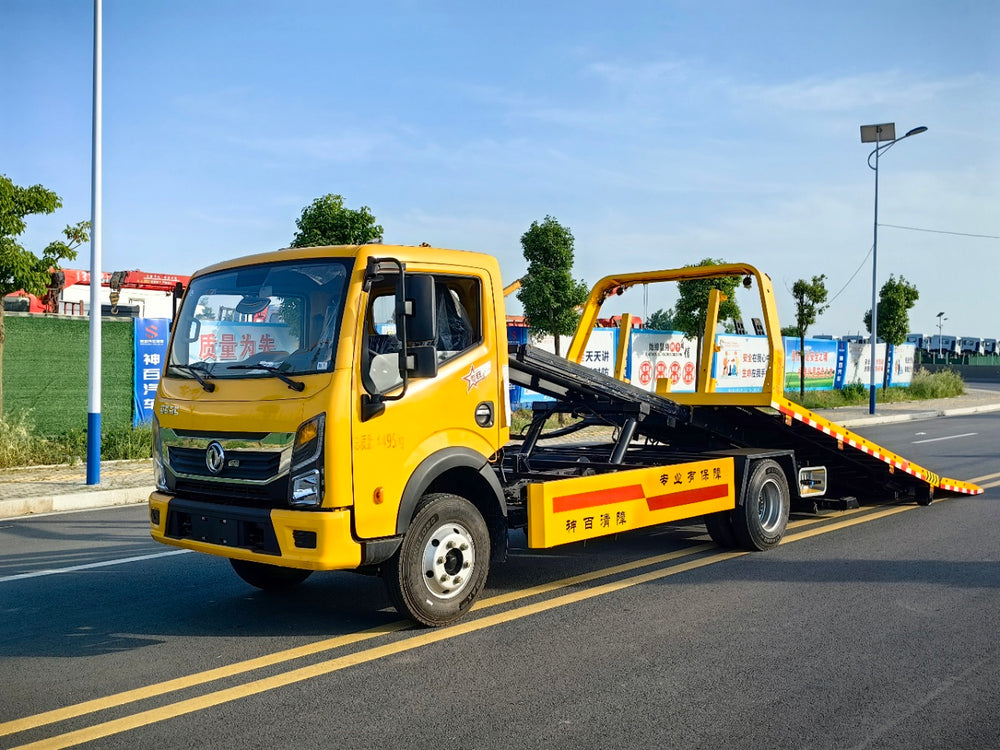

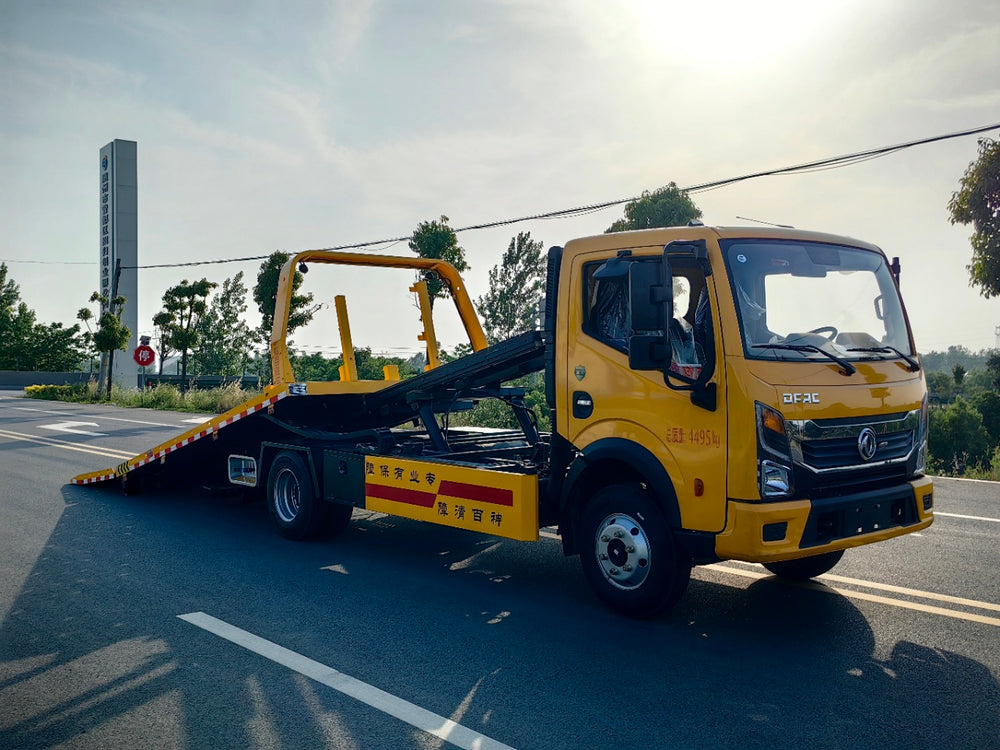

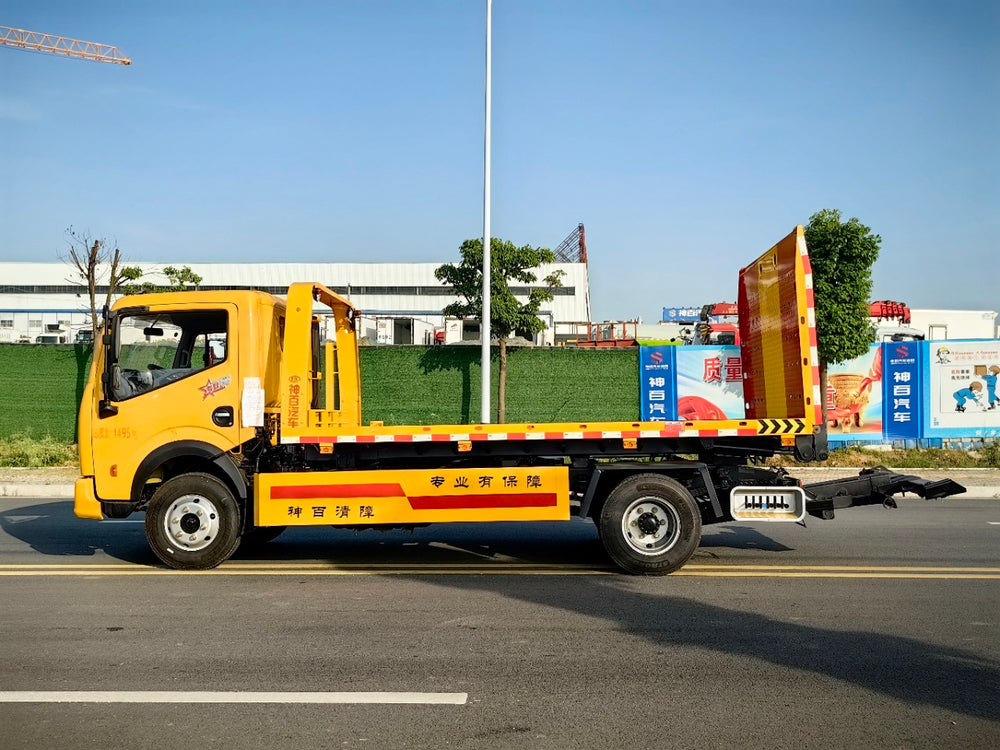

Heavy-duty 7T towing two-type top load, 14MM thick solid steel plate frame with cut holes, flat plate with 5MM thick pattern plate production of non-slip wear-resistant, the tail through the axis of the hydraulic flip, 10MM thick manganese steel slide grooves (flare outside the bound 8MM steel plate reinforcement), under the plate to play the TianZiGe, triangular diagonal support encrypted, flat plate retractable cylinder 110, lifting cylinders 110, standard 4 tonnes of winch (21 m wire rope), 4 tonnes of rear support arm The hydraulic system is operated by double-side linkage system, and Zhongmei hydraulic multi-way valves. |
