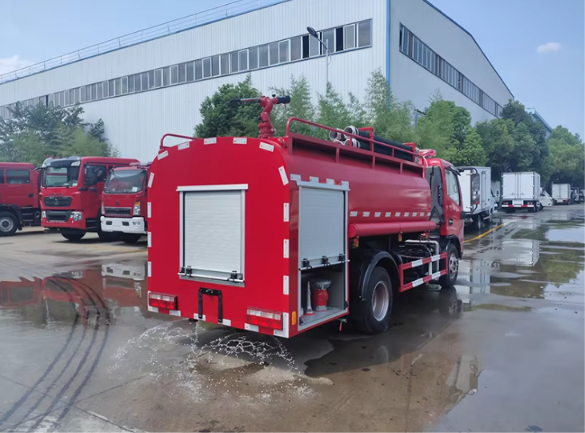

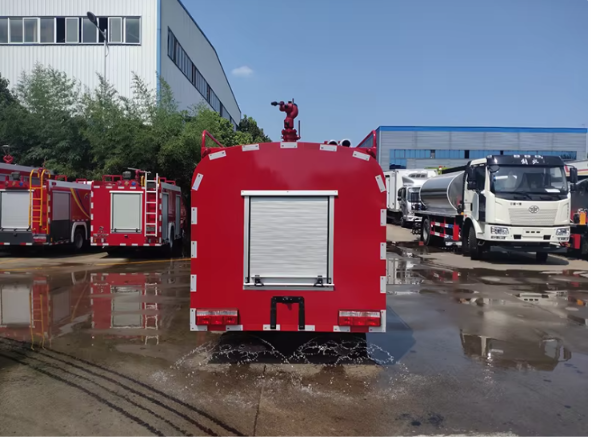

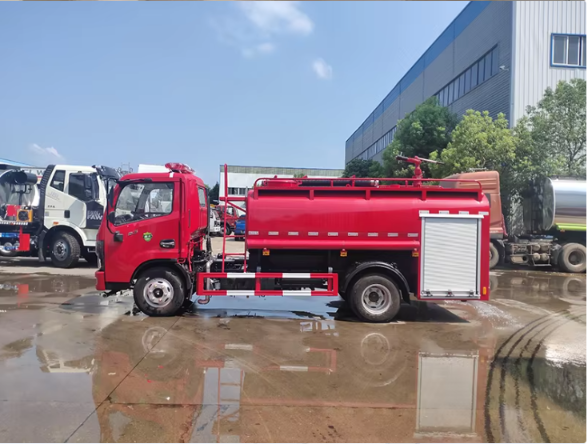

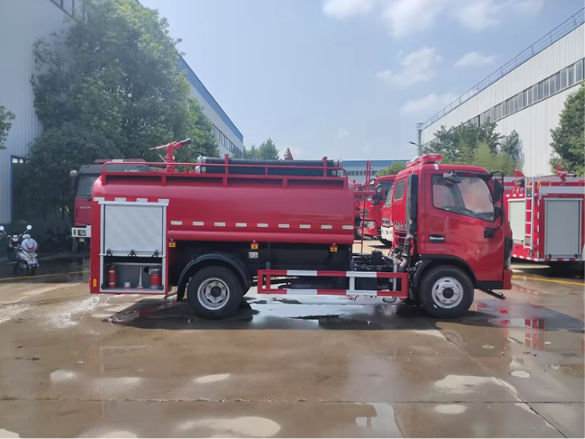

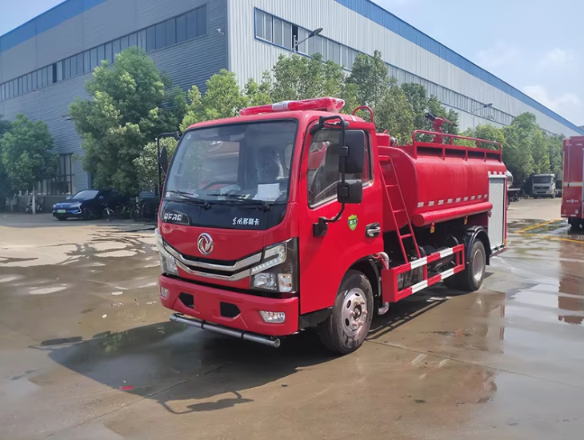

Dongfeng 4X2 3.5 cubic meter forest fire truck

Truck Brand

Dongfeng

Drive Type

4X2 Left Hand Drive

Cab Specification

Single-row Cab, Approved Passenger Capacity: 2 Persons

Emission Standard

Euro 6

Engine Model

Q23-132E60 (132HP)

Engine Power

97KW/132HP

Wheelbase

3308mm

Transmission

Wanliyang 6-speed Gearbox

Front/Rear Axle Specification

3.5T Rear Axle

Tire Specification

7.00R16 Steel Wire Tire

Gross Vehicle Weight

7360kg

Maximum Speed

110km/h

Overall Vehicle Dimension

6100×1980×2650mm

Total Tank Volume

3.5 Cubic Meters (3500L)

Tank Material

4mm Q235 High-quality Carbon Steel, with Wave-proof Baffles Inside the Tank

Fire Pump Model

CB10/20 Low-pressure Fire Pump

Fire Pump Rated Performance

Flow Rate 20L/s, Pressure 1.0MPa

Fire Pump Water Absorption Performance

Suction Depth ≥7m, Priming Time ≤50s

Fire Monitor Model

PS20 Vehicle-mounted Fire Monitor

Fire Monitor Rated Performance

Flow Rate 20L/s, Pressure 1.0-1.2MPa

Fire Monitor Range and Angle

Water Range ≥50m, Horizontal Rotation 360°, Elevation Angle -15°~+80°

Power Take-off (PTO) Specification

Full-power Sandwich-type PTO, Stable and Reliable Transmission

Control Panel

Rear-mounted Hydraulic Operation Integrated Control Panel, Waterproof Design

Equipment Box Configuration

Aluminum Alloy Roller Shutter Door Equipment Box, Standard Fire Fighting Equipment Included

Warning Light Configuration

Long-row Red Warning Light Installed on the Top of the Cab
