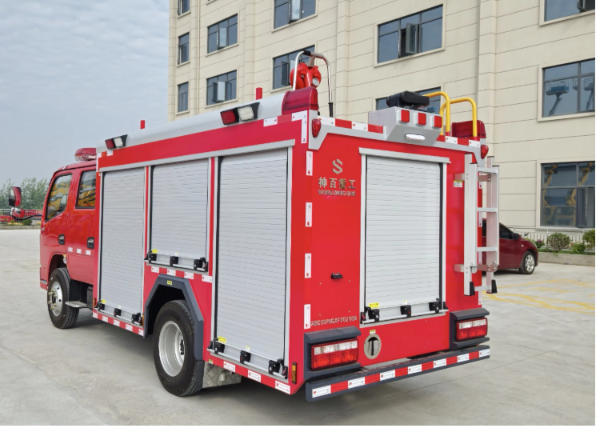

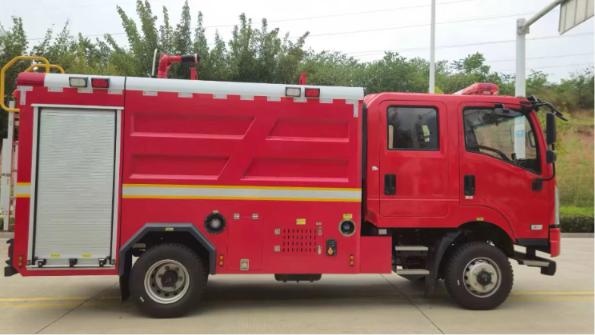

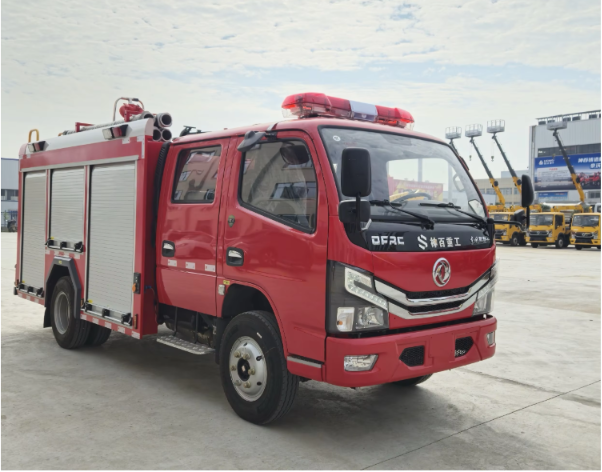

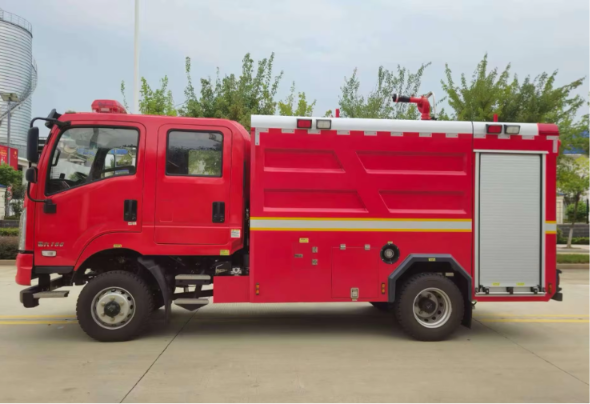

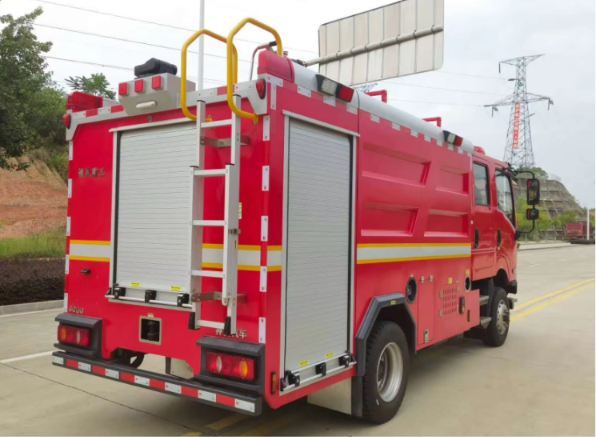

Dongfeng 4X2 2.5-ton forest fire truck
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive(4X2) |
|
G.V.W(kg) |
7360 |
|
Net Weight(kg) |
2415 |
|
Engine Model |
Q23-130E60 |
|
Engine power |
96KW/130HP |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
3308mm |
|
Cab Capacity |
2 |
|
Transmission |
WLY530H |
|
Front/Rear Axle |
2.5T/5T |
|
Tyre Size |
7.00R16 |
|
Container Size |
6630×2140×3400mm |
|
Working angle |
Full hydraulic, 360 ° Full rotation |
|
Maximum gross mass |
9900kg |
|
Top speed |
90km/h |
|
Fluid load |
Water: 2500KG |
|
Fire pump rated flow |
30L/s@1.0 MPa |
|
Fire monitor rated flow |
30L/s@0.8 MPa |
|
range |
Water:≥60 m |
|
Specific power |
128/9.9=12.9kw/t |
|
Approach angle |
≥19° |
|
Departure angle |
≥13° |
|
Other equipment |
In addition to the original PTO control switch and remote electronic throttle switch, the following will be added: 1. Warning lights, siren, and strobe light control box; 2. Additional power switch; 3. Cabin lighting switch, etc. 4. Transfer case switch. |
