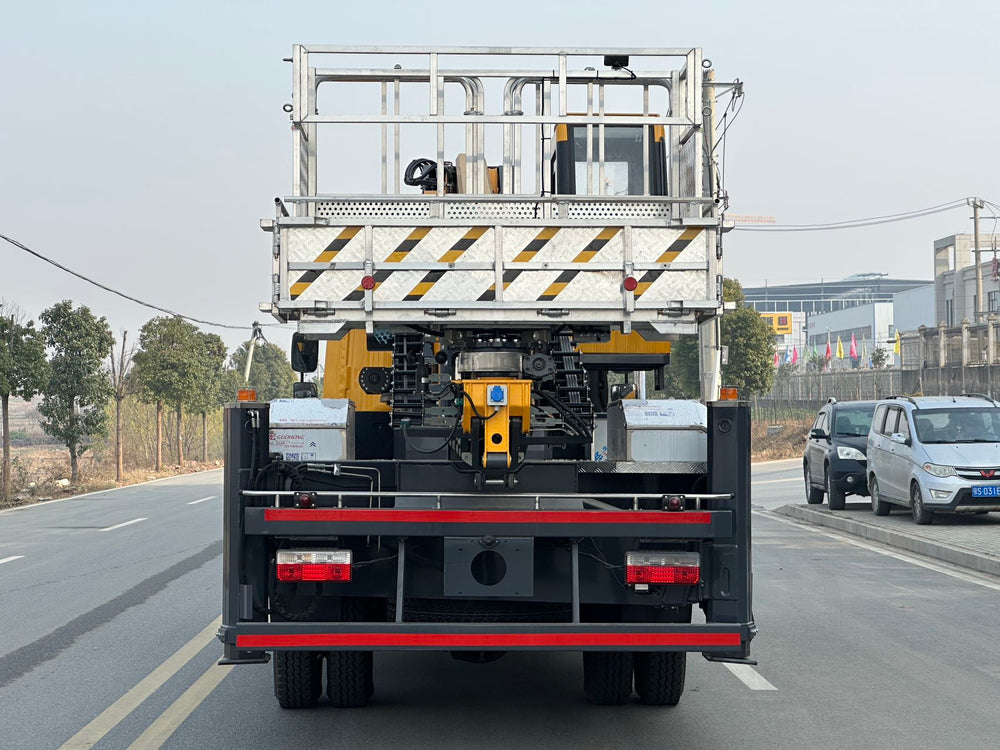

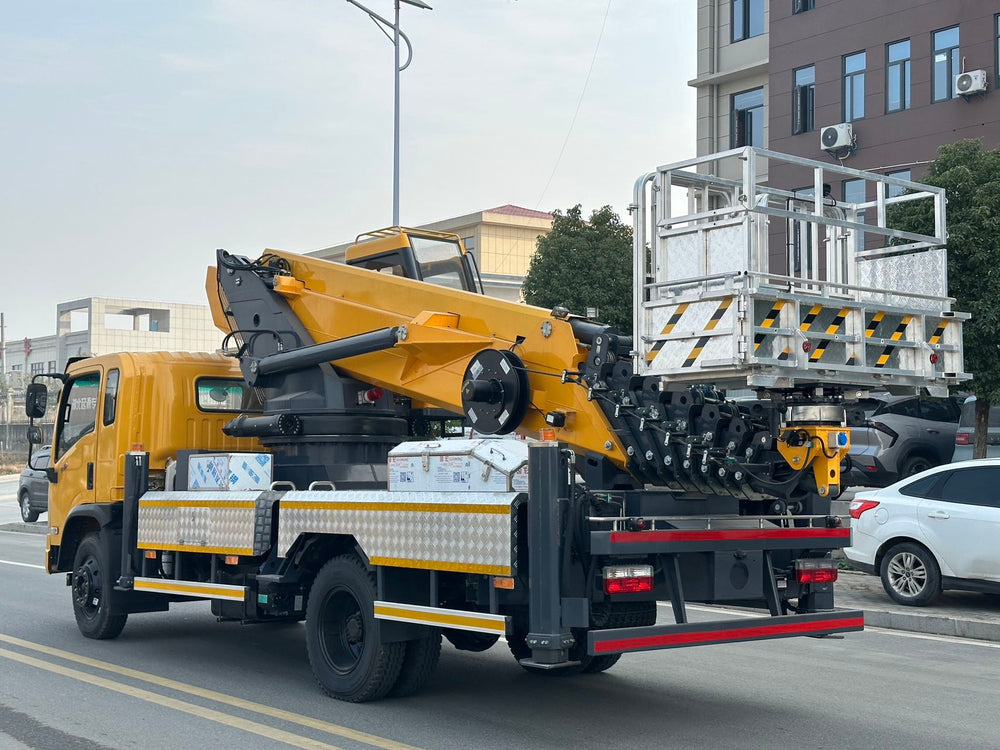

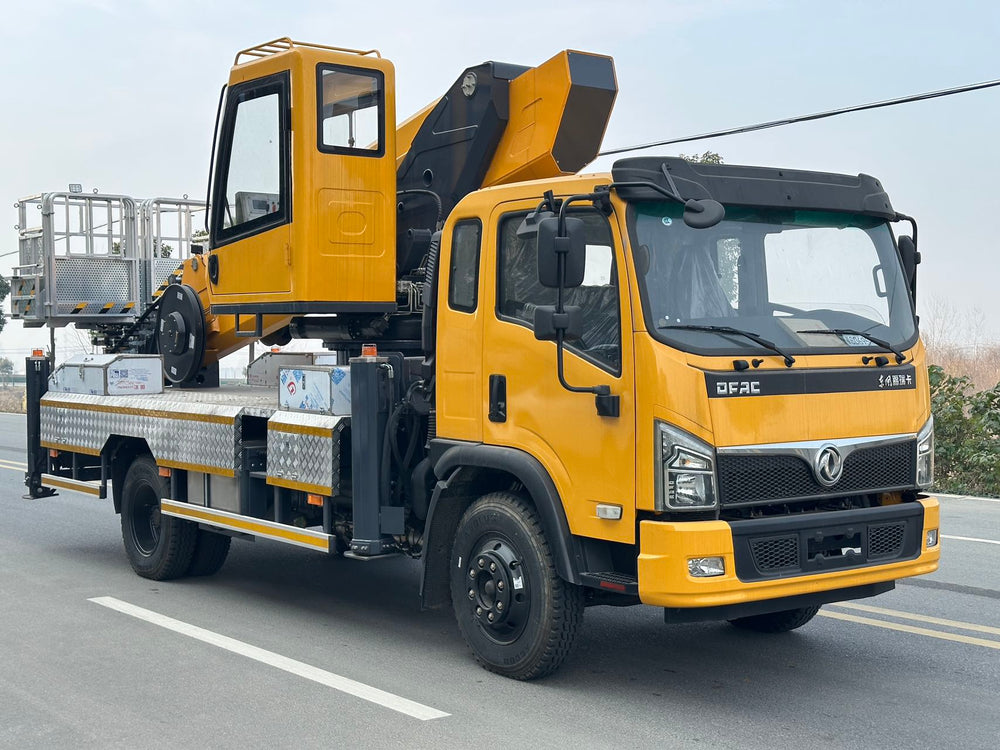

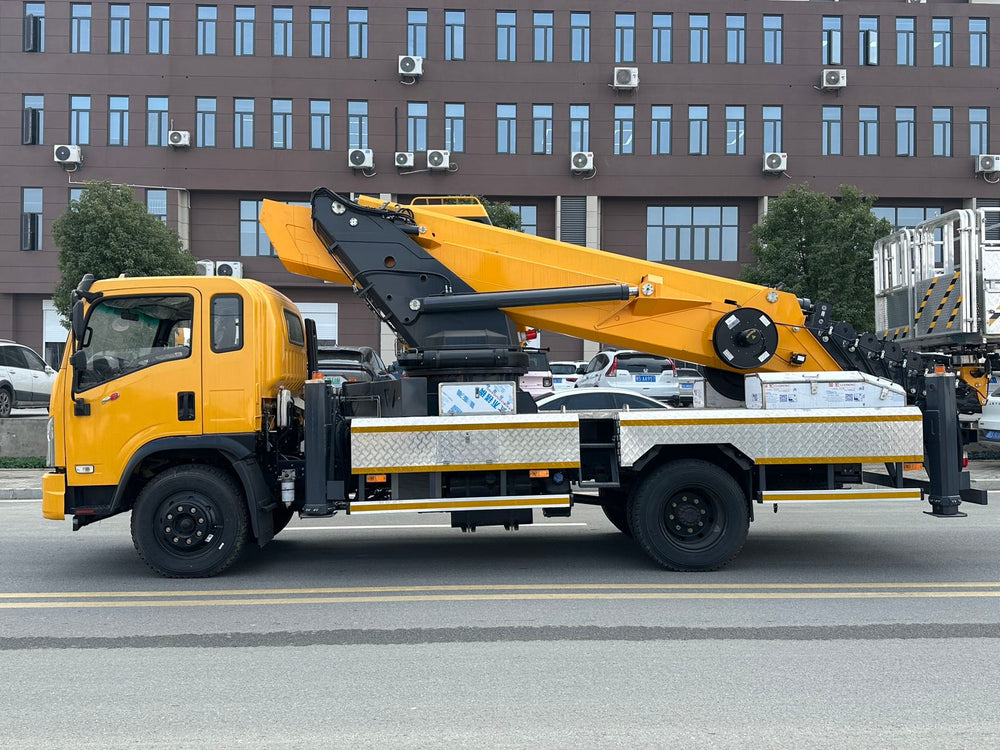

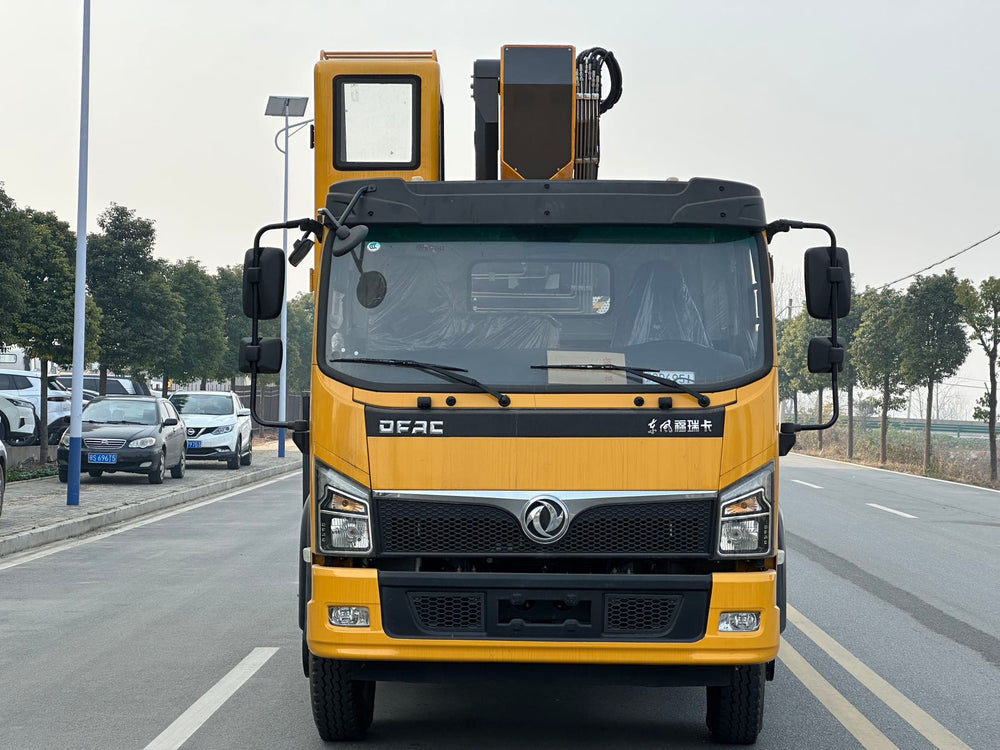

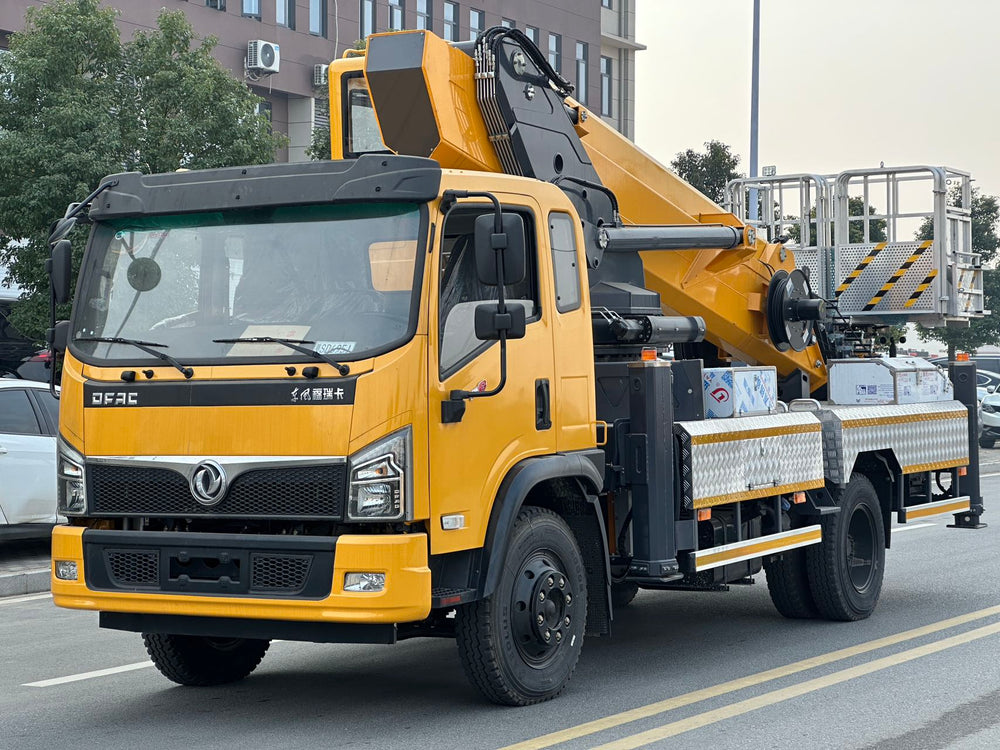

Dongfeng 45M Aerial Work Truck
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive |
|
Vehicle Size(mm) |
7820mm*2450mm*3250mm |
|
GVW |
14060KG |
|
Engine Model |
D40TCIF1 |
|
Engine power |
136KW/185HP |
|
Engine capacity |
4L |
|
Emission Standard |
Euro 6 |
|
Wheelbases |
4200mm |
|
Transmission |
8-Speed |
|
Tires |
8.25R20 16PR |
|
Front/Rear Axle |
2.7T/8T |
|
Brake |
Air brake |
|
3. Upper Configuration |
|
|
Maximum working height |
45meters |
|
Maximum working radius |
25meters |
|
Platform rated load |
300KG |
|
Boom slewing angle |
360 degrees |
|
Platform size |
3200mm*1000mm*1100mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
Maximal arm |
9-section arm synchronised telescopic |
|
Operating system |
Domestic well-known electronic control system, equipped with wireless remote control, Two-way operation |
|
Hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle plate |
Steel non-slip walkway |
|
Safety device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
