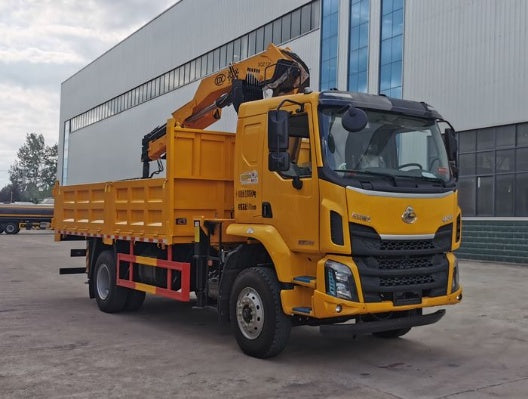

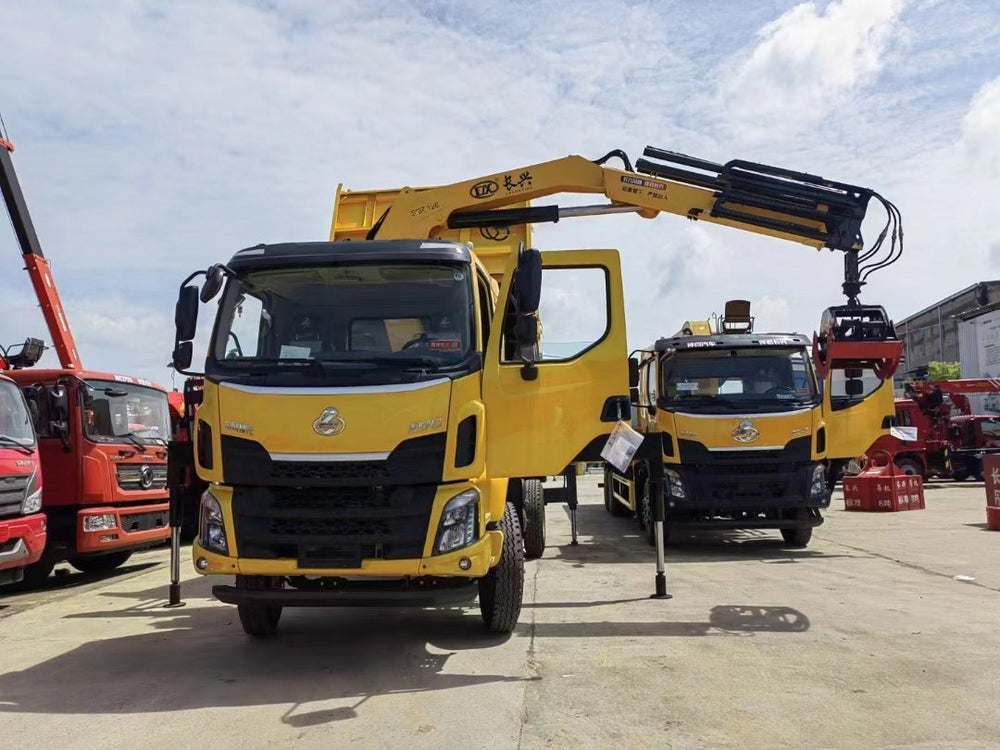

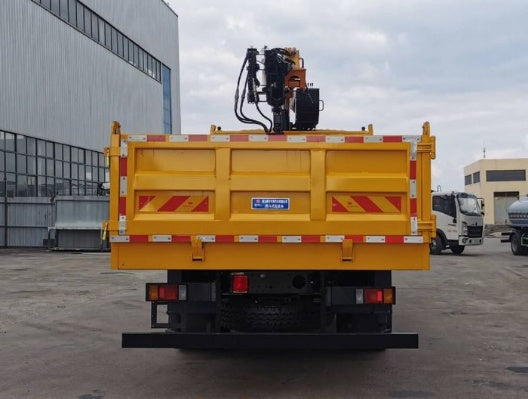

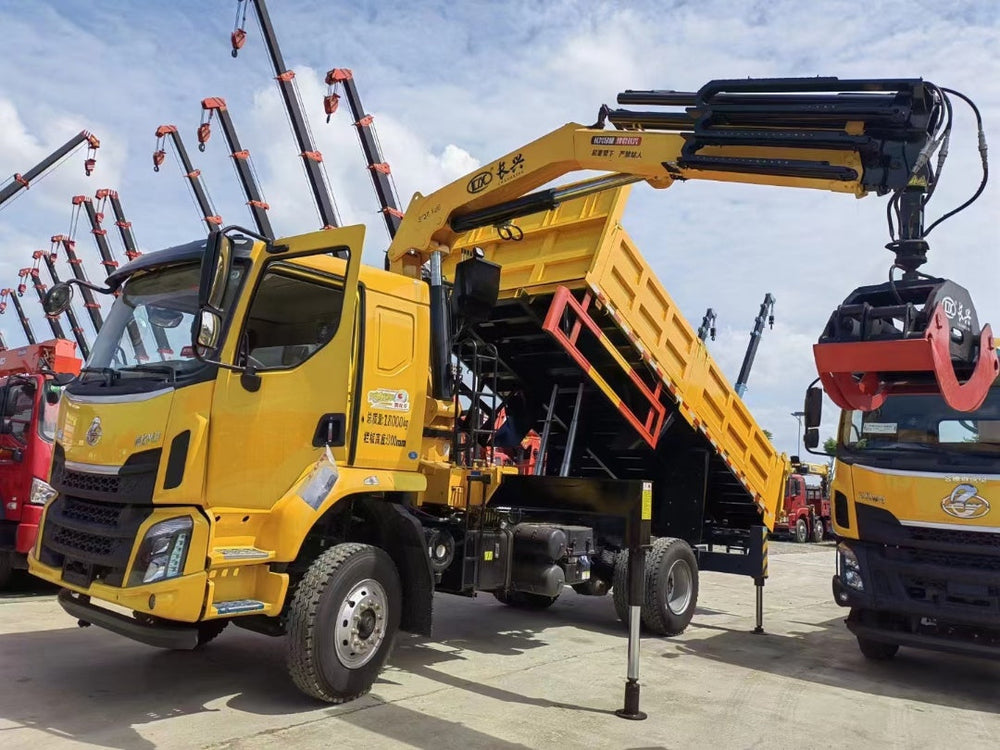

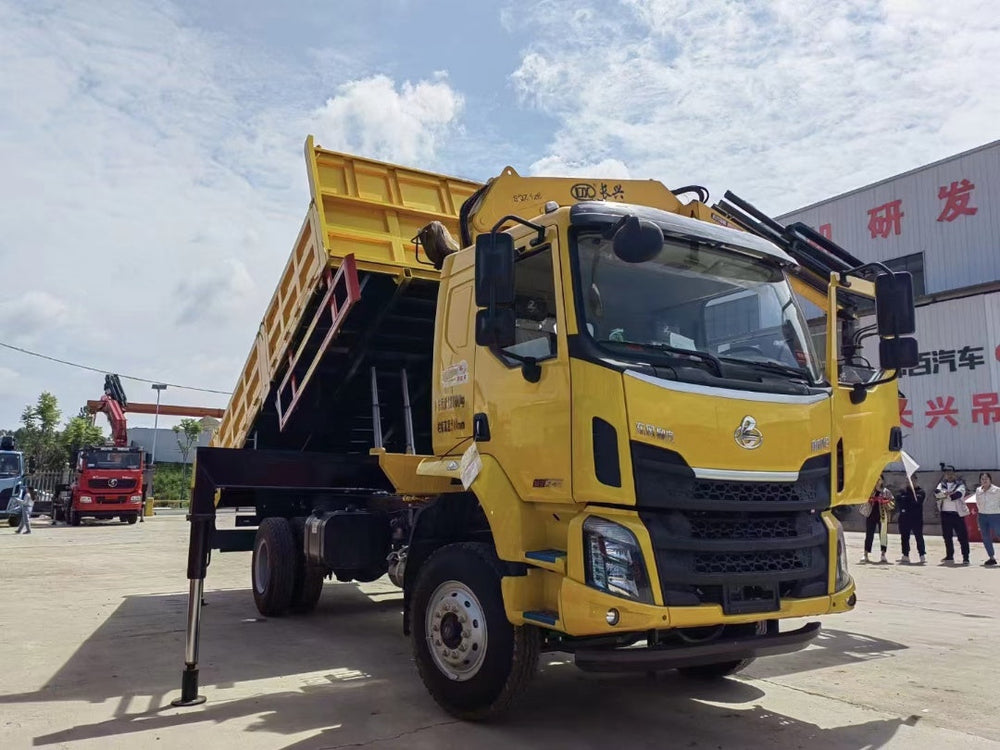

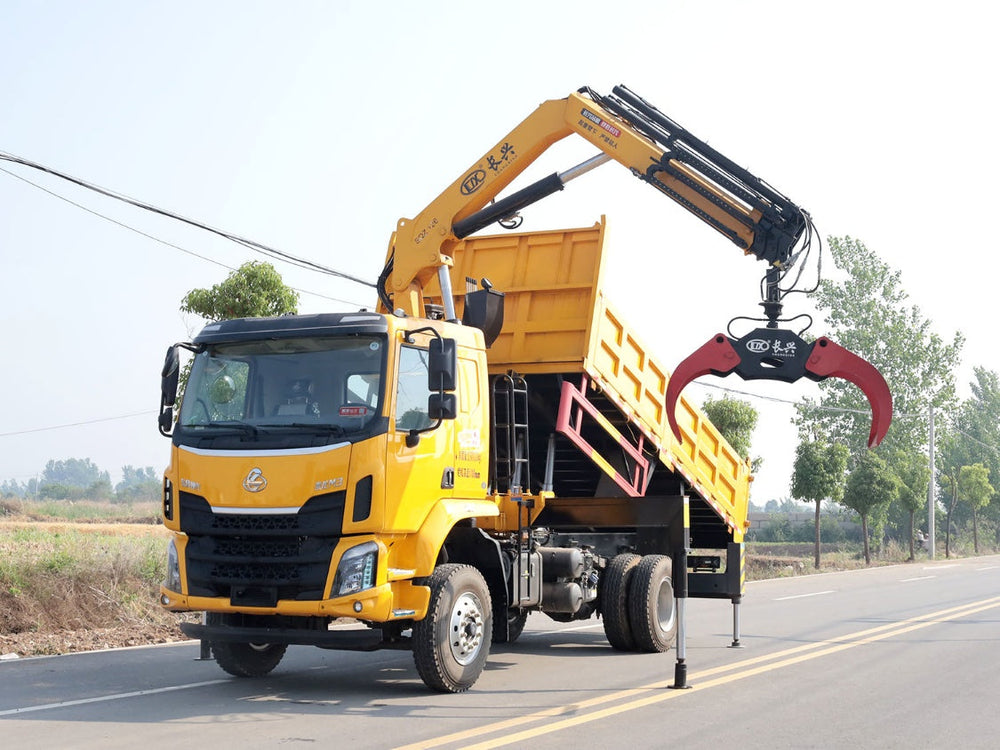

DongFeng 4×2 Knuckle Boom Crane
| Item | Parameter |
|---|---|
| Gross Vehicle Weight (GVW) | 18000kg |
| Kerb Weight | 12900/12000/11500/11000kg |
| Wheelbase | 5100/4500/4200mm |
| Engine | YCS04220-61A |
| Gearbox | 8JS85E-C, with spline power take-off (PTO) |
| Front Axle | 5.5-ton rated load |
| Rear Axle | 10-ton rated load, Fangsheng axle, final drive ratio 4.875/5.143, rear 8-wheel leaf spring |
| Fuel Tank | 200L steel fuel tank |
| Tire | 10.00R20 |
| Cab | M35B cab, imported soft-wrap interior material, odor-free; optional domestic plastic interior (2000 yuan discount) |
| Clutch | Φ395 push-type clutch |
| Leaf Spring | 11/12+9 leaf spring |
| Chassis Frame | 282(8+4) Baosteel 750 3-layer laminated girder, electrophoretic & plastic sprayed finish, Sea Wolf Gray color; 4-layer frame with small connecting plates |
| Steering Gear | Domestic steering gear |
| Cab Suspension | Semi-floating cab suspension |
| Cab Tilt | Manual hydraulic tilt |
| Driver Seat | Leather height-adjustable airbag shock-absorbing driver seat |
| Door & Window System | Electric power window lifter, remote central door lock |
| Air Conditioning | Standard air conditioning |
| On-board Terminal | Driving recorder + Beidou GPS compatible, Chenglong V+ connected car 3.0 system |
| Cab & Chassis Functions | Multi-state switch, right turn reminder; US-made electronic component valves, ABS, automatic brake adjusting arm, maintenance-free battery, under-vehicle start/stop function, same-color bumper + fender, rocker-type self-return remote throttle |
| Crane Upper Structure | Changxing 5/6.3/8/10/12/16 ton knuckle boom truck-mounted crane, Changxing OEM single-cavity rear outrigger |
| Optional Accessories | Remote controller, brick clamp, wood grapple, electric suction cup, self-generator, and other auxiliary tools |
