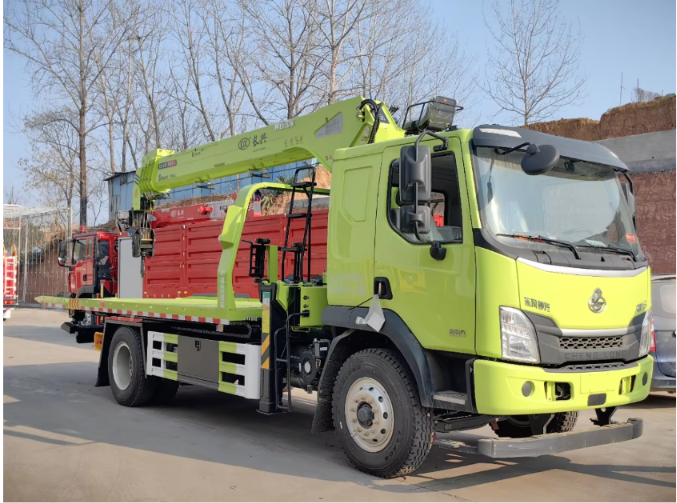

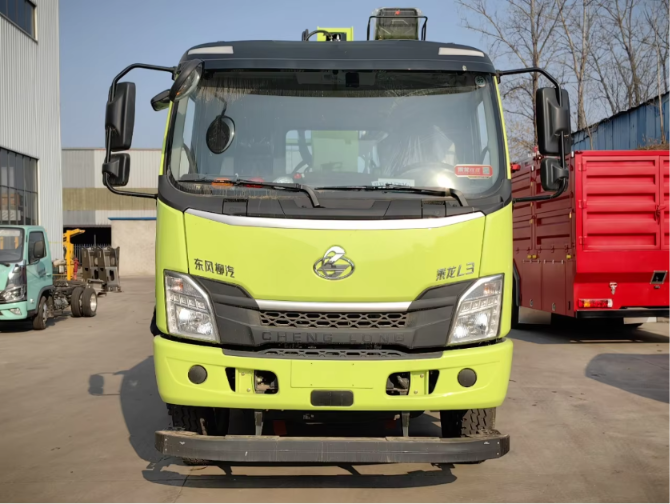

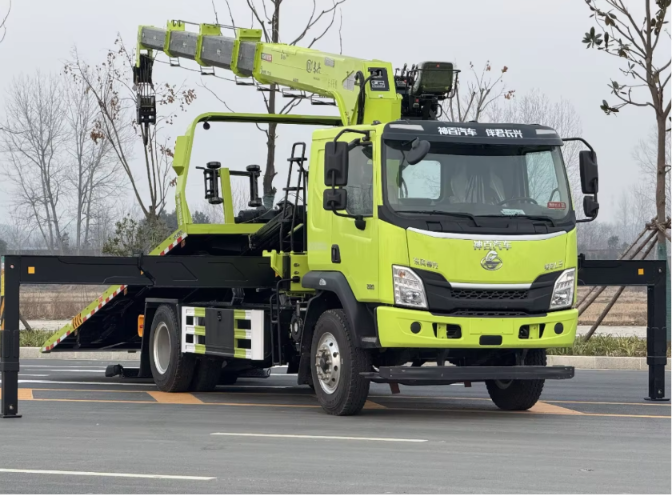

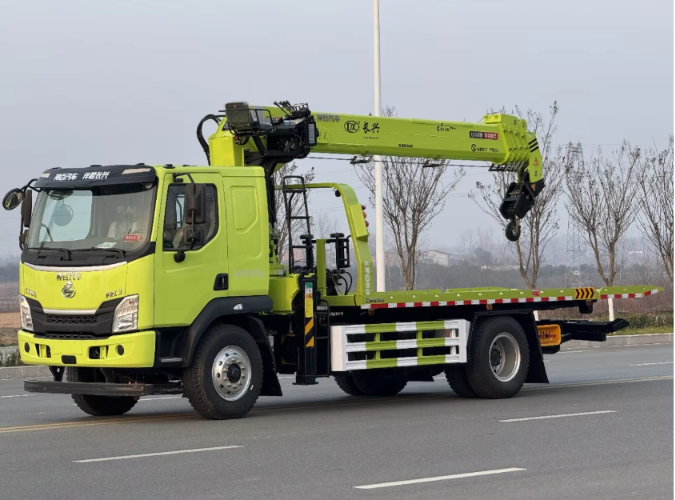

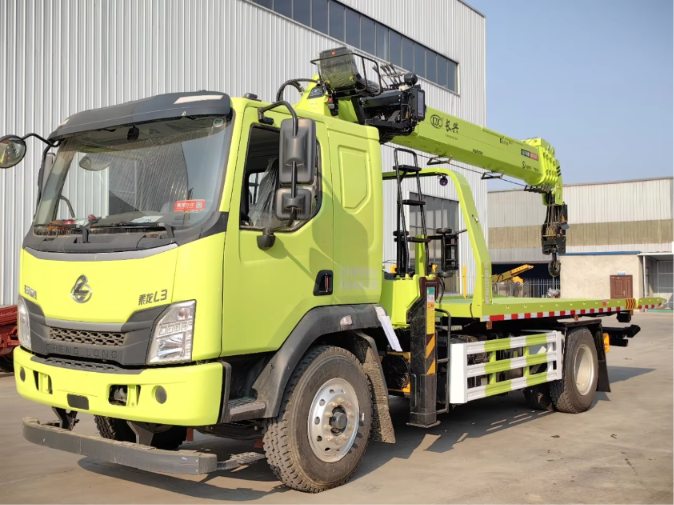

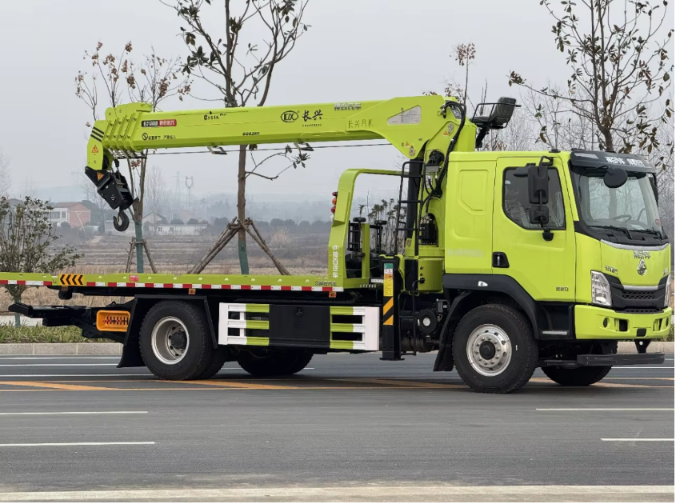

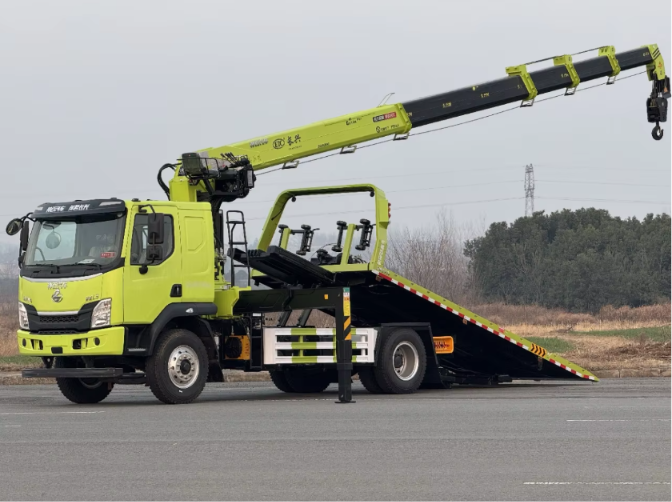

Dongfeng 4×2 8 Ton Wrecker Truck with Crane
|
2.Basic parameters of vehicle |
|
|
Item |
Parameter Details |
|
Truck Brand |
Liuqi (brand) |
|
Drive Type |
Left Hand Drive |
|
Vehicle Size(mm) |
9860×2550×3850 |
|
Total mass(kg) |
18000 |
|
Net Weight(kg) |
15000 |
|
Engine Model |
YCS04220-61A |
|
Engine power |
162KW/220HP |
|
Emission Standard |
Euro 6 |
|
Wheelbase(mm) |
4500 |
|
Cab Capacity |
2月3日 |
|
Transmission |
8JS85E-C |
|
Front/Rear Axle |
5.5/11.5T |
|
Tyre Size |
10.00R20 |
|
Board length size(mm) |
5900×2550 |
|
Working angle |
Full hydraulic, 360 ° Full rotation |
|
Crane Brand |
CX/SQS250 |
|
Maximum lifting weight |
10T |
|
Quantity of telescopic arm |
5-section |
|
Upper arm length |
18.5M |
|
Maximum lifting height |
19.6M |
|
Bodywork configuration |
The superstructure features a 5.9-meter-long and 2.55-meter-wide recovery flatbed platform with a rated load capacity of 10 tons. The deck base is constructed from 6mm thick high-strength, wear-resistant checkered steel plate, while the supporting frame is fabricated from 16mm thick solid steel plate. The platform adopts a recessed flush-mount design to lower the overall vehicle center of gravity. High-density grid reinforcement and closely spaced triangular bracings are welded underneath the flatbed to boost structural rigidity, enhance durability and extend service lifespan. The recovery flatbed is fully equipped with double-layer thickened manganese steel slide rails, a 10-ton hydraulic winch, a 10-ton three-section rear outrigger boom, and hydraulic multi-way valves imported from Italy Hydrocontrol |
|
Vehicle accessories |
A pair of auxiliary pulleys, a pair of triangular tire guards, six high-quality straps, a pair of tow fork mounts, three pairs of tow forks (one pair each of high, medium, and low) and a crowbar |
