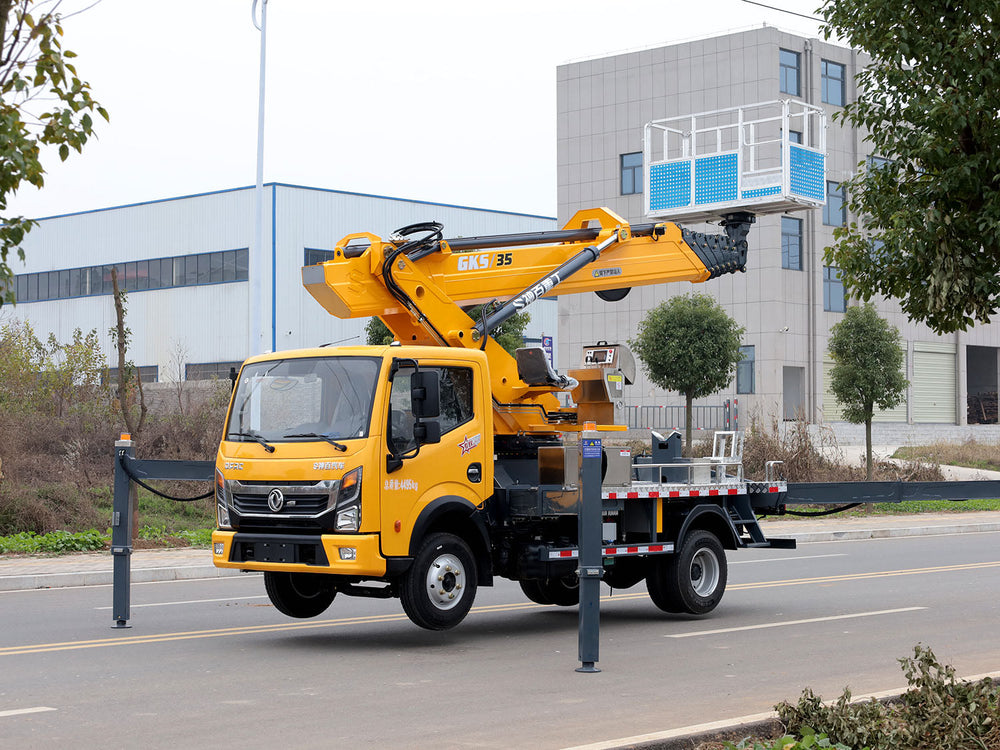

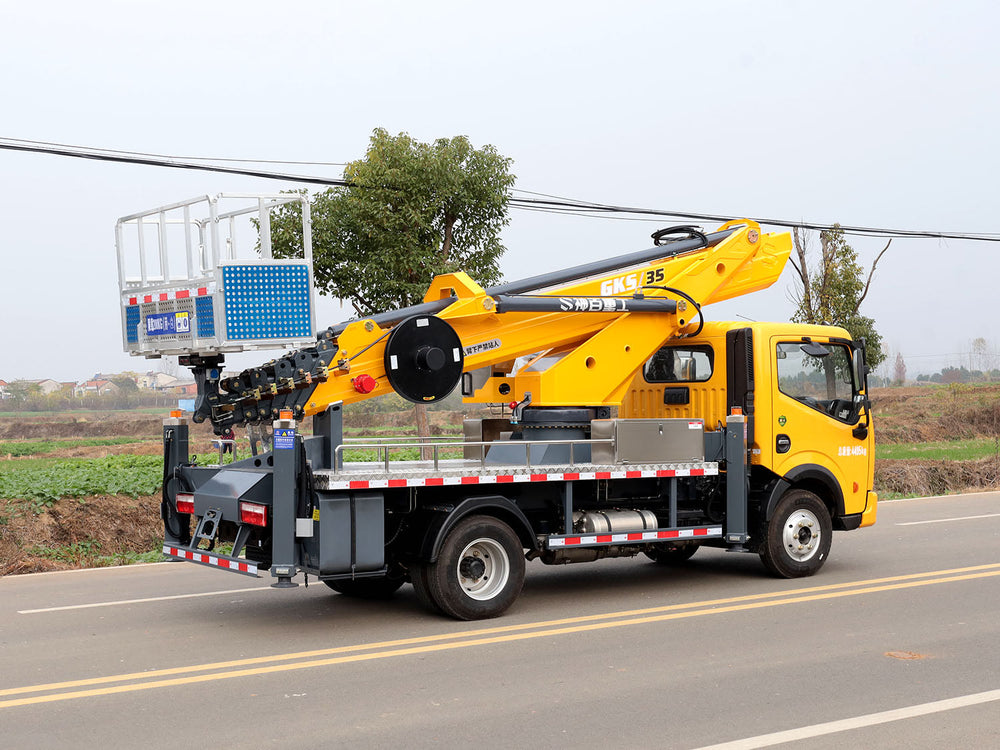

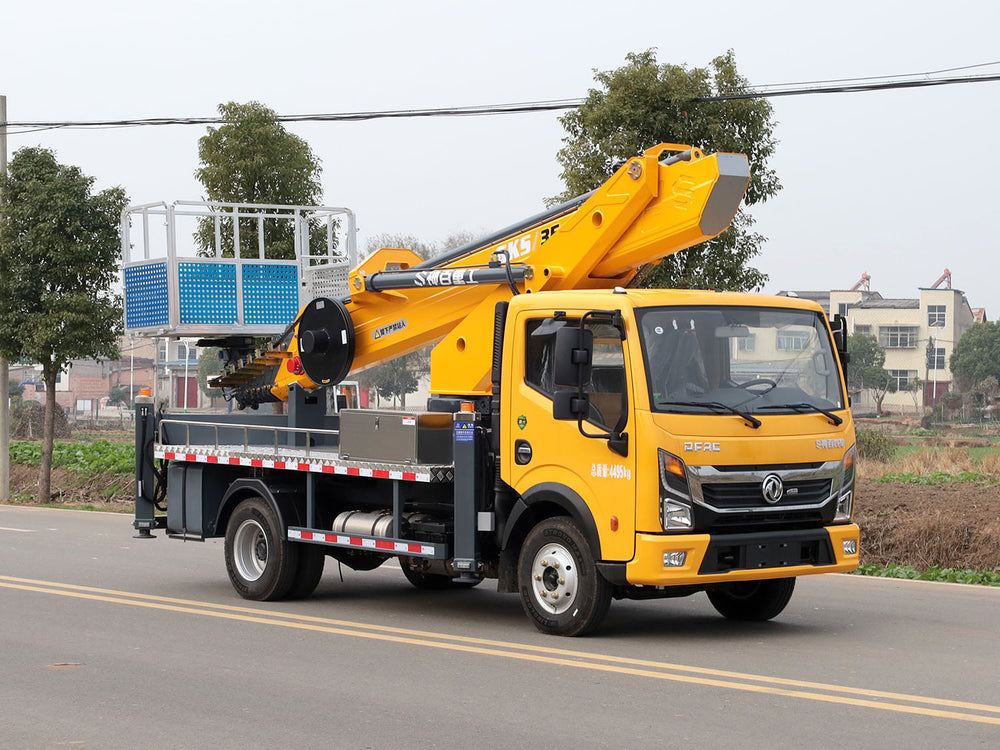

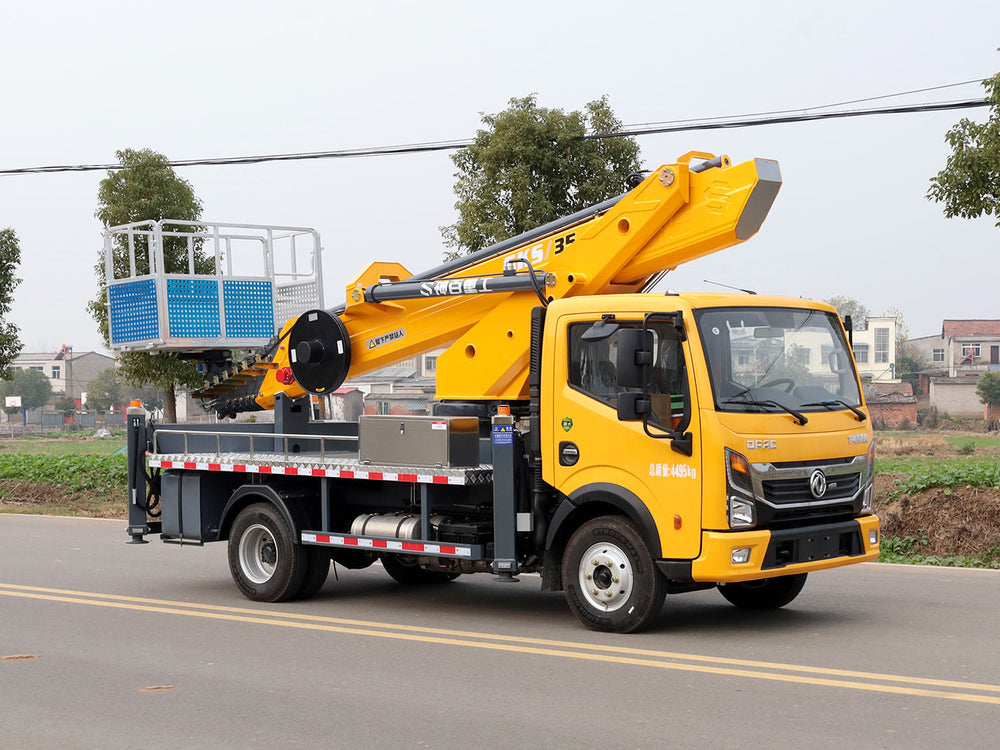

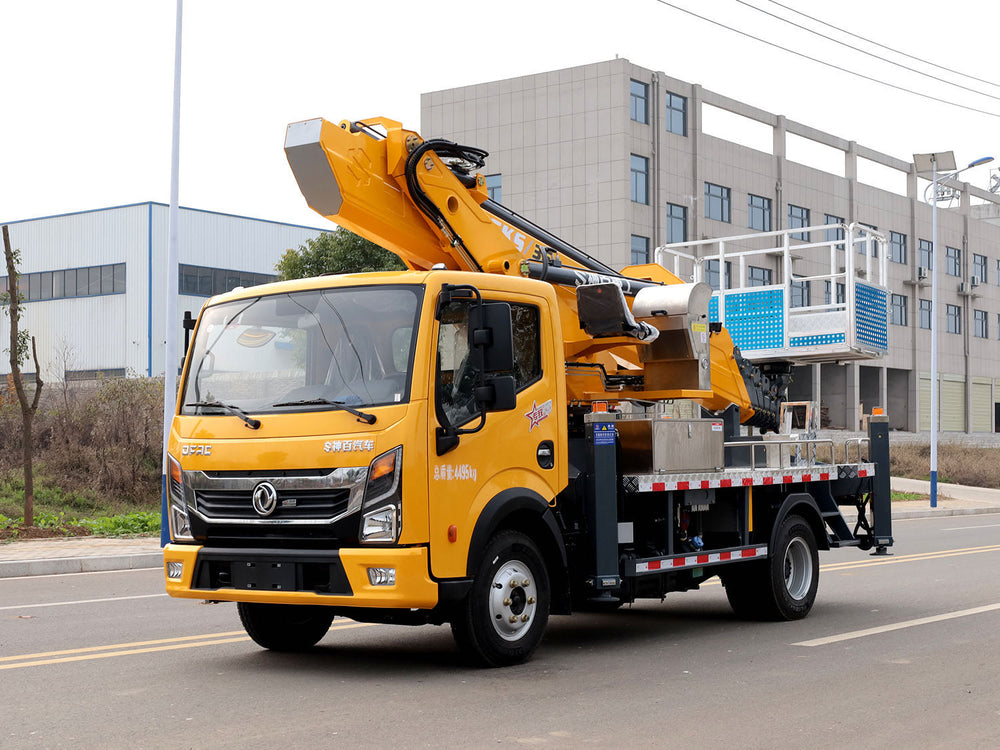

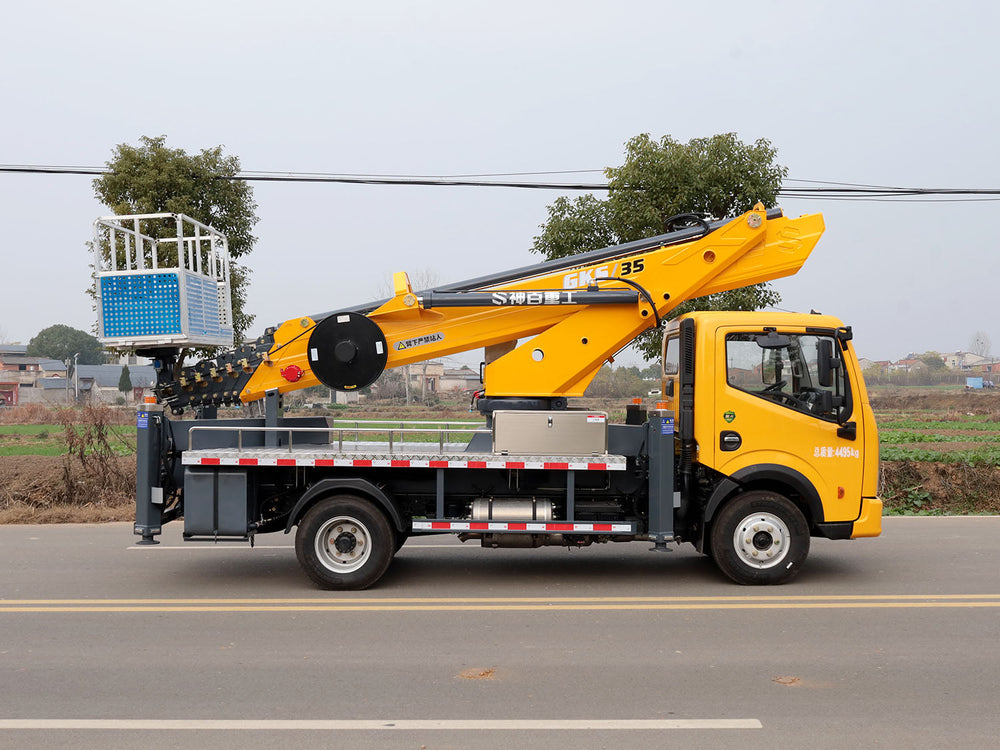

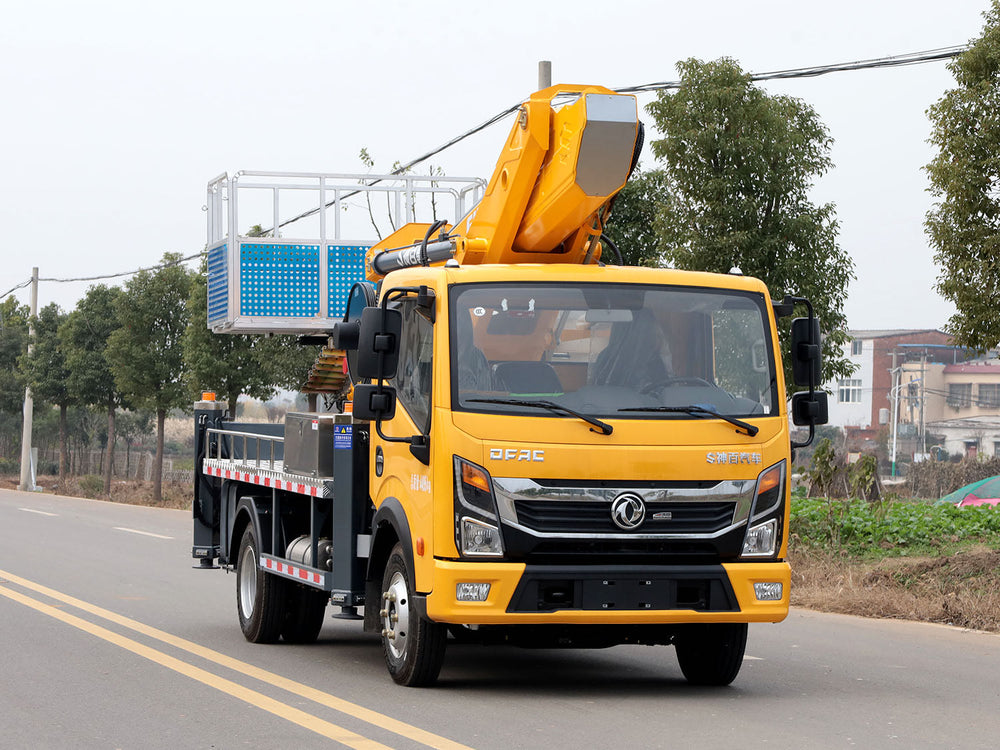

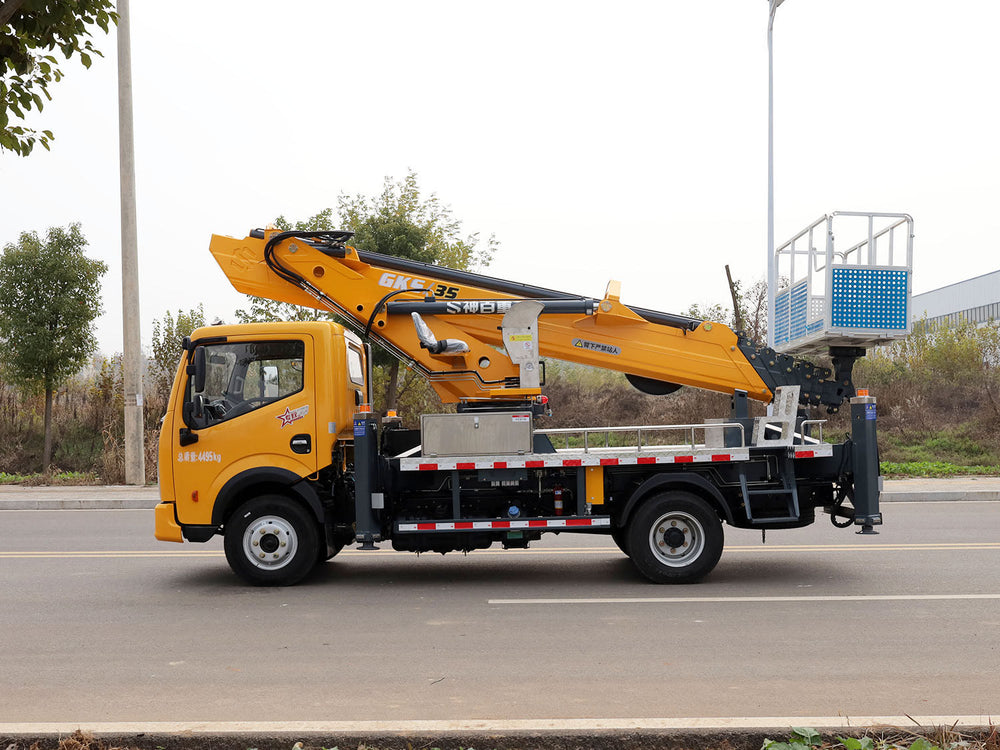

Dongfeng 33.8m Aerial Work Truck
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive |
|
G.V.W |
4495KG |
|
Curb Weight |
4365KG |
|
Engine power |
160HP(118kw) |
|
Engine displacements |
YN25PLUS160B |
|
Engine Model |
YNF160-NE |
|
Engine capacity |
2.5L |
|
Transmission |
WLY 8-speed |
|
Wheelbases |
3308mm |
|
Overall dimensions |
5995mm*2200mm*3150mm |
|
Tires |
700R16LT |
|
Brake |
Air brake |
|
Other configurations |
Automatic doors and windows, air conditioning，Central control lock |
|
3. Upper Configuration |
|
|

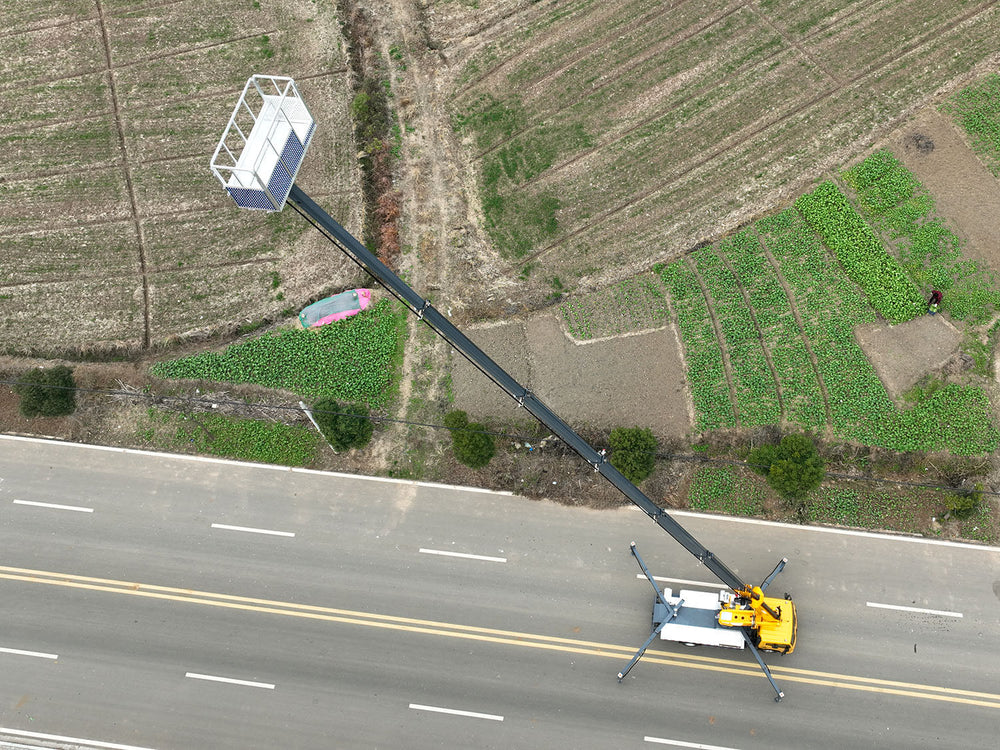

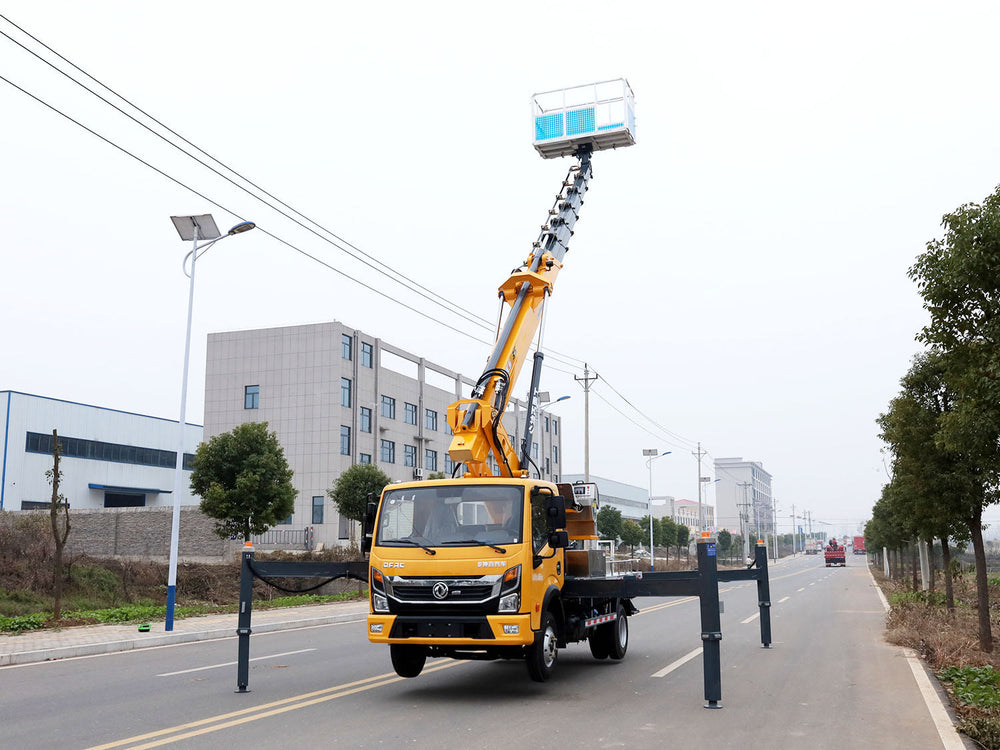

Maximum working height |
33.8meters |
|
Maximum working radius |
16.5meters |
|
Platform rated load |
200KG |
|

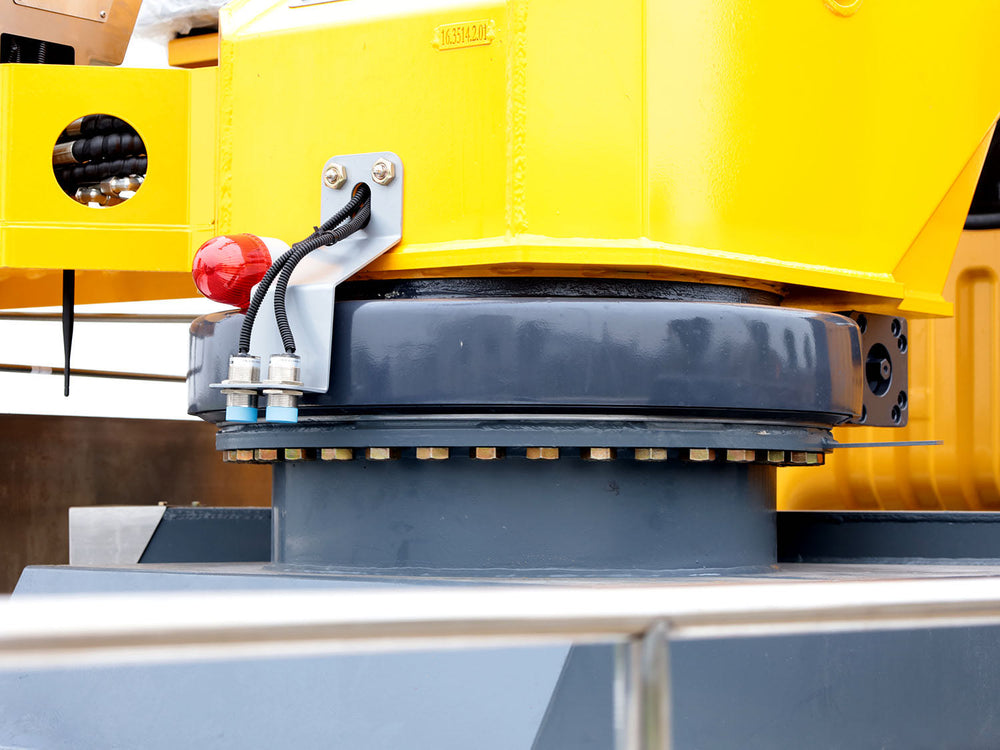

Boom slewing angle |
360 degrees |
|

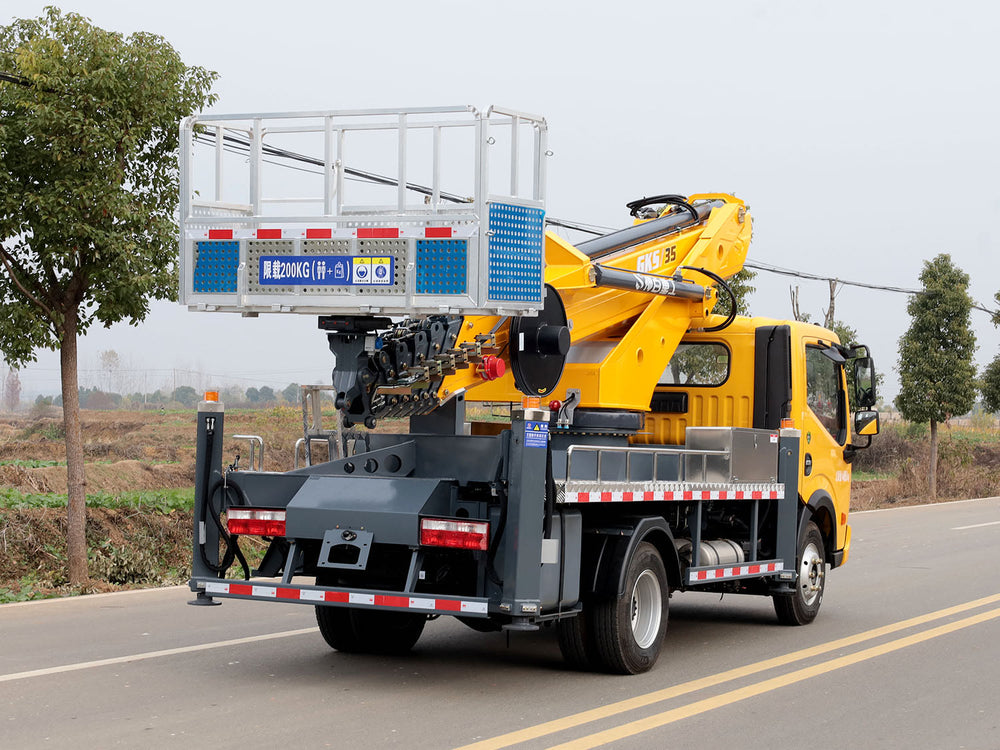

Platform size |
1800mm*700mm*1000mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|

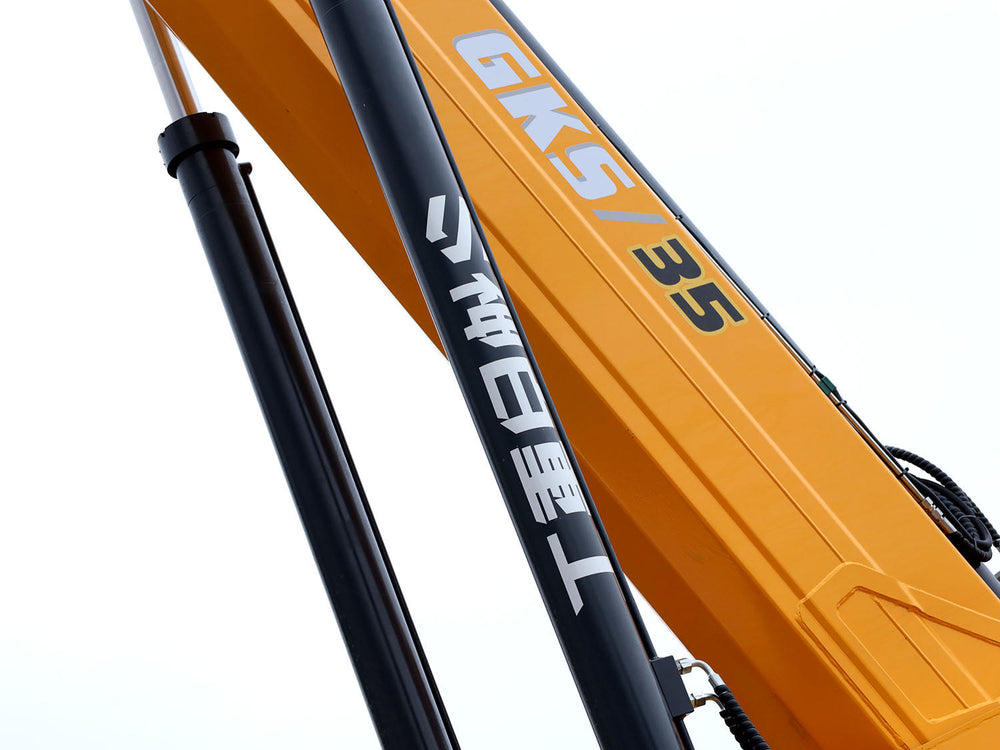

Maximal arm |
7-section arm, 6-section synchronised telescopic |
|
Operating system |
Domestic well-known electronic control system, equipped with wireless remote control, two-way operation |
|
Hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle plate |
Aluminium non-slip walking board |
|

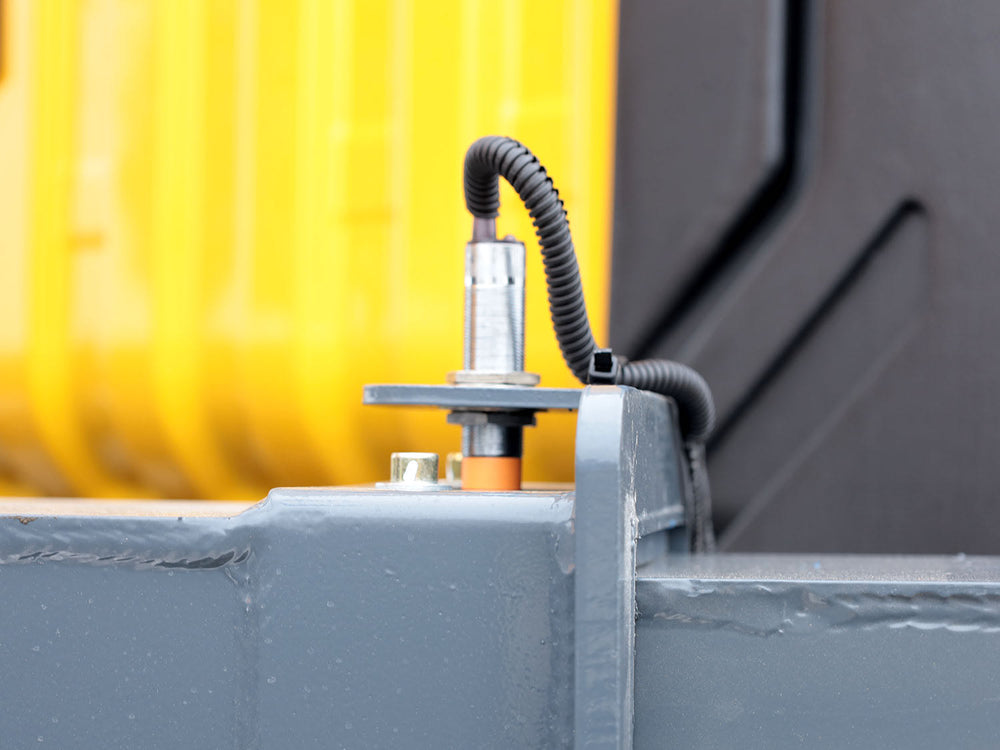

Safety device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
|
4. Advantage: The first of its kind in the country, 7-section arm 33.8 metres l The whole vehicle is not overweight! Adopted Baosteel 960 high strength plate l Double-section outriggers, longitudinal and transverse span 5800mm/6700mm l Multi-section arm design (7-section arm, 6-section synchronised telescopic), lifting height 33.8 m l Dual lift cylinder design l 1.4 metre folding basket (2 metres unfolded) l Box frame l Overall vehicle height 2.7 metres l Working radius 16 metres l Small radius of gyration, rotary table does not come out of the car body |
