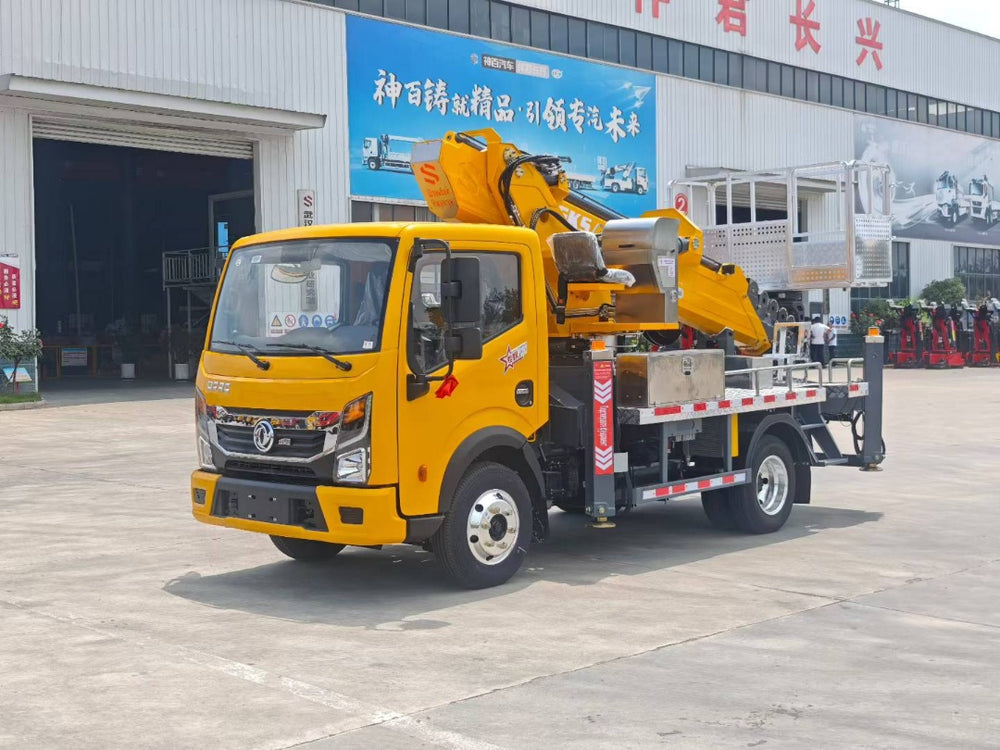

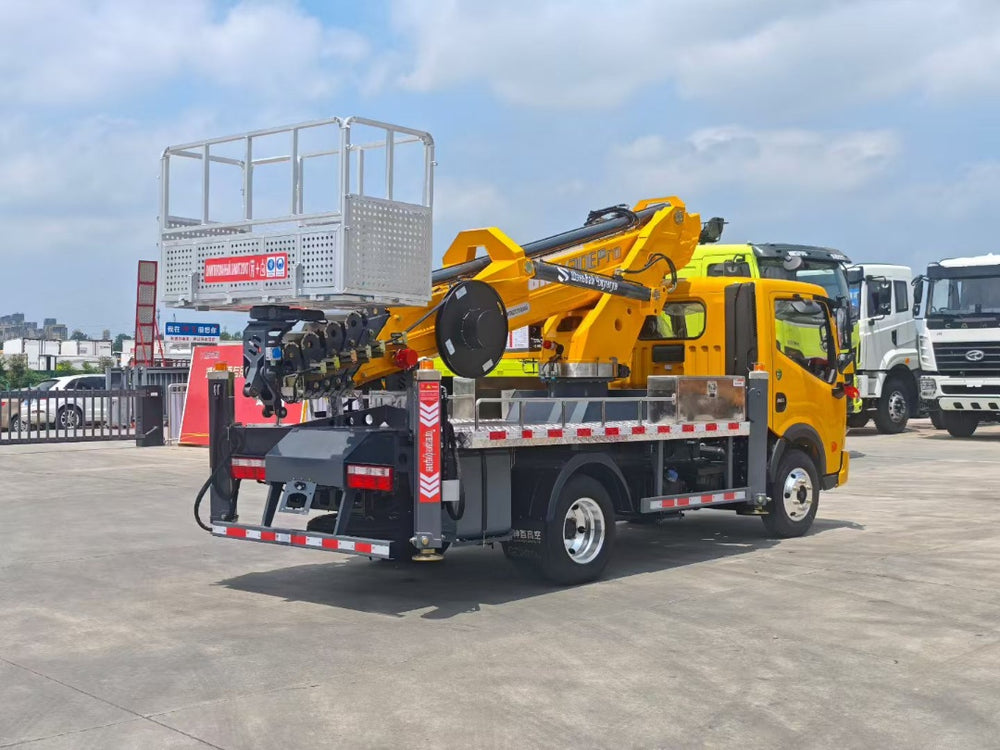

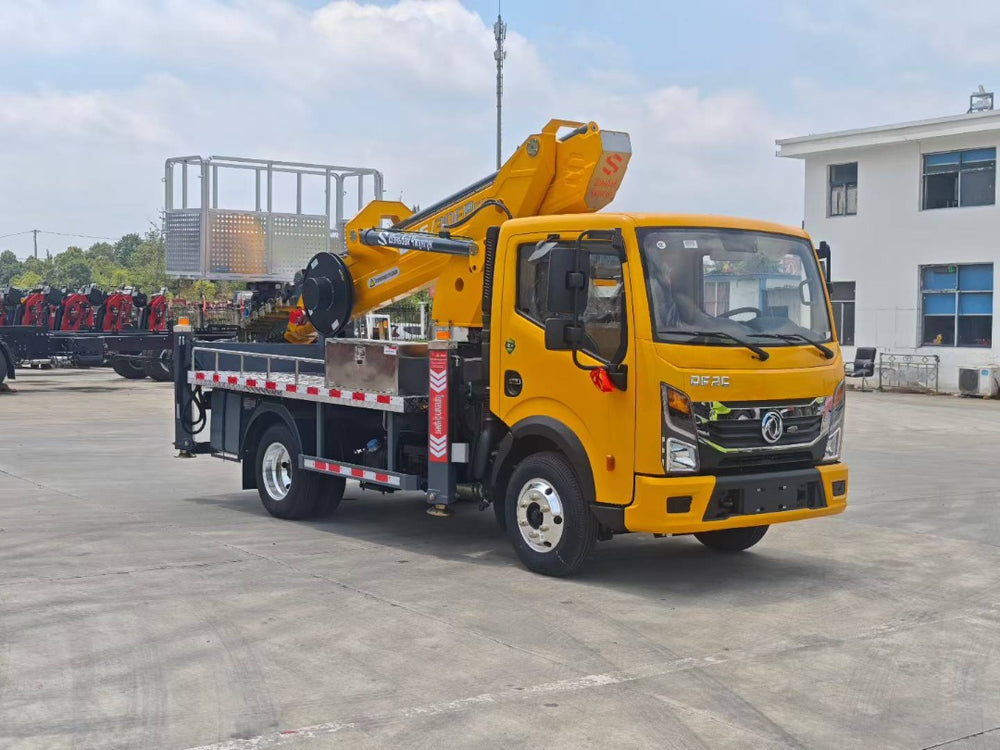

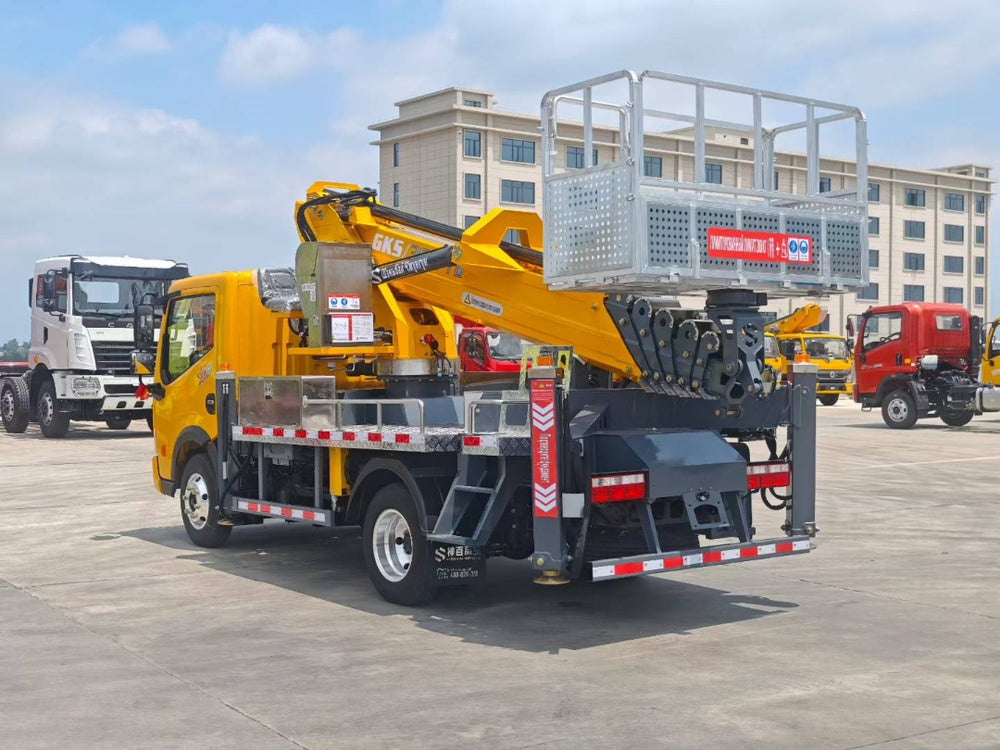

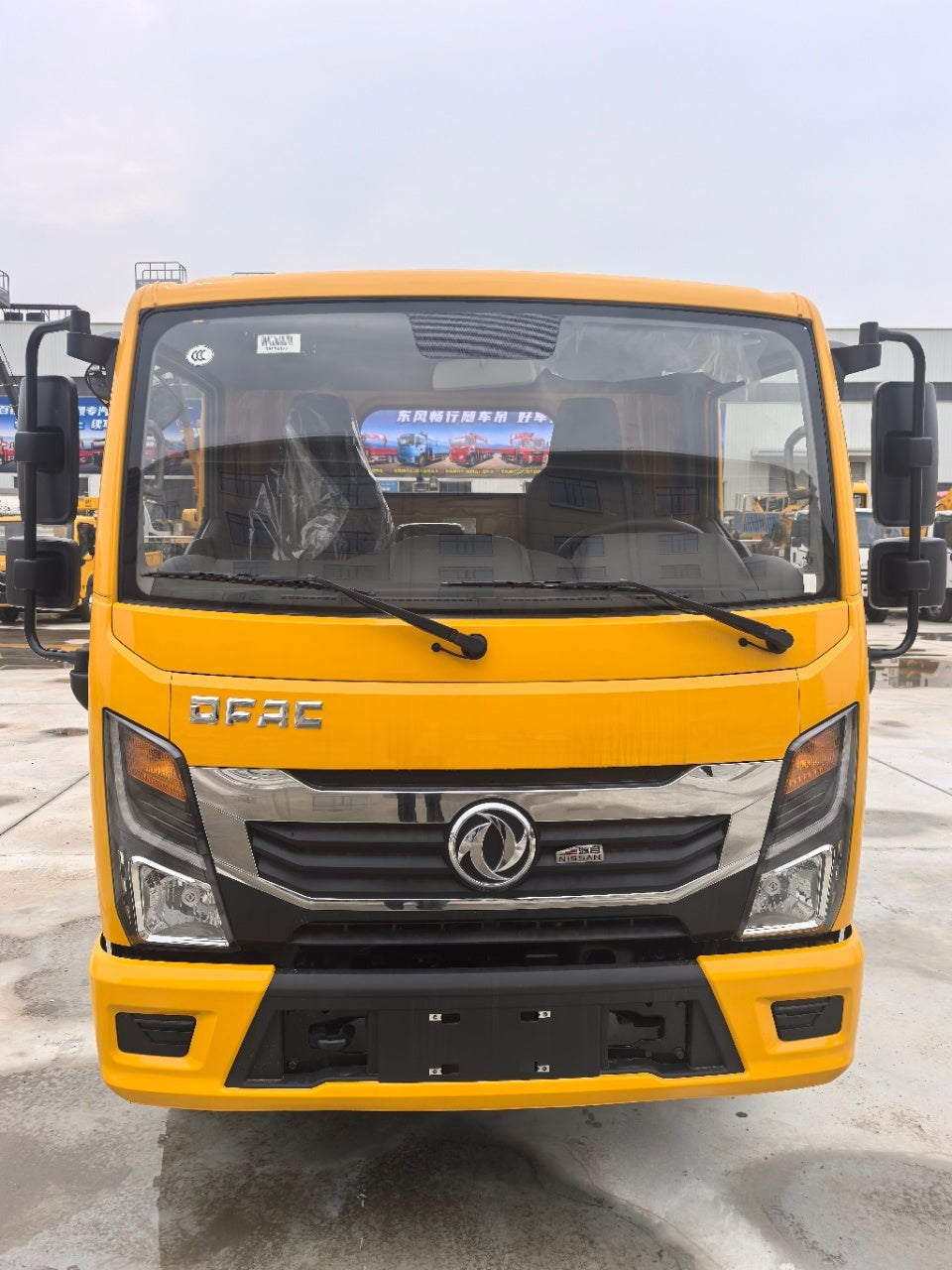

Dongfeng 28.3M Aerial Work Truck
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
Dongfeng |
|
Drive Type |
Left Hand Drive |
|
G.V.W |
4495KG |
|
Engine power |
150HP (110kw) |
|
Engine displacements |
2.5L(4-cylinder) |
|
Engine Model |
Q25A-150E60 |
|
Emission standard |
Euro 6 |
|
Transmission |
WLY 5-speed |
|
Wheelbases |
2950mm |
|
Overall dimensions |
5995mm*2200mm*2980mm |
|
Tires |
6.50R16 |
|
Brake |
Air brake |
|
Other configurations |

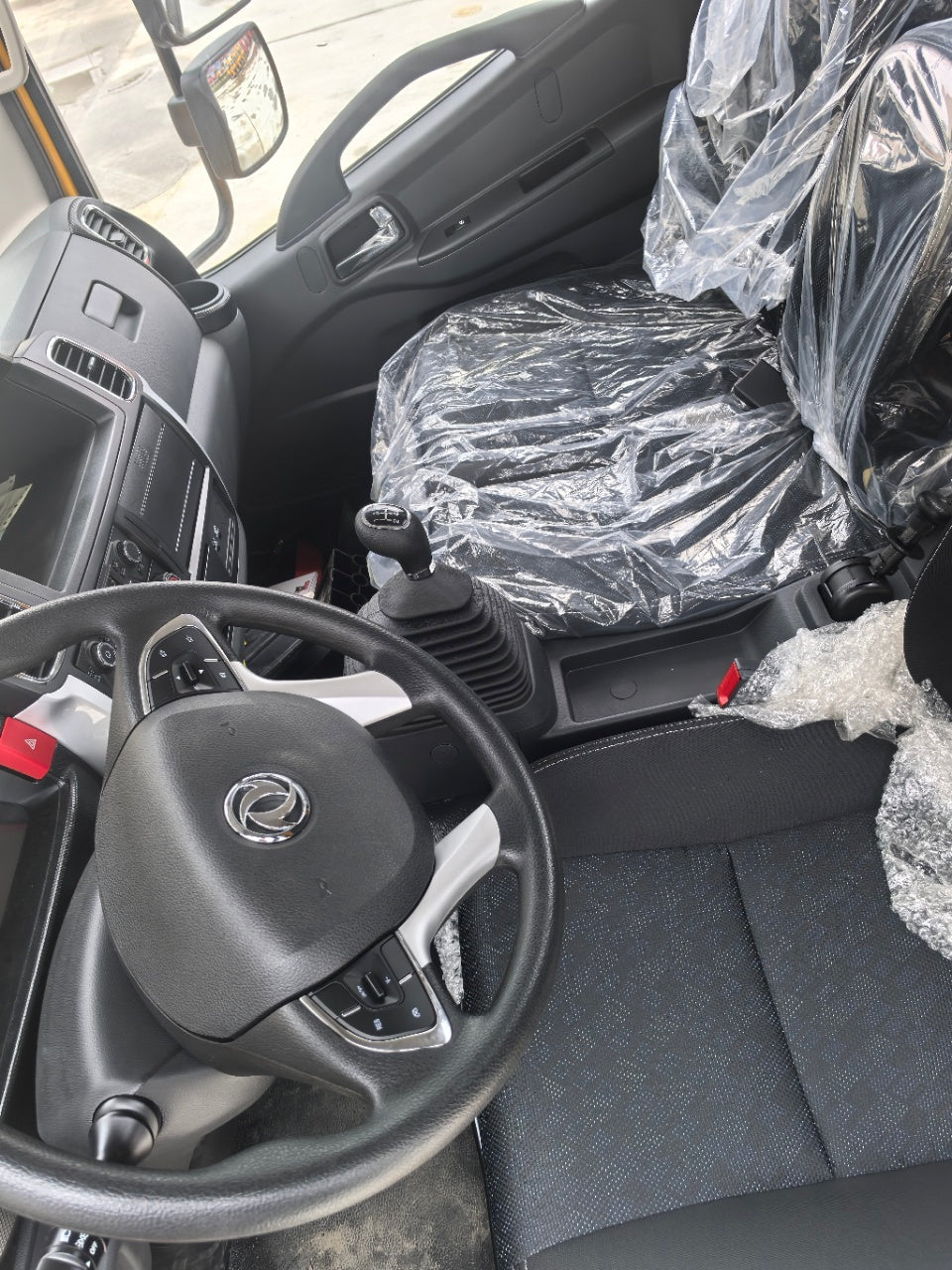

Electric doors and windows, air conditioning, central locking, multi-function steering wheel, 70-liter fuel tank. |
|
3. Upper Configuration |
|
|
Maximum working height |
28.3meters |
|
Maximum working radius |
16meters |
|
Platform rated load |
200KG |
|
Boom slewing angle |
360 degrees |
|
Platform size |
1800mm*700mm*1100mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
Maximal arm |

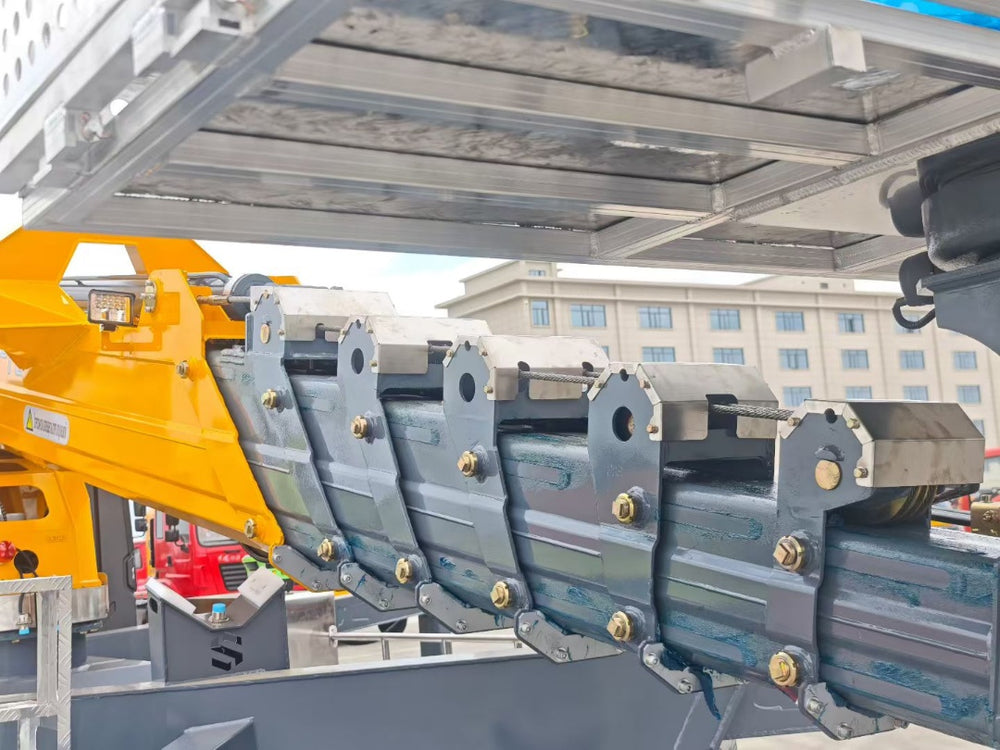

7-section arm, 6-section synchronised telescopic |
|
Operating system |
Domestic well-known electronic control system, equipped with wireless remote control, two-way operation |
|
Hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|

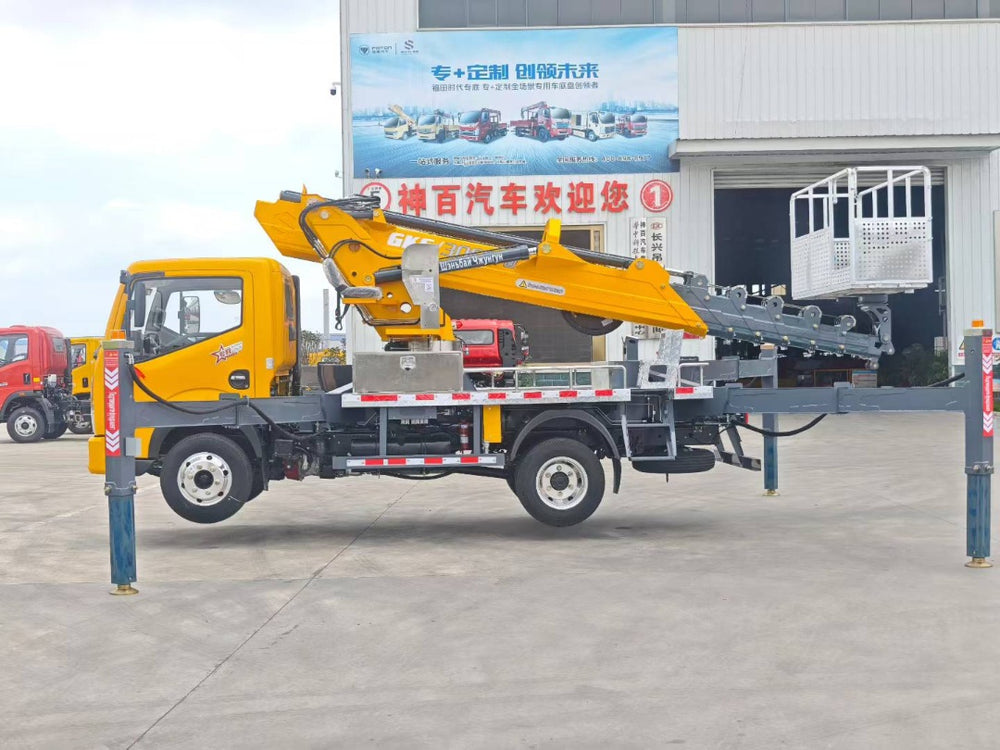

Hydraulic outriggers |
X-legs, 4 double-section legs, individually adjustable |
|
Aisle plate |
Aluminium non-slip walking board |
|
Safety device |
Upper and lower vehicle interlock, emergency power source, bi-directional hydraulic balancing valve |
