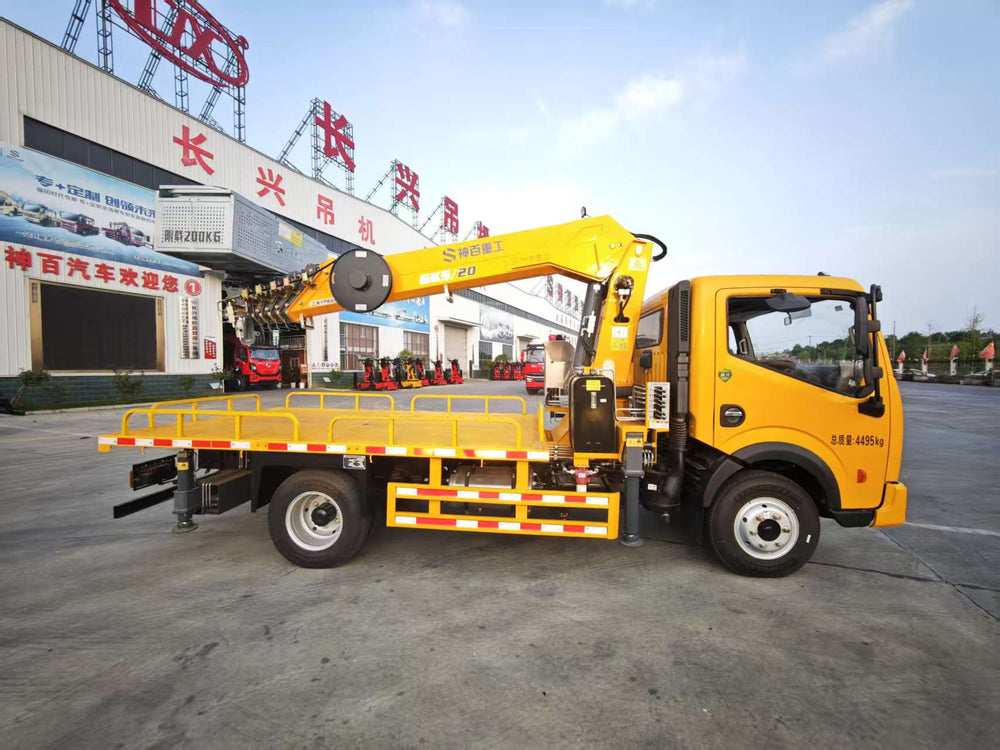

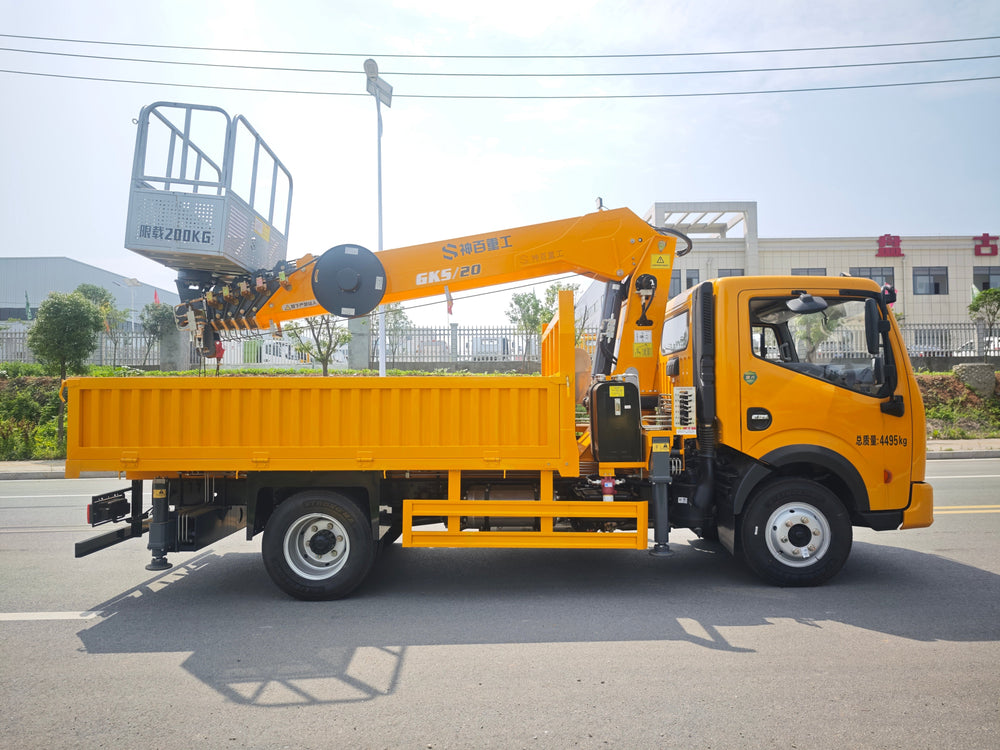

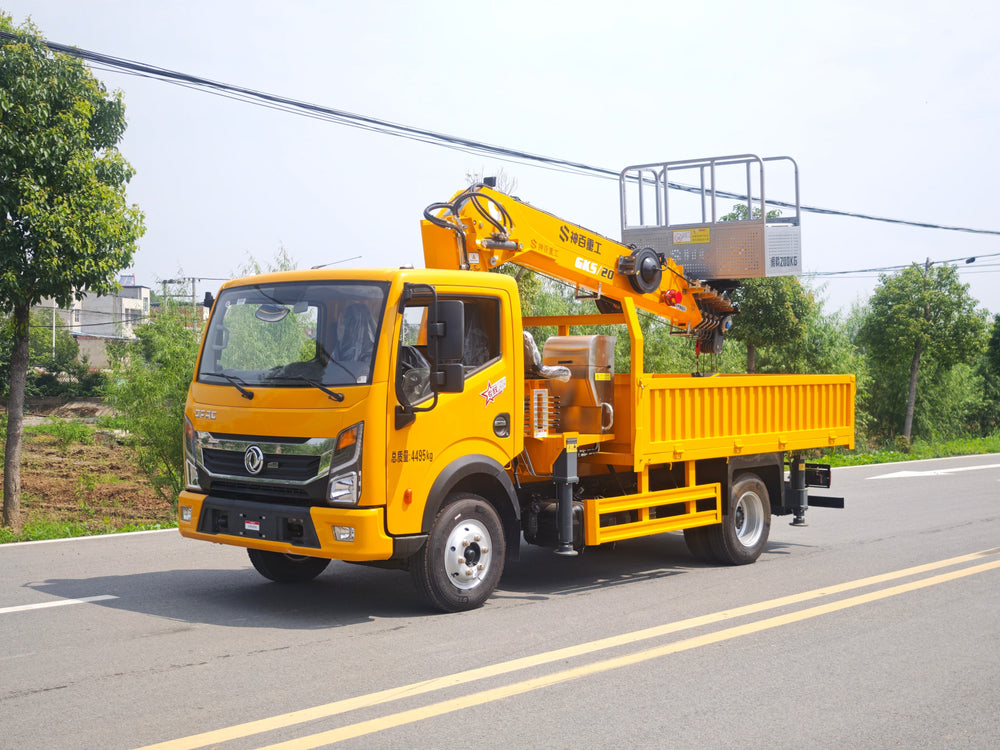

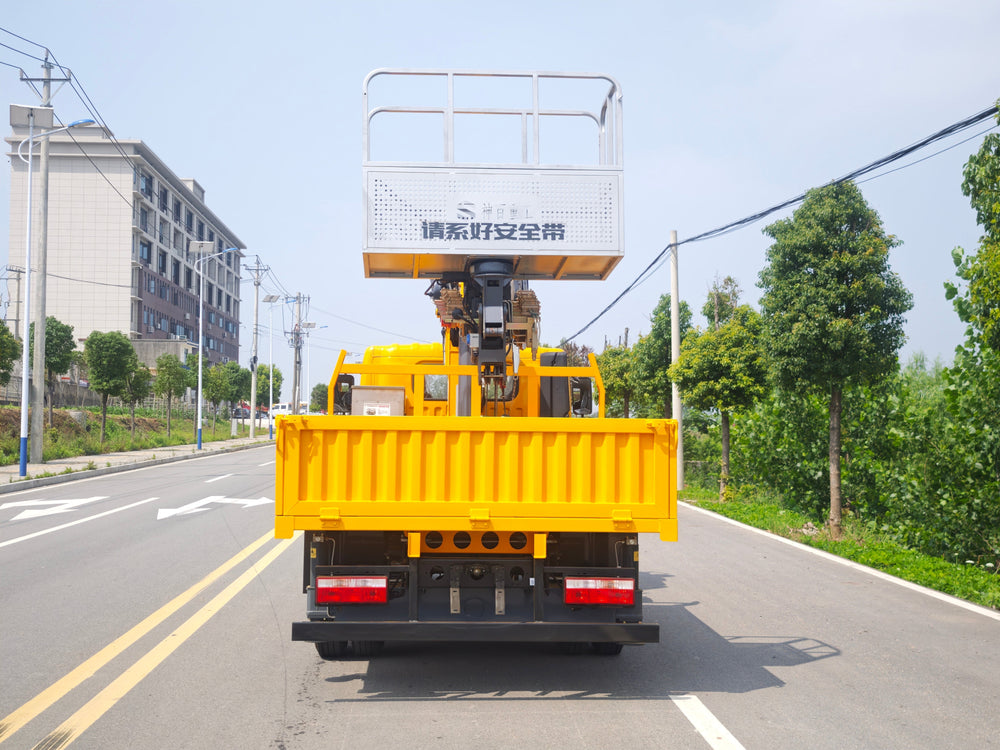

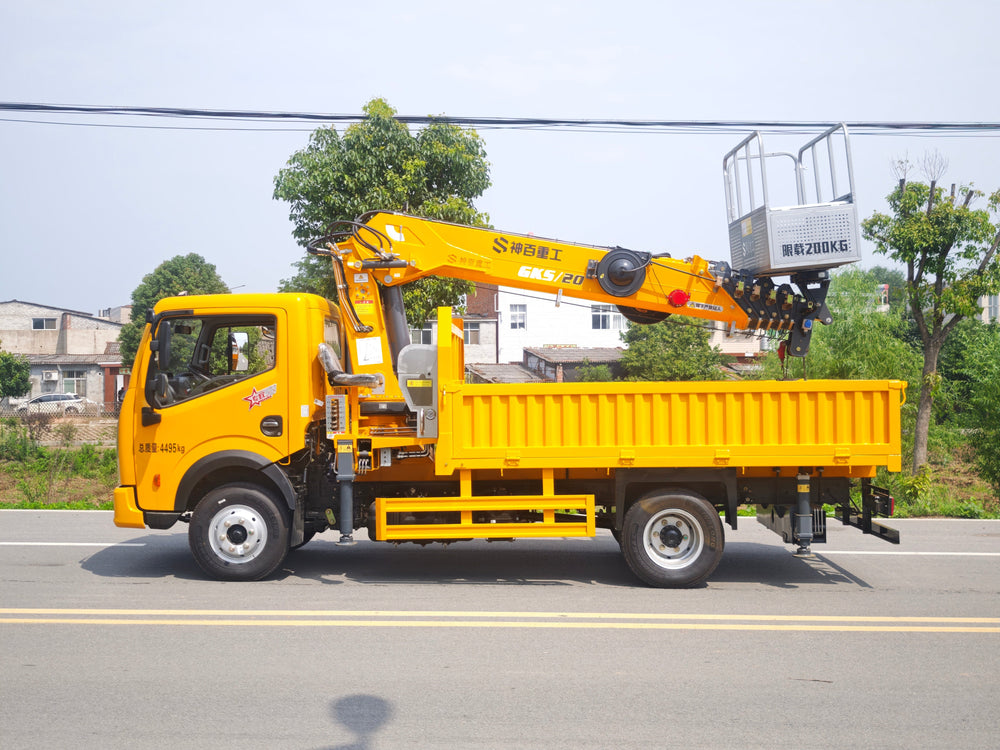

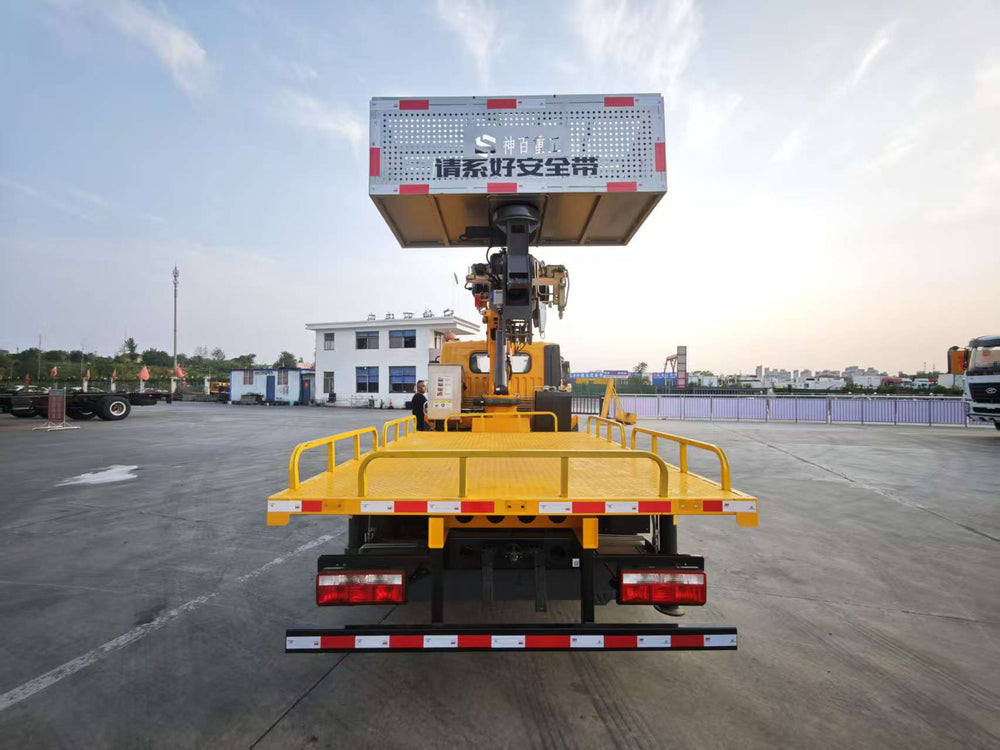

Dongfeng 20m 3-in-1 Truck-mounted Aerial Working Platform Truck
Multi-purpose aerial work truck for municipal maintenance, tree trimming and emergency rescue up to 20m working height.
1. Basic Vehicle Parameters
| Item | Parameter |
|---|---|
| Approval Model | ABC5045JGKE6 Truck-mounted Aerial Work Vehicle |
| Gross Vehicle Weight | 4495 kg |
| Curb Weight | 4300 kg |
| Transmission | 8-speed Gearbox with Synchronizer |
| Axle Quantity | 2 |
| Wheelbase | 3308 mm |
| Tire Spec | 7.00R16 8PR |
| Engine Model | YN25PLUS160B |
| Engine Manufacturer | Kunming Yunnei Power Co., Ltd. |
| Displacement | 2499 mL |
| Rated Power / Final Drive Ratio | 114 kW / 4.785 |

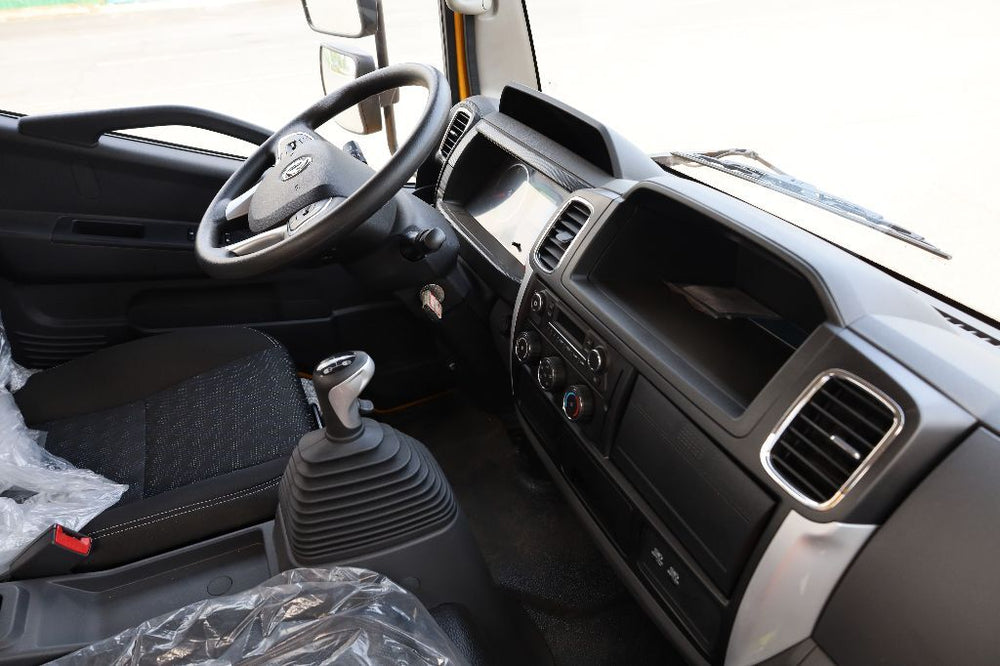

| Standard Chassis Configuration | D6 Single-row 1900 Cab, Double-layer Through Frame, 6T Rear Axle, ABS, Central Door Lock, Power Window, Air Conditioner |
| Outrigger Transverse Span | Front/Rear:5150mm / 4500mm |
| Outrigger Longitudinal Span | 3400 mm |
2. GKS20 Aerial Working Superstructure
| Item | Parameter |
|---|---|

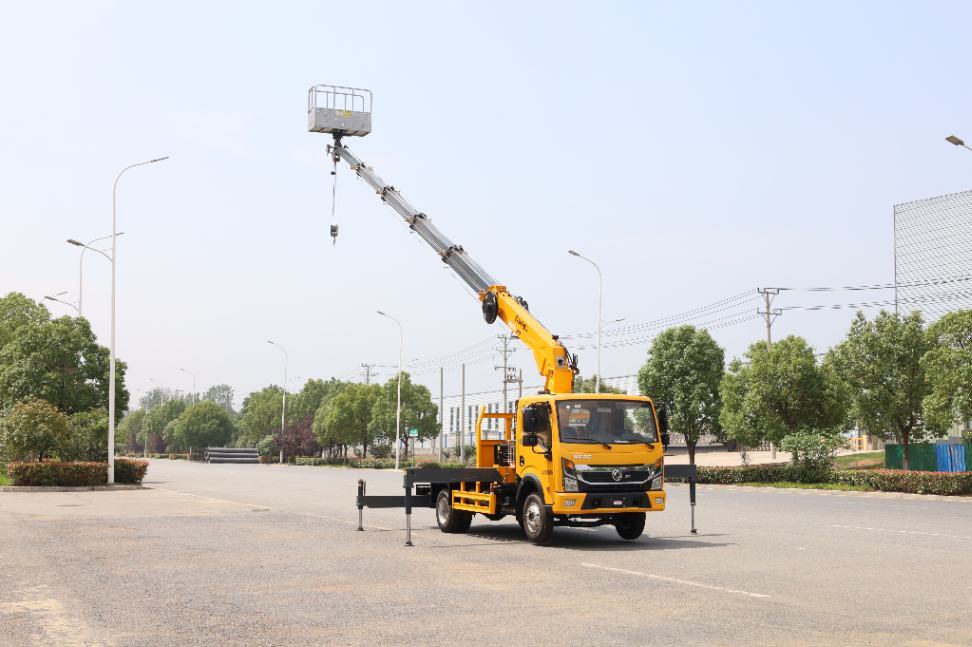

| Max Working Height | 19.2 m |
| Max Working Reach | 12 m |
| Rated Platform Load | 200 kg |
| Boom Slewing Range | 360° Full Rotation |

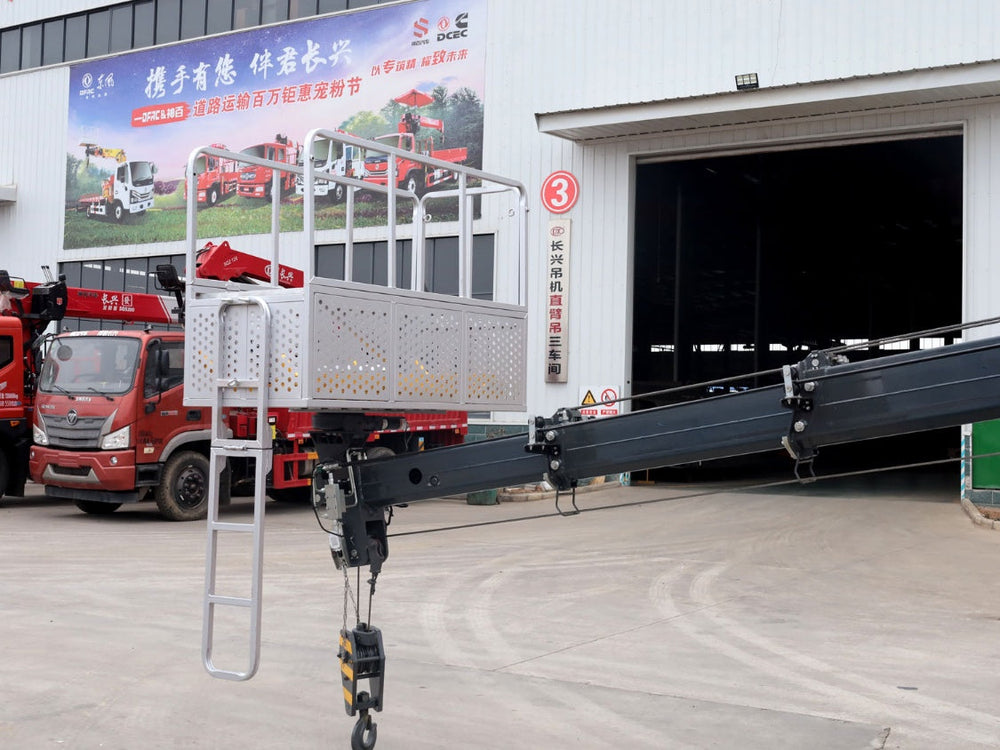

| Platform Dimension | 1500×700×1100 mm |
| Platform Rotation | ±180° |
| Boom Structure | 6-section boom, 5-section synchronous extension; spare steel cable for emergency lowering |

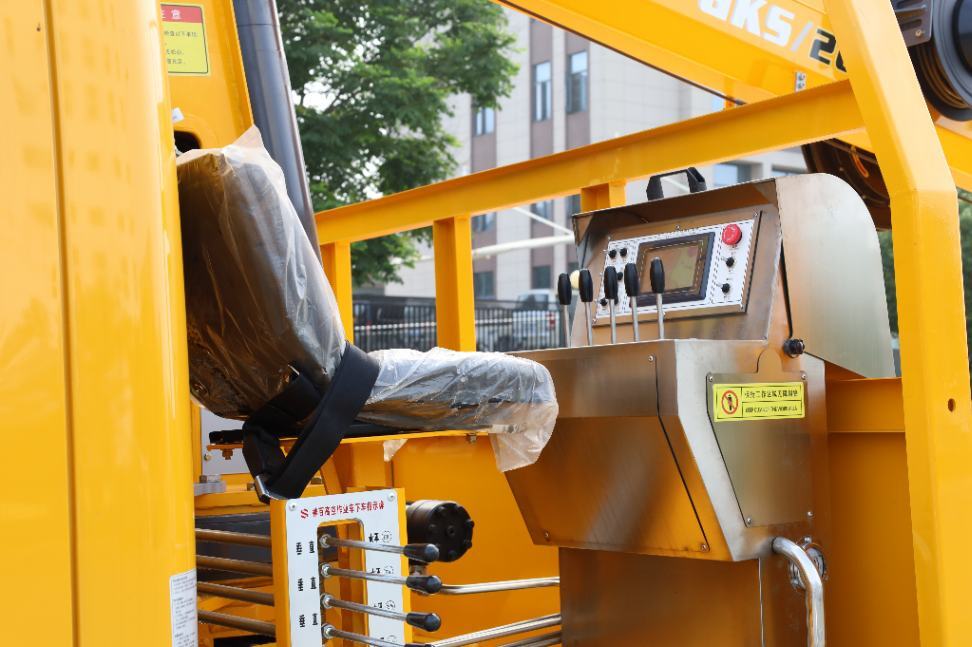

| Control System | Domestic Famous Electric Control, Wireless Remote + Central Control with Display Screen |
| Hydraulic System | Electro-hydraulic Proportional Valve, Stepless Speed Regulation |
| Outrigger | H-type, 4 Independently Adjustable Telescopic Legs |
| Safety Devices | Upper-lower Cabin Interlock, Limit Protection, Bi-directional Hydraulic Balance Valve |
3. Truck-mounted Crane Part
| Item | Parameter |
|---|---|
| Max Lifting Capacity | 5000 kg |
| Main Winch Rated Load | 5 T |
| Crane Boom | 6-section Internal Routing Boom |
| Max Lifting Height |
17 m |
| Slewing | 360° Unlimited Rotation |
| Hydraulic Pump | Single Pump |
4. Cargo Transport Section
| Item | Parameter |
|---|---|
| Ca |
3300×2200 mm |
| Operation Mode |
Central Manual Control + Intelligent Wireless Remote Control |
