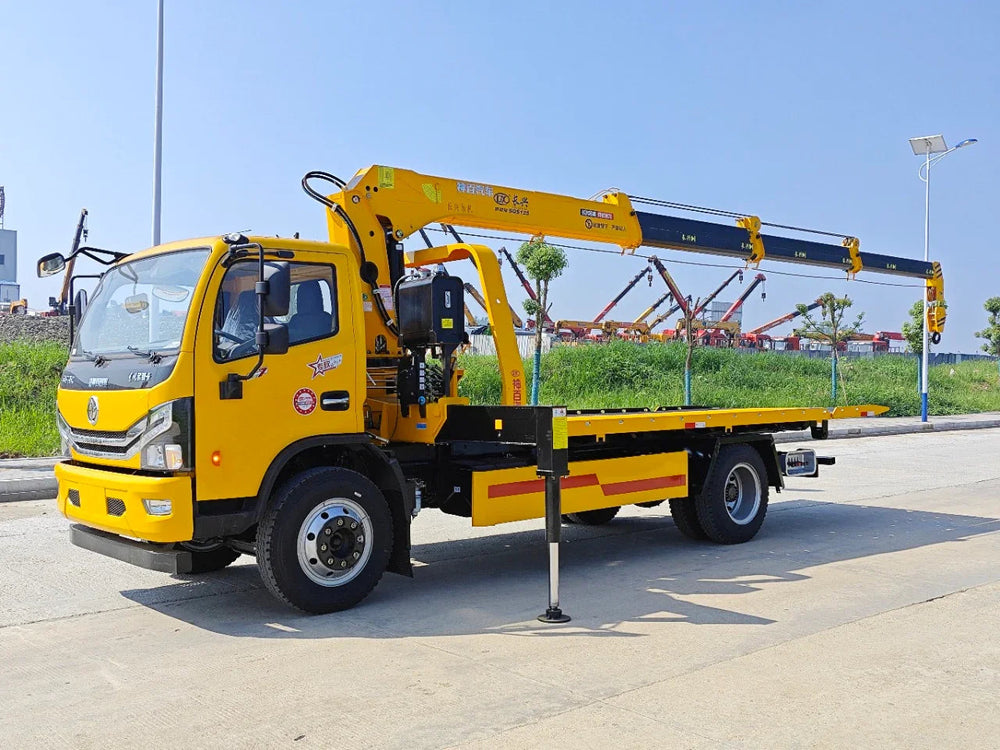

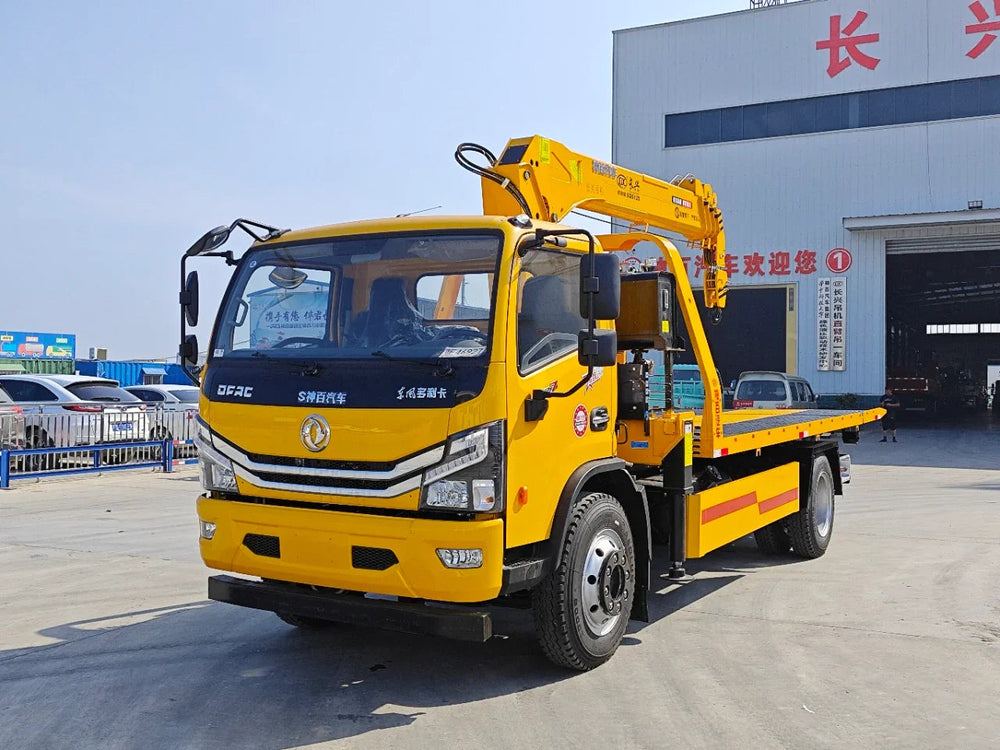

DFAC 4*2 Wrecker truck 5T Telescopic Boom Crane
|
Basic parameters of vehicle |
|
|
Chassis Brand |
DongFeng |
|
Drive Type |
Left Hand Drive 4*2 |
|
Vehicle Size(mm) |
8380*2550*3680 |
|
G.V.W(kg) |
11995 |
|
Engine Model |
YCY30165-60 |
|
Engine power |
165HP/121KW |
|
Displacement |
2.97L |
|
Emission Standard |
Euro 6 |
|
Wheelbase |
4400mm |
|
Cab Capacity |
2 |
|
Transmission |
Fast 8-speed Manual Transmission |
|
Rear Axle |
7T |
|
Tyre Size |
8.25R20 |
|
Superstructure configuration |
Adopts one-drive-two superstructure and sunken mounting technology to lower the center of gravity of the platform. Platform height from ground: 1.2 m Overall platform length: 5.6 m - 5.7 m Platform width: 2.55 m Rear flip section length: 1.2 m The platform is made of 5 mm anti-skid patterned plate, with 14 mm solid steel frame with holes. It adopts full-length detachable flip hinges at the rear. The slide rails are made of 10 mm manganese steel, and the flared ends are reinforced with 8 mm steel plates on the outer side. The platform bottom features reinforced grid structure and dense triangular diagonal supports. Equipped with 5-ton winch and 6-ton rear bracket arm, and Zhongmei multi-way hydraulic valve. Platform telescopic cylinder: 110 mm Lifting cylinder: 110 mm
|
