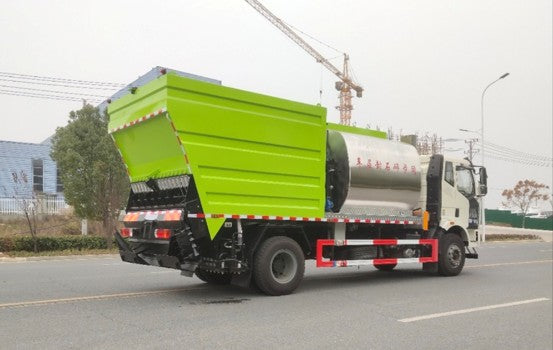

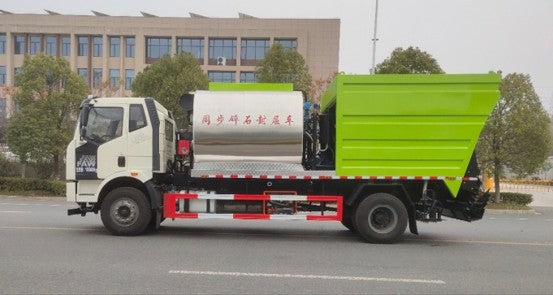

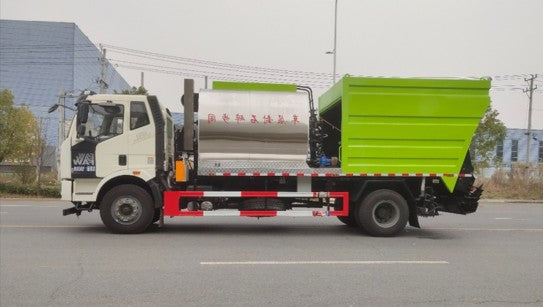

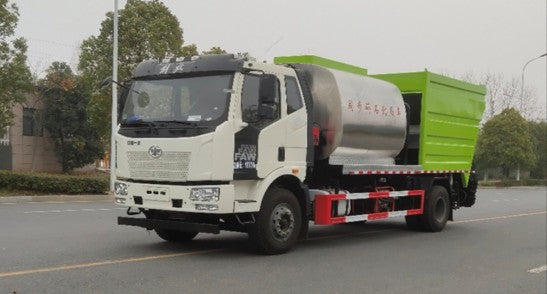

4X2 15m³Synchronous chip seal truck

2.Basic parameters of vehicle

Truck Brand

FAW

Drive Type

Left Hand Drive(4x2)

G.V.W(kg)

18000

Net Weight(kg)

11800

Engine Model

CA6DK1-24E5

Engine power

180KW/240HP

Displacement

5.7

Emission Standard

Euro 6

Wheelbase

5300mm

Cab Capacity

2

Transmission

Fast 8-speed gearbox

Vehicle dimensions

8400X2500X3530

rear axle

13T

Tyre Size

10.00R20

Upper configuration

Asphalt tank capacity

7 m³

Stone storage capacity

8 m³

Asphalt pump materials

The asphalt pump used is a QGB680 (high-viscosity asphalt pump, 680 liters/minute).

Stone storage silo types

V-shaped hopper (gravity-fed automatic discharge)

Insulation layer material

Rock wool insulation

Insulation layer thickness

50MM

Outer material

1.2MM stainless steel material

Spreading width

3750MM

Nozzle spacing

125MM

Asphalt spraying amount

0.2-3.5L/m³

Stone chip spreading width

Adjustable

Heating method

Automatic heating system with heat transfer oil + G20 burner (Riello, Italy). Temperature sensor: Omron speed sensor (Japan).

Hydraulic system

GPC4-50-25 (Tianjin) double gear pump, automatic reversing valve and relief valve, asphalt pump hydraulic drive motor model;

proportional valve.

Control method

The driver's cab features a touchscreen computer for intelligent control, powered by a German Infineon chip control system

(vehicle-mounted, high-temperature resistant, dustproof, shockproof, waterproof, and lightning-resistant, offering several times

higher reliability than a PLC); 30 intelligent asphalt spray nozzles (individually controlled), and 16 aggregate material gates;

dynamo

Honda 5.5 kW, or Green Field 7 kW, or 7 kW diesel generator, or optional hydraulic motor drive.

Spraying medium

Emulsified asphalt, hot asphalt, modified asphalt, etc.
