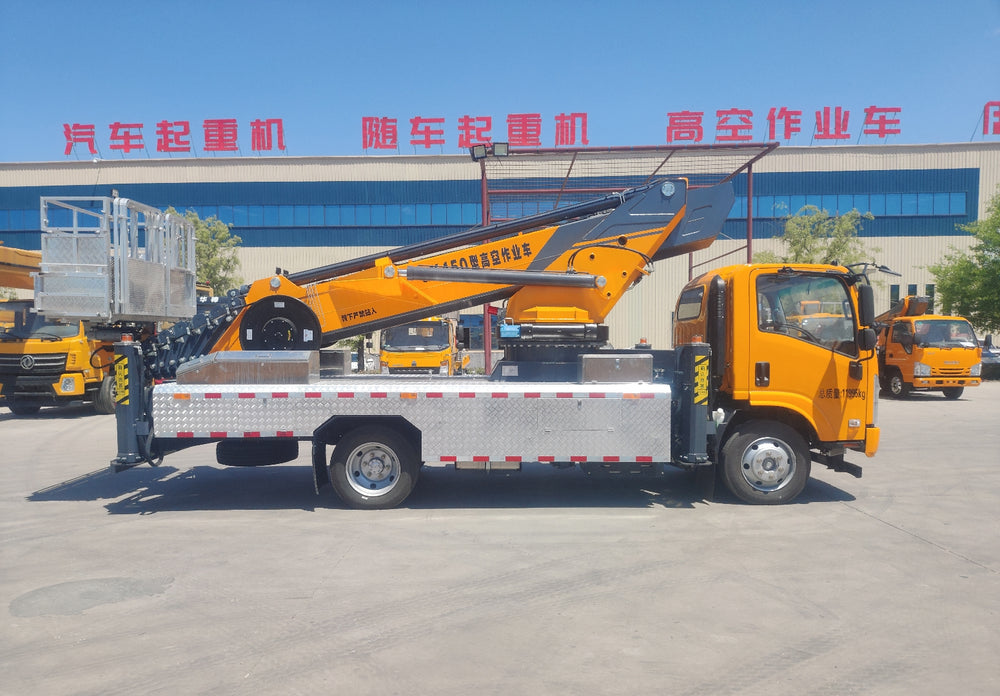

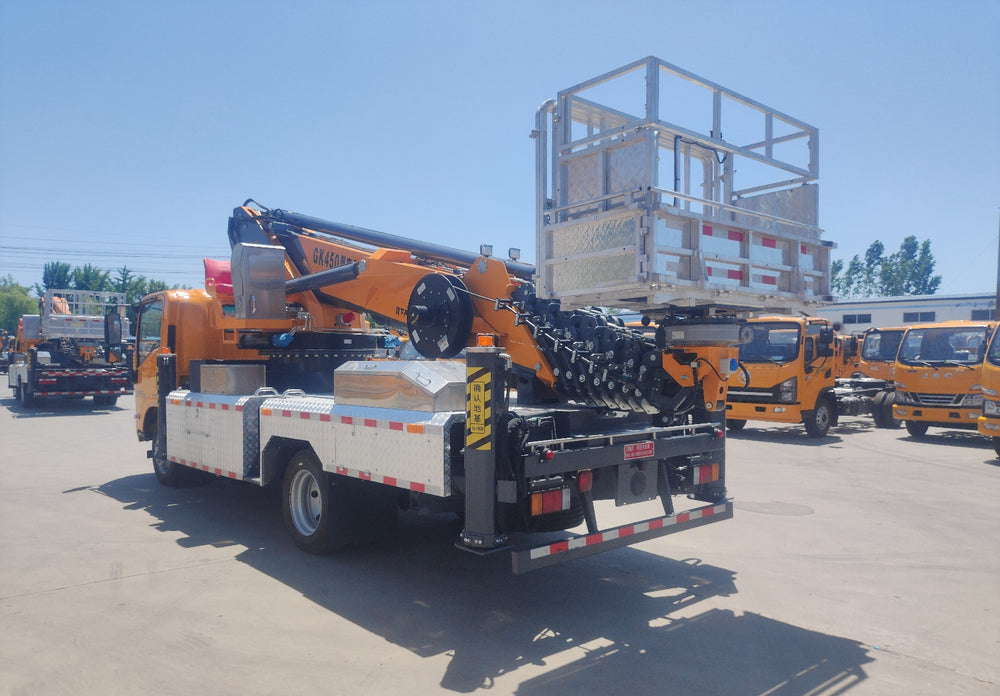

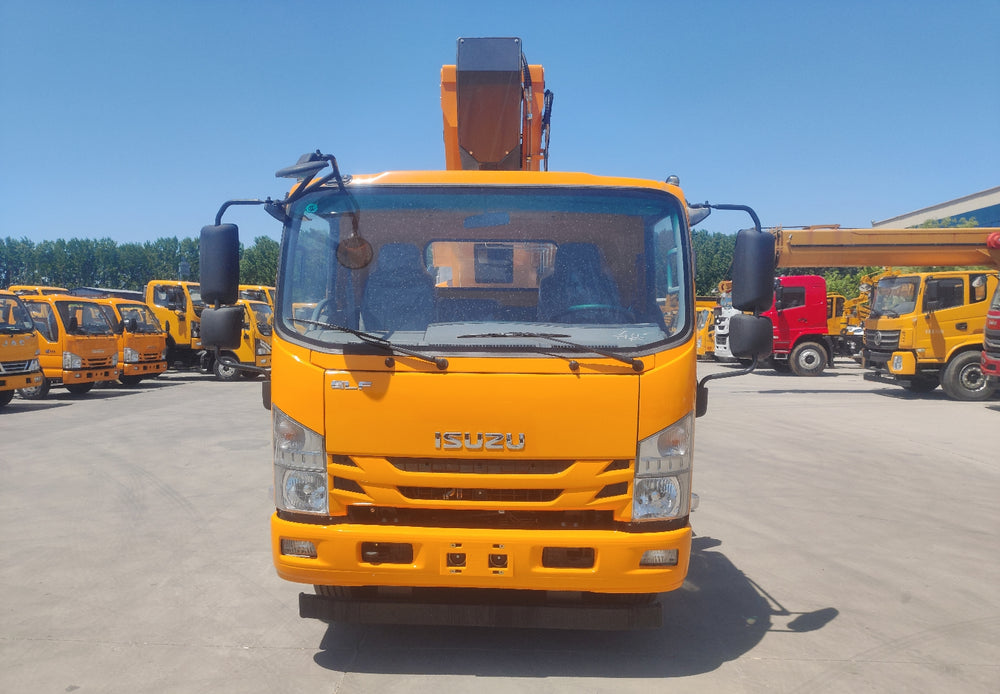

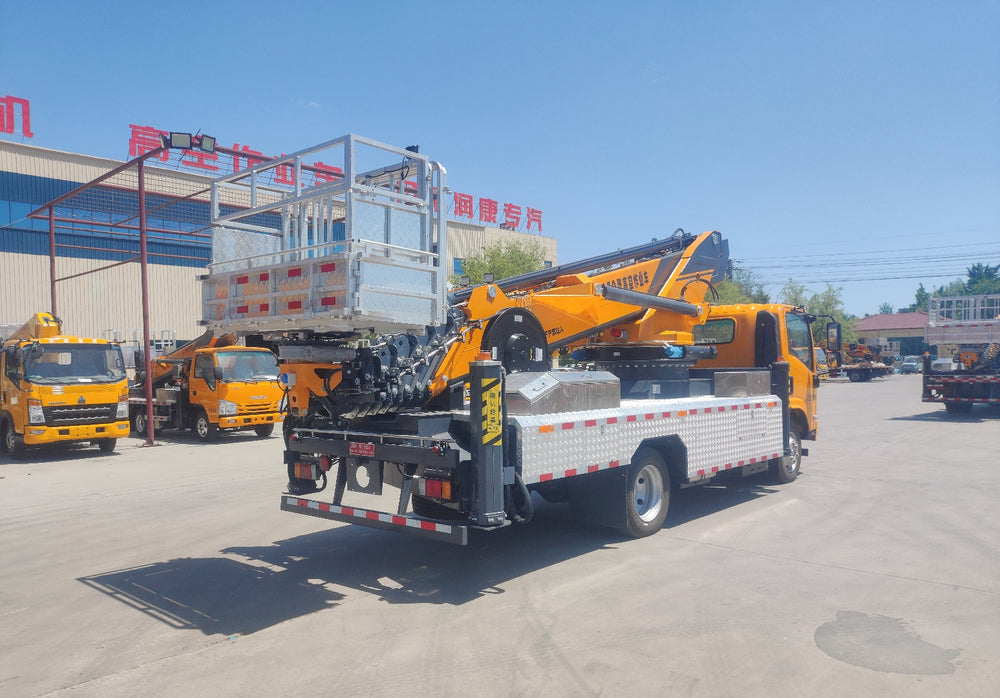

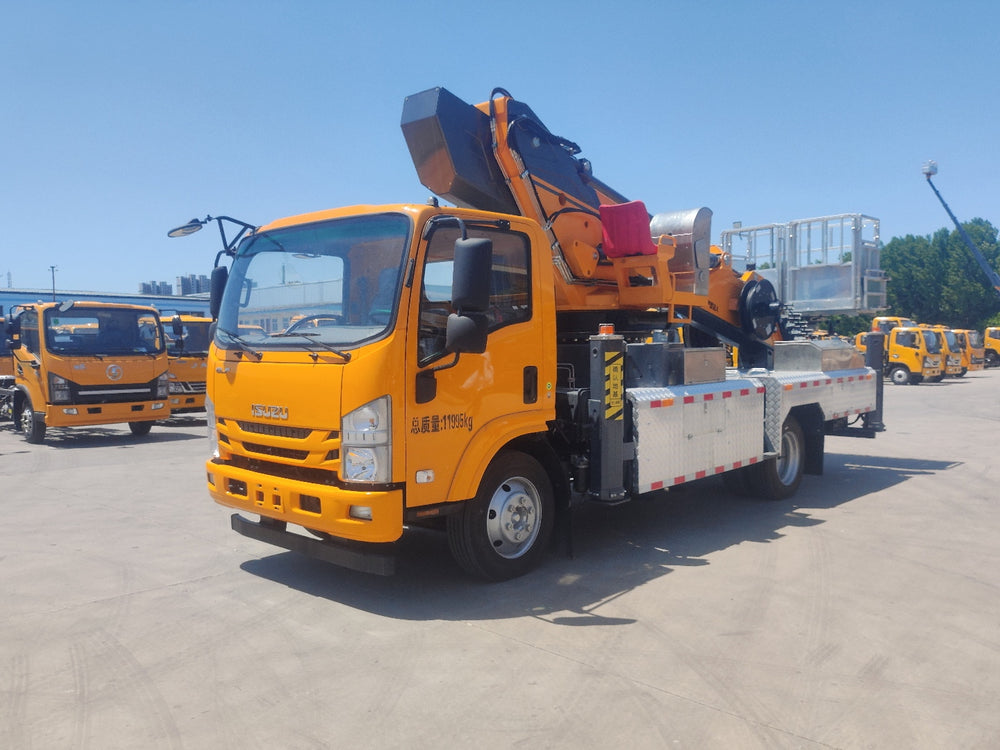

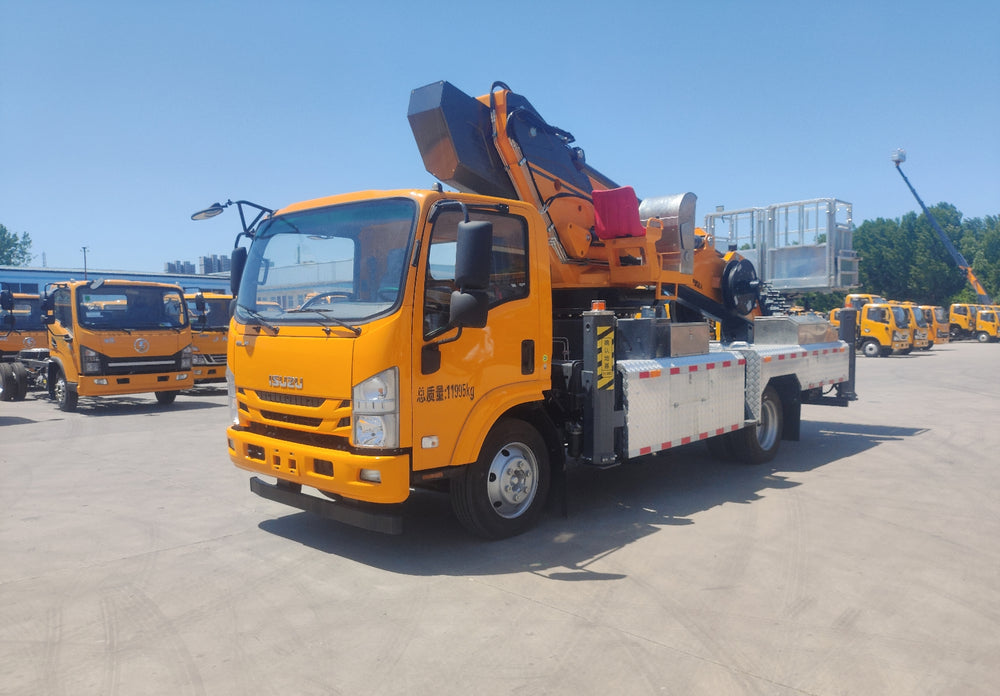

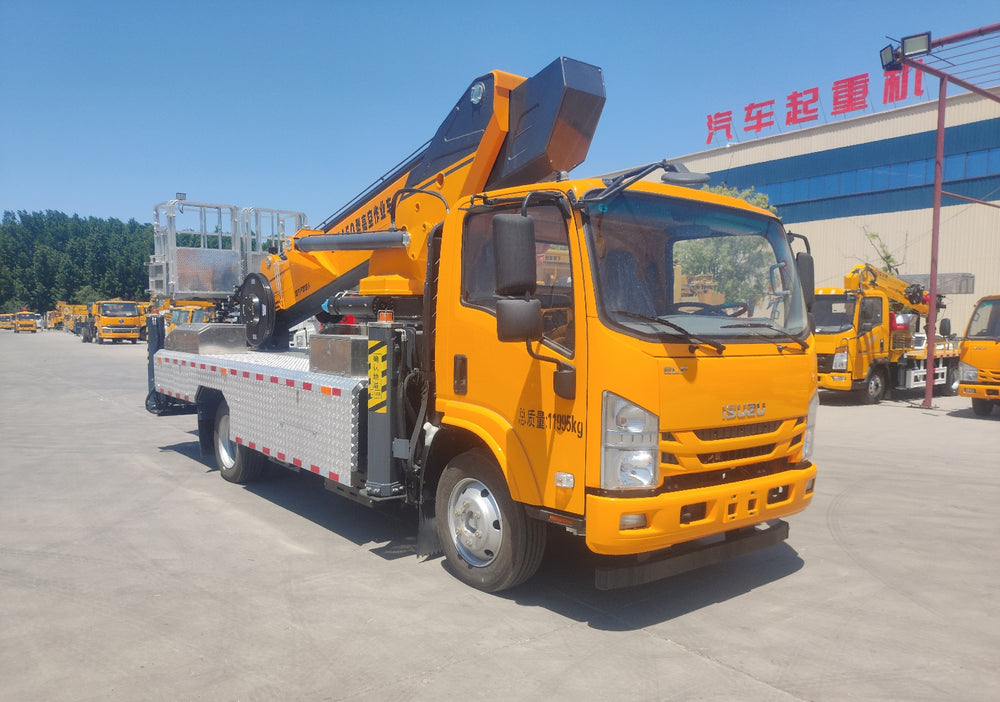

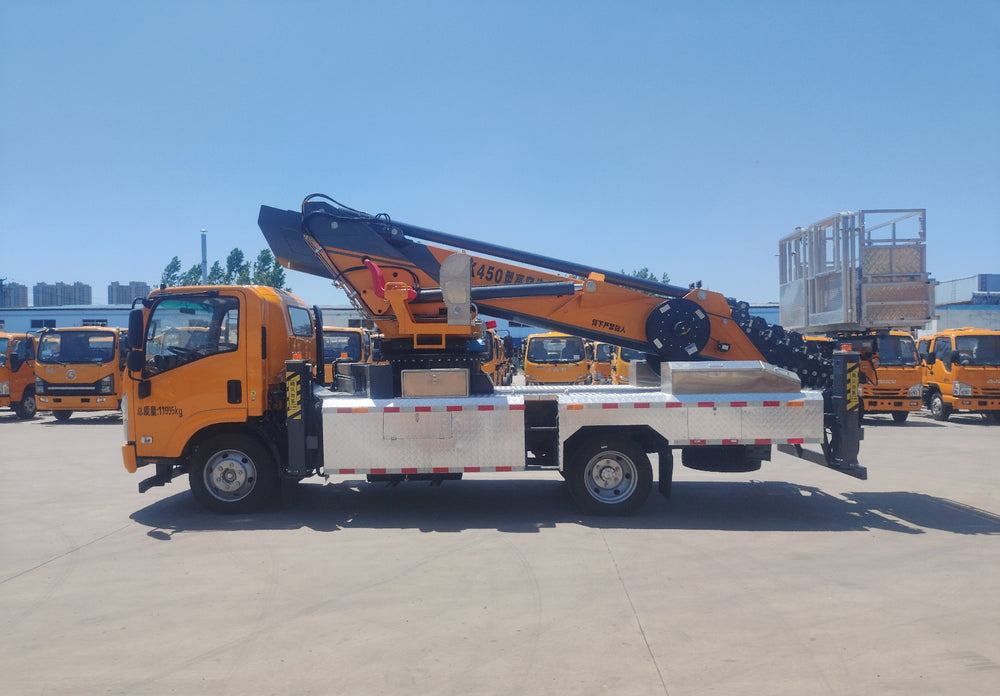

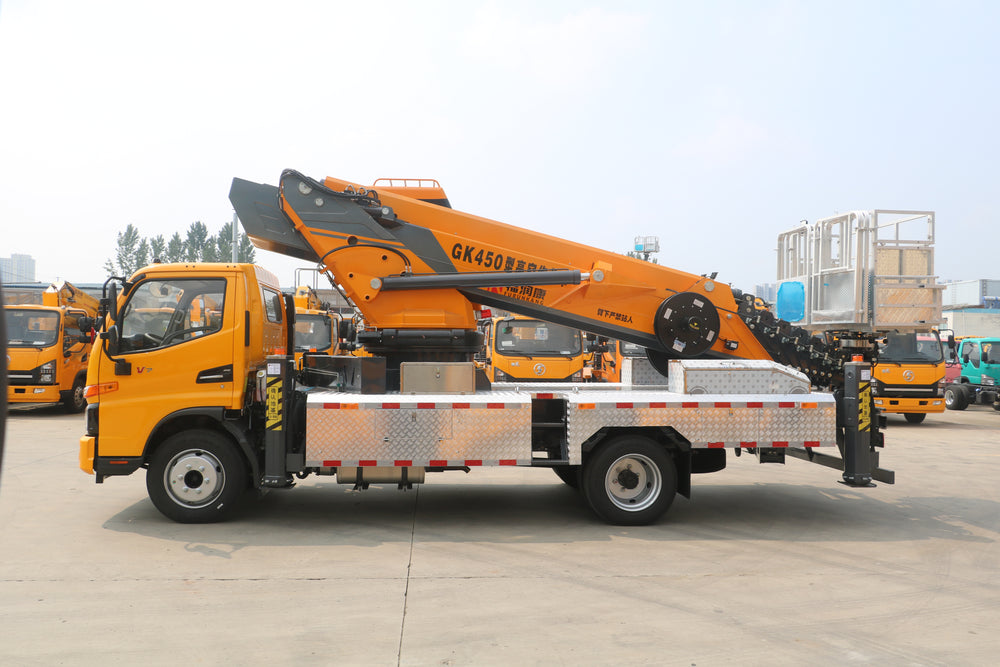

45M Aerial Work Truck
|
2.Basic parameters of vehicle |
|
|
Truck Brand |
ISUZU-100P |
|
Drive Type |
Left Hand Drive |
|
G.V.W |
11995KG |
|
Net weight |
11800KG |
|
Engine power |
190HP |
|
Engine Model |
4KH1-TCG61 |
|
Transmission |
Isuzu MLD-6Q -speed |
|
Wheelbases |
3765mm |
|
Overall dimensions |
8220mm*2450mm*3250mm |
|
Tires |
245/70R19.516PR |
|
Engine capacity |
5.2 |
|
Front and rear axles |
4T/7T |
|
3. Upper Configuration |
|
|
Maximum working height |
45meters |
|
Maximum working radius |
25meters |
|
Platform rated load |
300KG |
|
Boom slewing angle |
360 degrees |
|
Platform size |
3200mm*1000mm*1100mm |
|
Platform Slewing Range |
Infinite 360 degree rotation |
|
maximal arm |
9-section arm, 8-section synchronised telescopic |
|
operating system |
Domestic well-known electronic control system, equipped with wireless remote control, three-party operation |
|
hydraulic system |
Electro-hydraulic proportional valve, infinitely adjustable speed, with emergency power source |
|
Hydraulic outriggers |
X-shaped legs, 4 3-section legs, individually adjustable |
|
aisle plate |
4 extra large steel tool boxes, steel non-slip walkway |
|
safety device |
Interlocking for getting on and off the vehicle, limit protection, soft leg protection, tilt alarm, emergency power source, two-way hydraulic balance valve, weight detection protection, wind speed sensor protection, outrigger length protection |
|
4. Advantage: The first of its kind in China, with 9-section booms and a length of 45 meters l The whole vehicle is not overweight! Adopted Baosteel 960 high strength plate l 3-section outriggers, vertical and horizontal span 7700mm/7300mmMulti-section Boom design (9-section boom, 8 sections synchronously retractable), lifting height 45 meters l Dual lift cylinder design l 1.4 metre folding basket (2 metres unfolded) l Box frame l Overall vehicle height 3.25 metres l Working radius 25metres l Small radius of gyration, rotary table does not come out of the car body |
