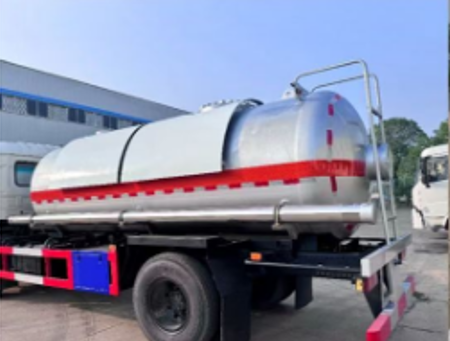

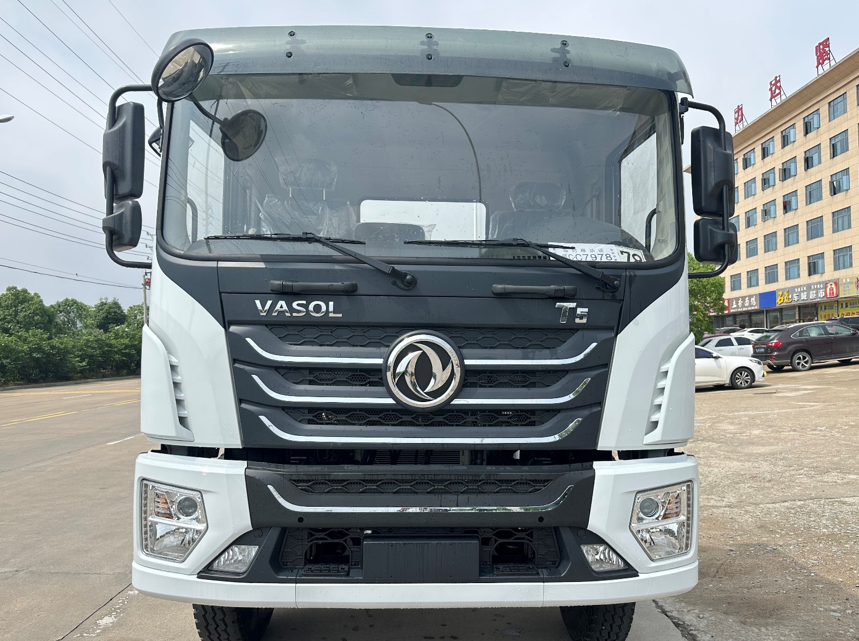

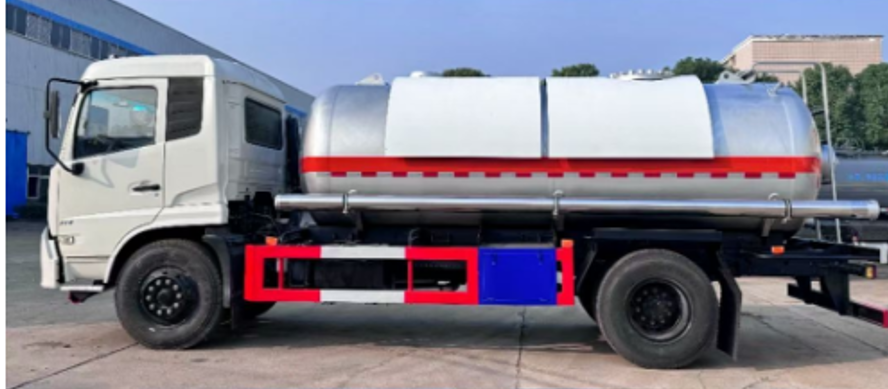

Dongfeng 4X2 13m³ LPG Truck

2.Basic parameters of vehicle

Truck Brand

Dengfeng

Drive Type

Left Hand Drive(6X4)

G.V.W(kg)

22000

Engine Model

YC6J220-33

Engine power

161KW/220HP

Displacement

6.49L

Emission Standard

Euro 2

Wheelbase

5600

Cab Capacity

2

Transmission

Fast 8-speed gearbox

Front/Rear Axle

5T/10T

Tyre Size

10.00R20

fuel tank capacity

220L

Vehicle Size(L*W*H) mm

9300*2500*3000

Tank volume

13m³

Tank material and configuration

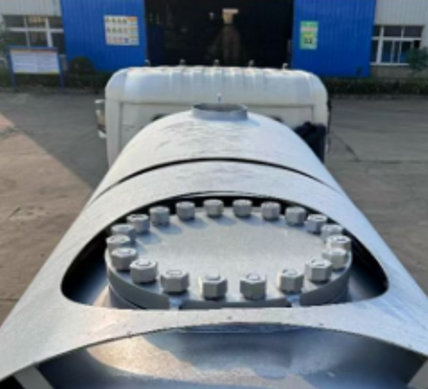

The tank has an effective volume of 13 cubic meters, is made of Q345R steel, has a 10mm cylindrical body, 10mm elliptical heads, a diameter of 1800mm, a pressure of 1.61Mpa, a single outlet, a safety valve, a thermometer, a pressure gauge, an emergency shut-off valve, a flange-connected ball valve, a float-type level gauge with a percentage dial, an iron mudguard, a fire extinguisher, and anti-static grounding tape.

Optional configuration

Standard configuration includes domestic flow meter, LPG pump, hydraulic motor, hydraulic oil cooler, safety backflow valve, pipeline safety valve, pipeline pressure gauge, thermometer, wheeled manipulator, shock-absorbing hose, check valve, gas reel, and 10-meter gas reel hose.
